K36 Inflatable Restraint Sensing and Diagnostic Module X1

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

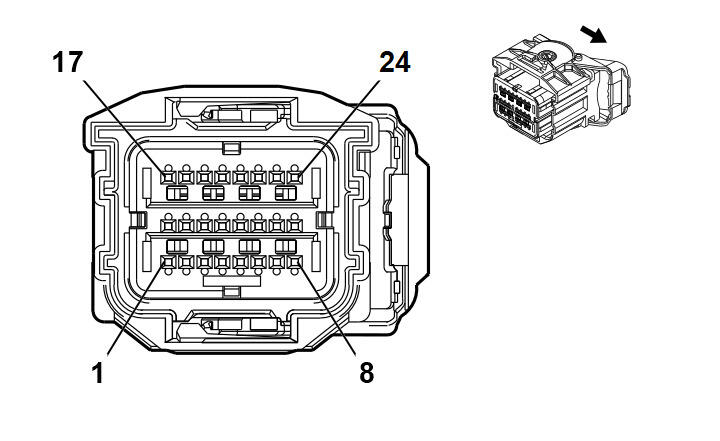

Connector Part Information

Harness Type: Instrument Panel Wiring Harness
OEM Connector: 13532226
Service Connector: 84753329
Description: 24-Way F 0.64 Series, Sealed (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	13587521	J-35616-64B (L-BU)	J-38125-11A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	OG/GN	3023	Steering Wheel Air Bag Stage 2 High Control	I
2	0.5	WH/OG	3022	Steering Wheel Air Bag Stage 2 Low Control	I
3	0.5	BN/OG	3020	Steering Wheel Air Bag Stage 1 Low Control	I
4	0.5	OG/VT	3021	Steering Wheel Air Bag Stage 1 High Control	I
5	0.5	YE/OG	3025	Passenger Instrument Panel Air Bag Stage 1 High Control	I
6	0.5	OG/WH	3024	Passenger Instrument Panel Air Bag Stage 1 Low Control	I
7	0.5	OG/VT	3026	Passenger Instrument Panel Air Bag Stage 2 Low Control	I
8	0.5	GY/OG	3027	Passenger Instrument Panel Air Bag Stage 2 High Control	I
9	0.5	RD/GN	4440	Battery Positive Voltage	I	-
10	0.35	VT/WH	5234	Passenger Seat Belt Indicator Control	I	AL0
11	0.35	BU	2307	Passenger Air Bag On Indicator Control	I	AL0
12	0.35	GN	2308	Passenger Air Bag Off Indicator Control	I	AL0
13 - 14	-	-	-	Not Occupied	-	-
15	0.35	GN	5060	Low Speed GMLAN Serial Data	I	-
16	-	-	-	Not Occupied	-	-
17	0.35	WH/BU	5986	Serial Data Communication Enable	I	-
18	0.35	BU/YE	6105	High Speed GMLAN Serial Data [+] 2	I	-
19	0.5	BK/WH	1251	Signal Ground	I	-
20	0.35	WH	6106	High Speed GMLAN Serial Data [-] 2	I	-
21	0.5	OG/BU	3078	Driver Knee Air Bag High Control	I
22	0.5	GY/OG	3079	Driver Knee Air Bag Low Control	I
23 - 24	-	-	-	Not Occupied	-	-
