Sunroof Window Motor Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

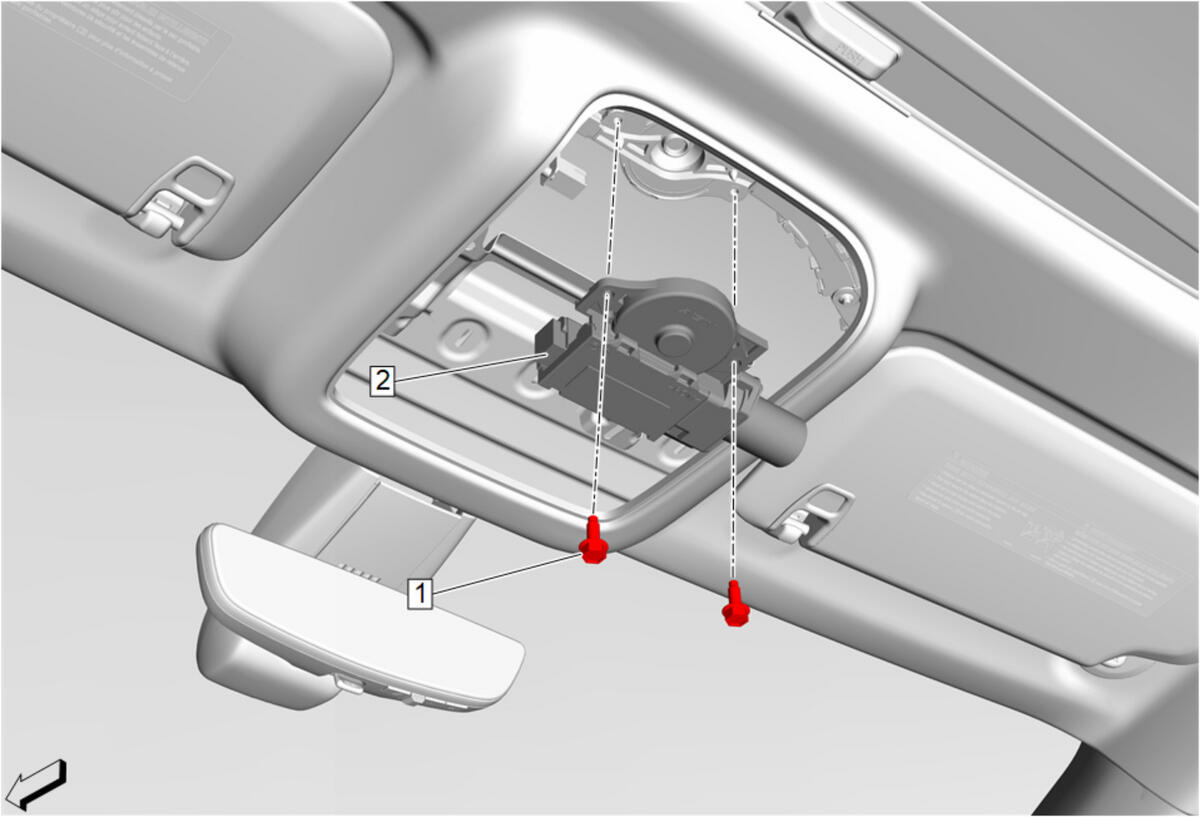

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Roof Console Replacement
1	Sunroof Actuator Motor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 5.4 N.m (48 lb in)
2	Sunroof Window Motor Procedure Disconnect the electrical connector. Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization

Callout

Component Name

Preliminary Procedure
Roof Console Replacement

Sunroof Actuator Motor Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
5.4 N.m (48 lb in)

Sunroof Window Motor

Procedure

Disconnect the electrical connector.
Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization
