Roof Console Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

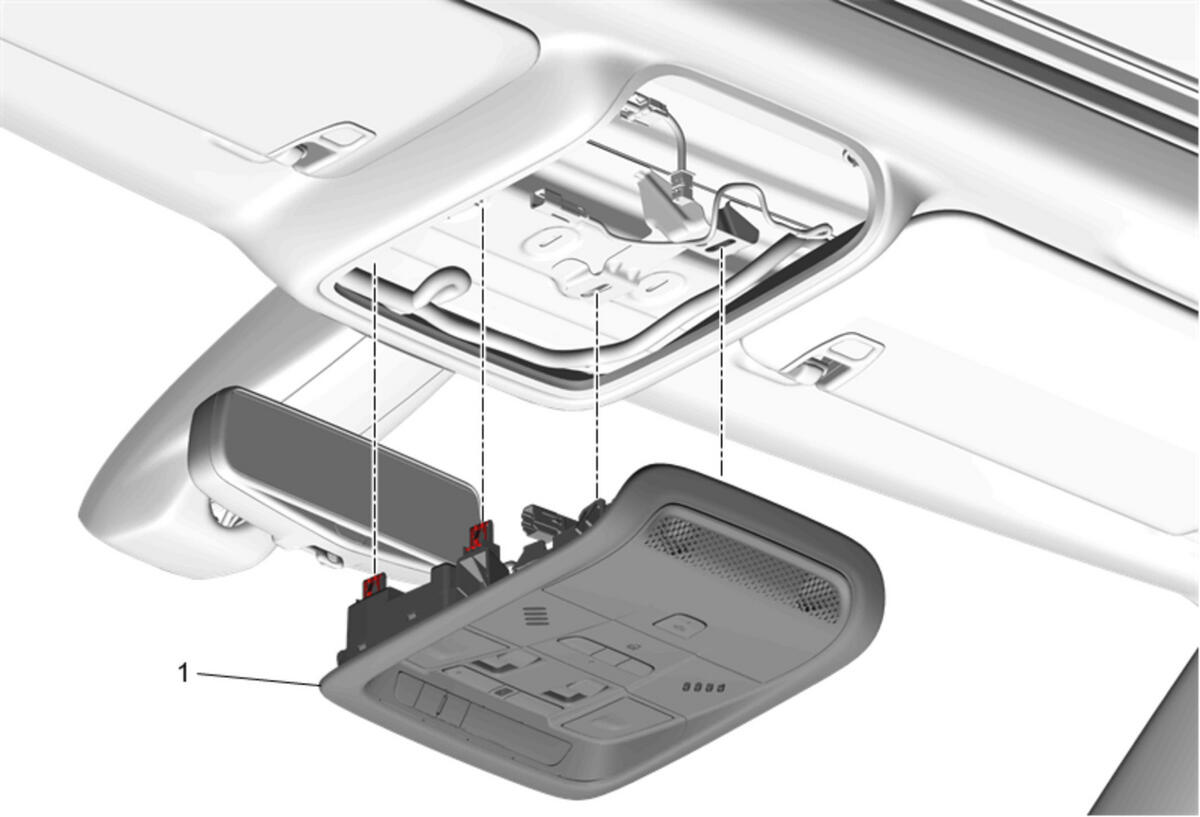

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Roof Console CAUTION: Do not exert downward force at the forward or rearward edge of the roof console assembly as irreversible damage will occur. Procedure Grasp the roof console on both sides in line with the microphone and OnStar buttons and pull down to disengage the clips. Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Roof Console

CAUTION:

Do not exert downward force at the forward or rearward edge of the roof console assembly as irreversible damage will occur.

Procedure

Grasp the roof console on both sides in line with the microphone and OnStar buttons and pull down to disengage the clips.
Disconnect all electrical connectors.
Transfer components as necessary.
