Instrument Cluster Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

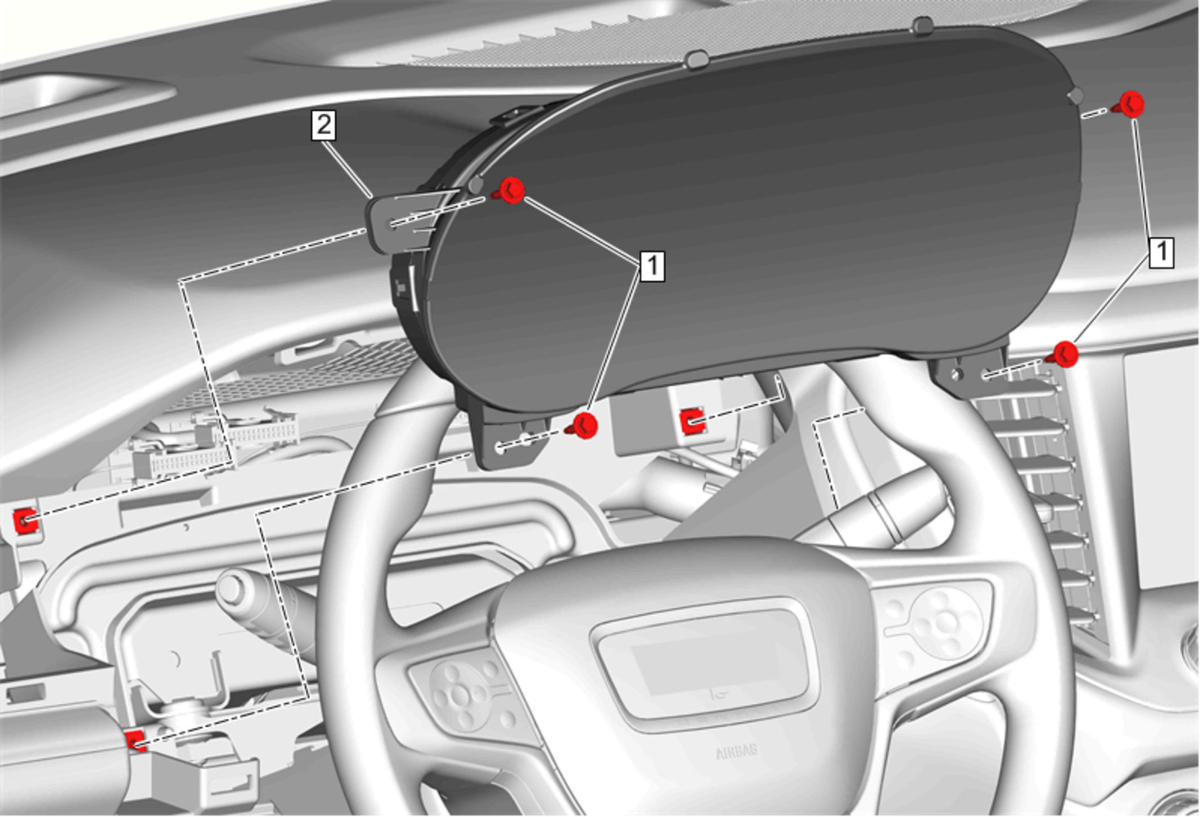

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Instrument Panel Cluster Trim Plate Replacement
1	Instrument Cluster Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster NOTE: The instrument cluster with IOR option will have to be programmed by a USB port located in the back of the cluster. Procedure Disconnect the electrical connectors. If installing a NEW instrument cluster, program the cluster before installation. Control Module References

Callout

Component Name

Preliminary Procedure
Instrument Panel Cluster Trim Plate Replacement

Instrument Cluster Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Cluster

NOTE:

The instrument cluster with IOR option will have to be programmed by a USB port located in the back of the cluster.

Procedure

Disconnect the electrical connectors.
If installing a NEW instrument cluster, program the cluster before installation. Control Module References
