Instrument Panel Cluster Trim Plate Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

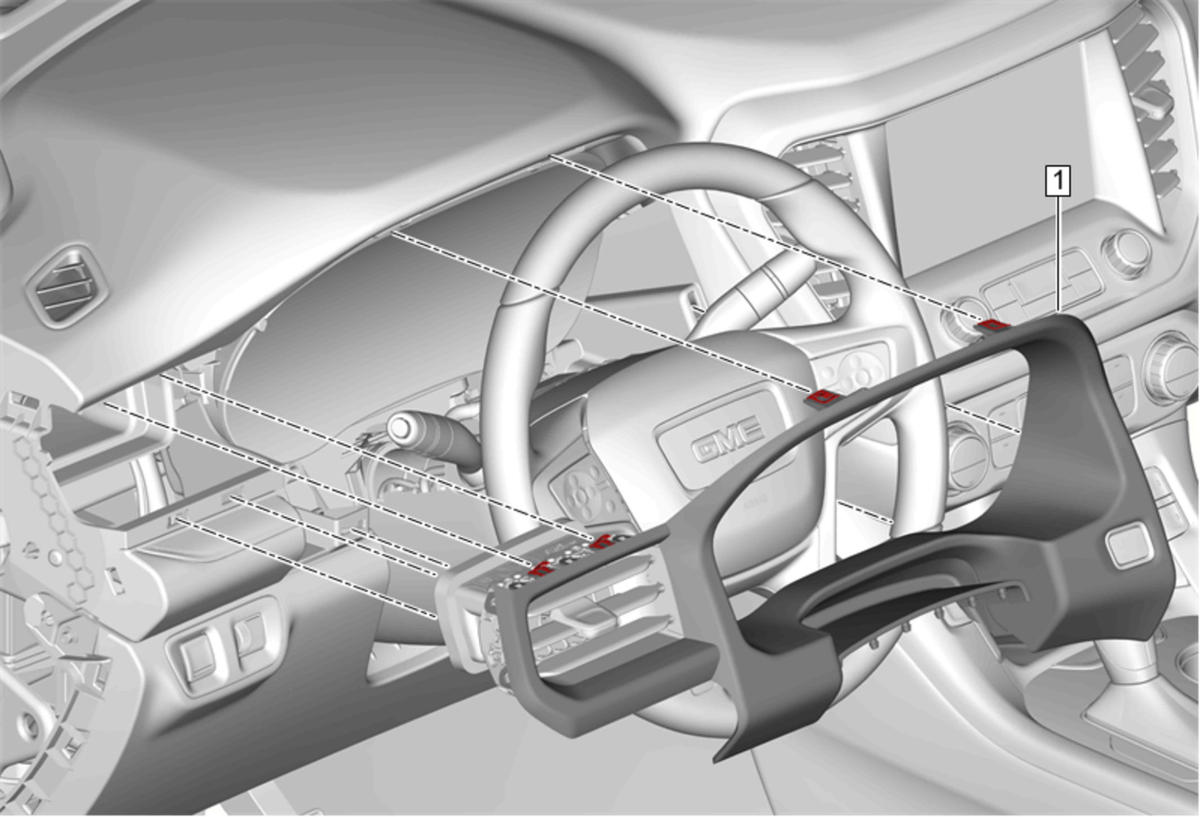

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Steering Column Upper Trim Cover Replacement Instrument Panel Outer Trim Cover Replacement
1	Instrument Panel Cluster Trim Plate Procedure Use a flat bladed plastic trim tool. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Steering Column Upper Trim Cover Replacement
Instrument Panel Outer Trim Cover Replacement

Instrument Panel Cluster Trim Plate

Procedure

Use a flat bladed plastic trim tool.
Disconnect the electrical connector.
Transfer components as necessary.
