Steering Column Upper Trim Cover Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

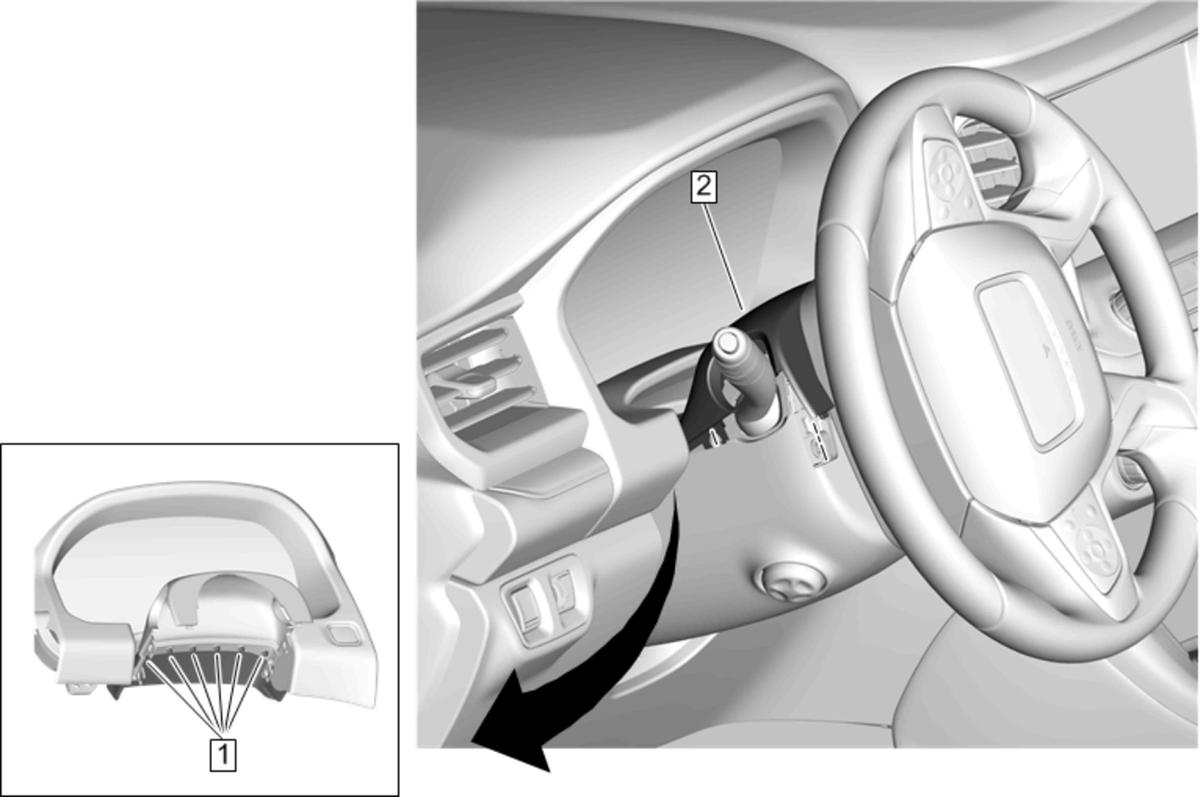

Callout	Component Name
1	Instrument Panel Steering Column Opening Closeout
2	Steering Column Upper Trim Cover Procedure Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover. Reposition the upper trim cover to access and release the tabs on the bottom side of the steering column housing cover.

Callout

Component Name

Instrument Panel Steering Column Opening Closeout

Steering Column Upper Trim Cover

Procedure

Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover.
Reposition the upper trim cover to access and release the tabs on the bottom side of the steering column housing cover.
