Front Floor Panel Carpet Replacement - Right Side

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

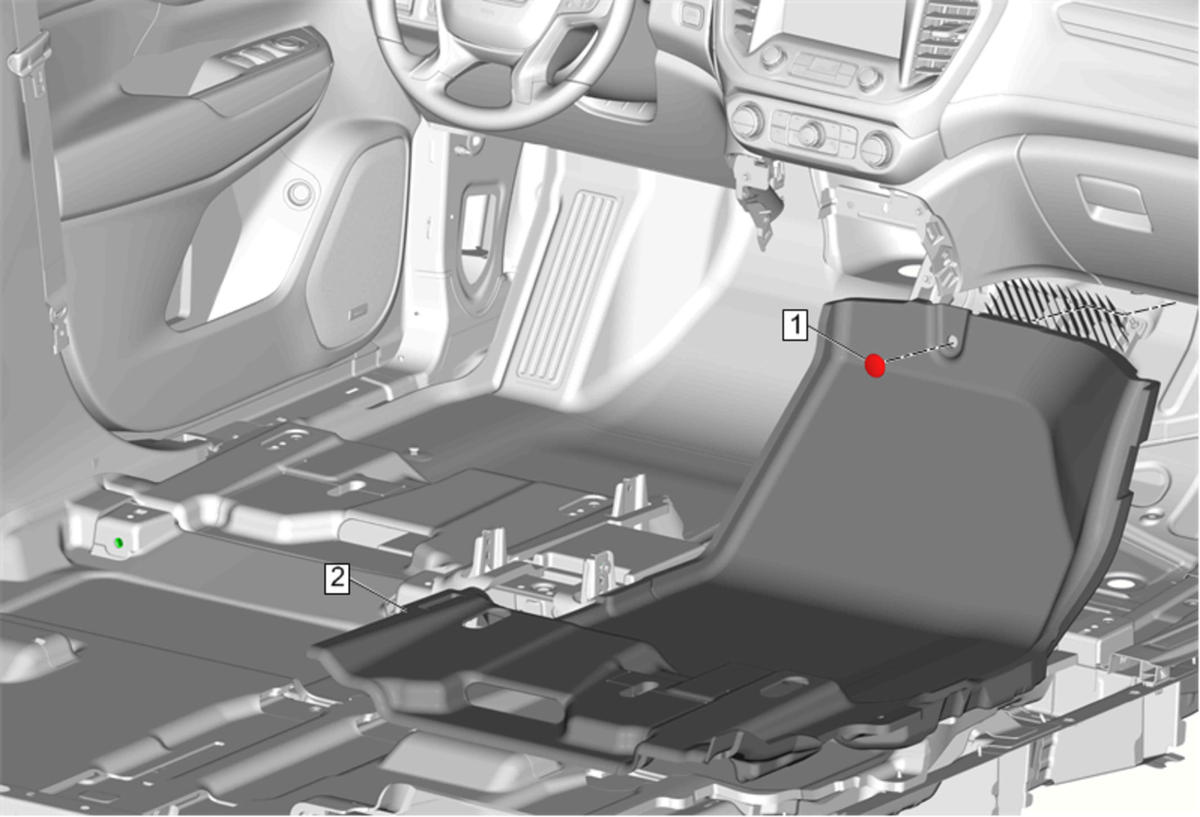

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Seat Removal and Installation Center Pillar Lower Trim Panel Replacement Front Floor Console Removal and Installation
1	Floor Carpet Retainer Button Procedure Use a plastic flat-bladed tool to aid in the removal of the push-in retainer.
2	Front Floor Panel Carpet - Right Side

Callout

Component Name

Preliminary Procedures

Front Seat Removal and Installation
Center Pillar Lower Trim Panel Replacement
Front Floor Console Removal and Installation

Floor Carpet Retainer Button
Procedure
Use a plastic flat-bladed tool to aid in the removal of the push-in retainer.

Front Floor Panel Carpet - Right Side
