Front Seat Removal and Installation

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

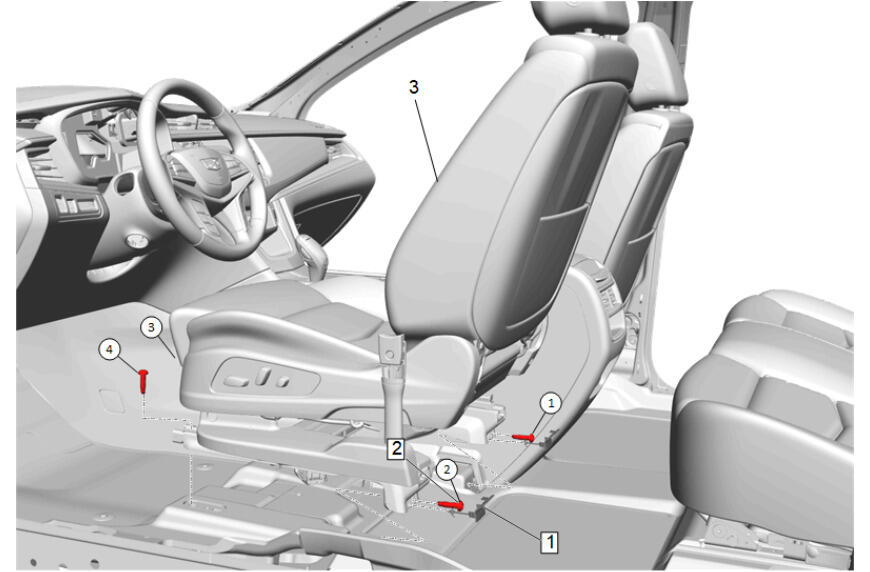

Fig 1: Identifying Front Seat Components And Bolts With Tightening Sequence

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Disconnect the seat belt from the tensioner. Front Seat Belt Retractor Replacement
1	Front Seat Adjuster Finish Cover Bolt Cap [2x]
2	Driver or Passenger Seat Bolt [4x] CAUTION: Fastener Caution . NOTE: Make sure the rear of the seat is pushed flush to the floor before tightening the bolts. Right front bolt not shown for graphic clarity. Tighten in sequence 45 N.m (33 lb ft)
3	Driver or Passenger Seat Procedure Disconnect the electrical connector. With the aid of an assistant, remove the front seat. Transfer components as necessary. Enable the SIR System. SIR Disabling and Enabling
