Rear Compartment Floor Stowage Side Rear Compartment Replacement
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

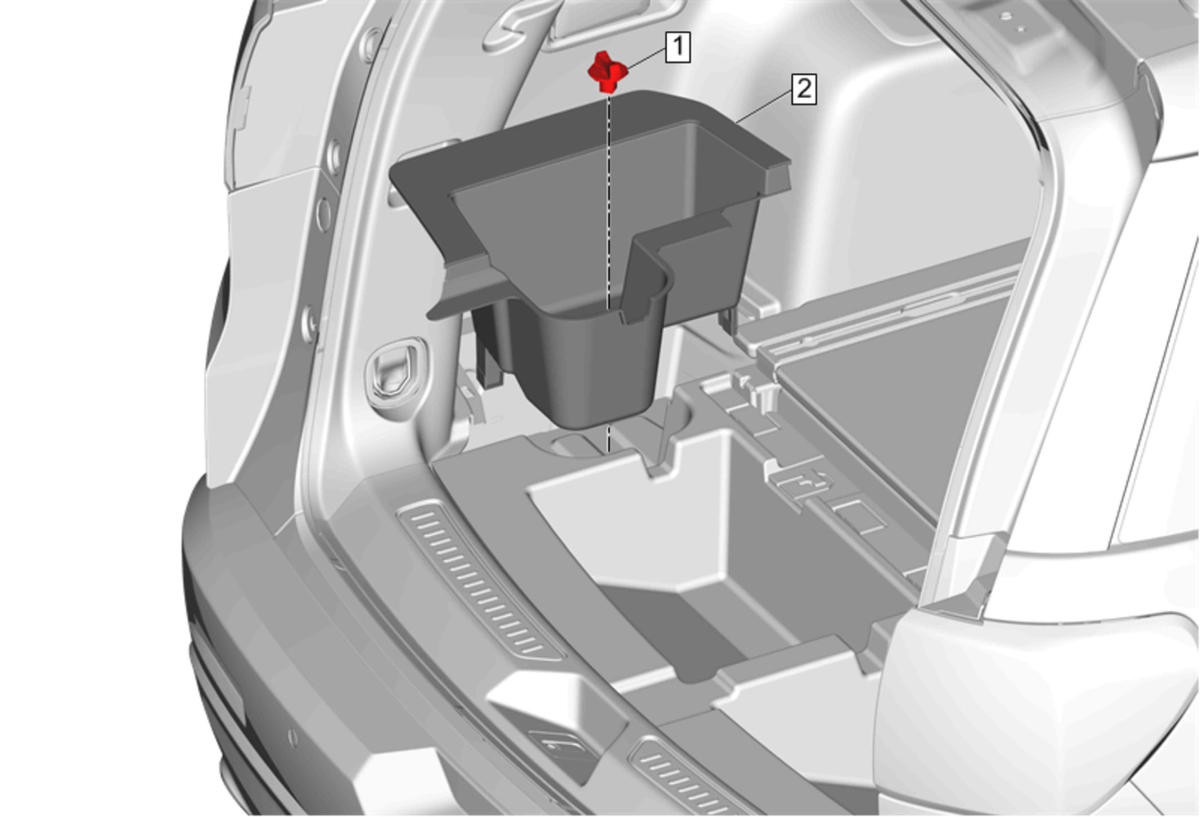

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Load Floor Stowage Compartment Cover Replacement |
|
| 1 | Rear Compartment Floor Stowage Compartment Divider Retainer
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Rear Compartment Floor Stowage Side Rear Compartment
NOTE:
Push the rear compartment floor stowage side rear compartment toward quarter lower rear trim panel prior to securing with retainer. |
