Load Floor Stowage Compartment Cover Replacement
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

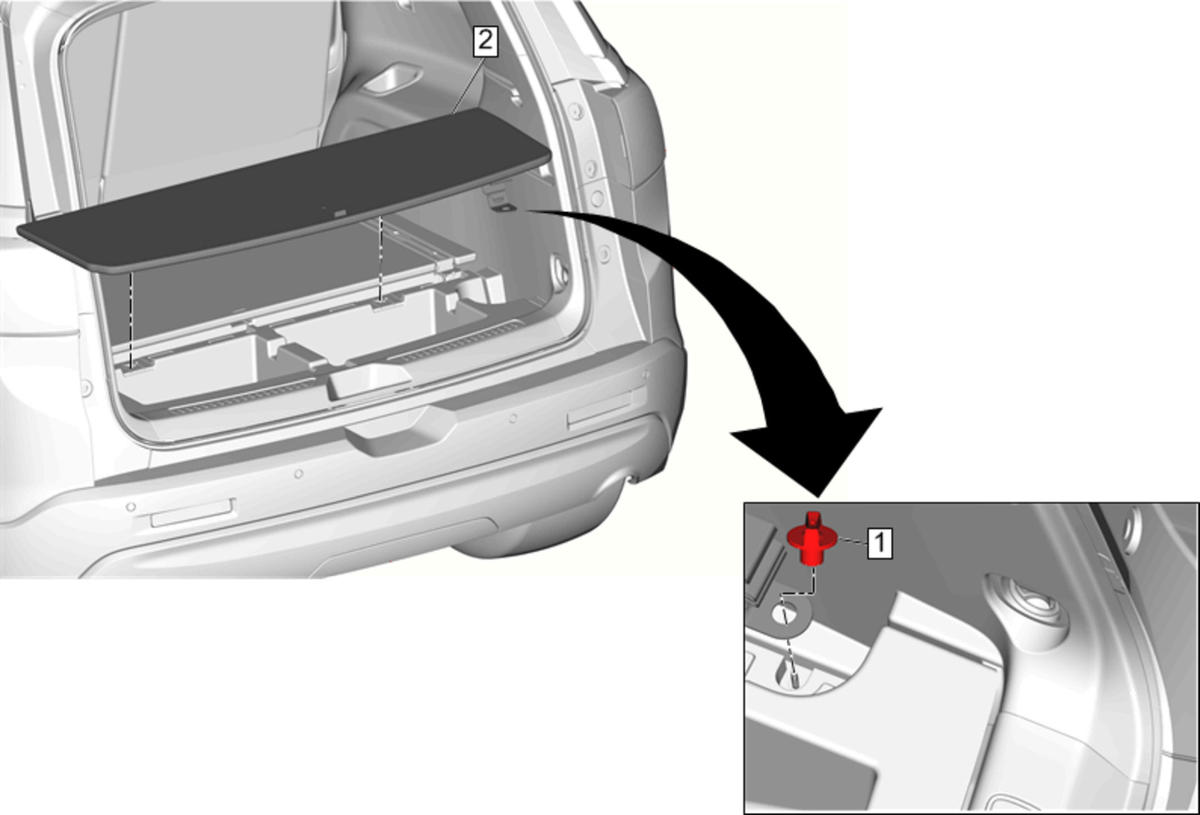

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Floor Stowage Compartment Tray Replacement (All Terrain) |
|
| 1 | Rear Compartment Floor Stowage Compartment Divider Retainer
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Load Floor Stowage Compartment Cover |
