Floor Rear Air Outlet Duct Replacement - Right Side
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

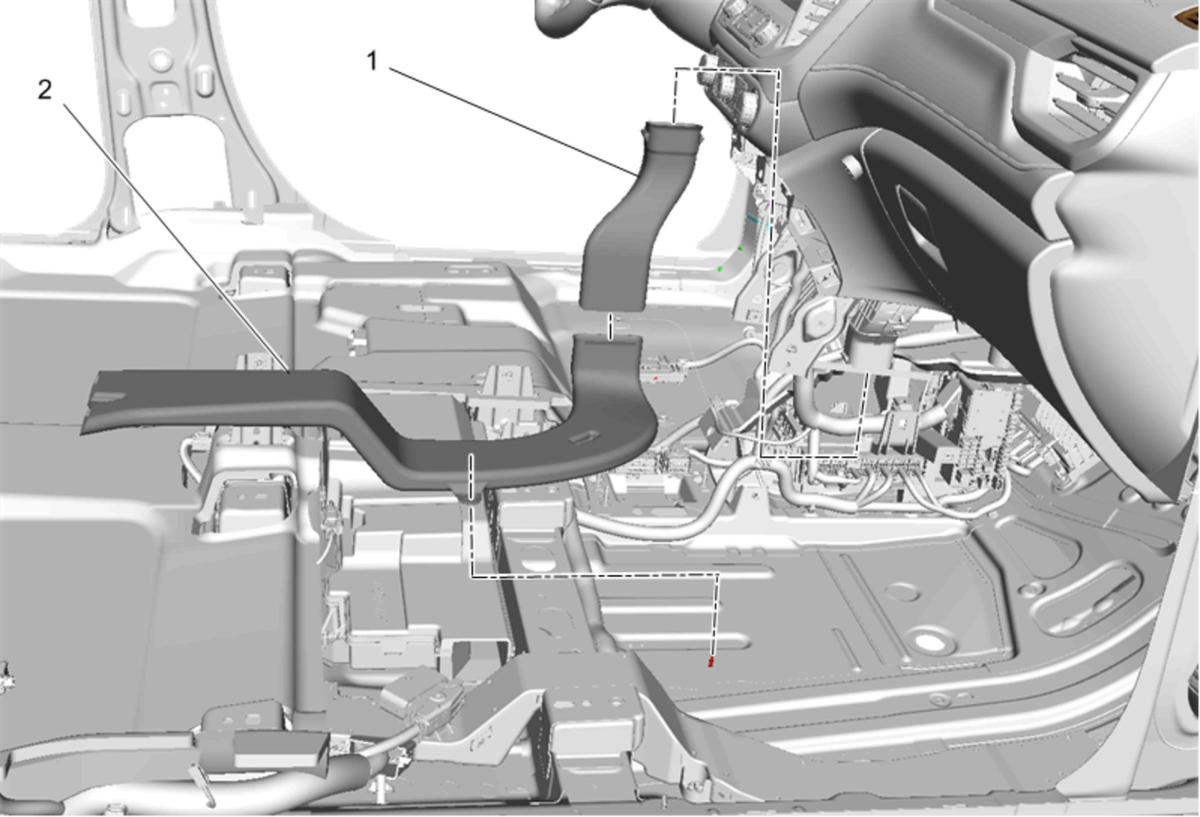

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Panel Carpet Replacement - Right Side |
|
| 1 | Floor Rear Air Outlet Duct Adaptor Procedure After removing the floor rear air outlet duct as an assembly, separate the adaptor from the duct. |
| 2 | Floor Rear Air Outlet Duct - Right Side Procedure Remove the floor rear air outlet duct and the floor rear air outlet adaptor as an assembly. |
