Installation Procedure

WARNING: This page is about a different variant/trim than selected.

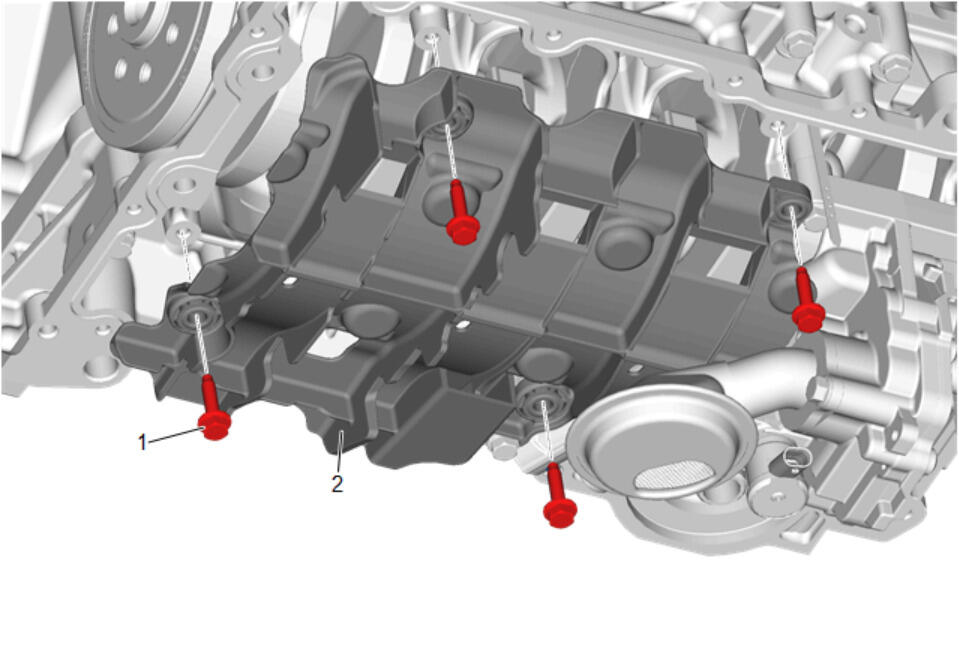

  1. GM5356099Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Oil Deflector(2) - Install

  2. Crankshaft Oil Deflector Bolt(1) - Install and hand tighten[4x]

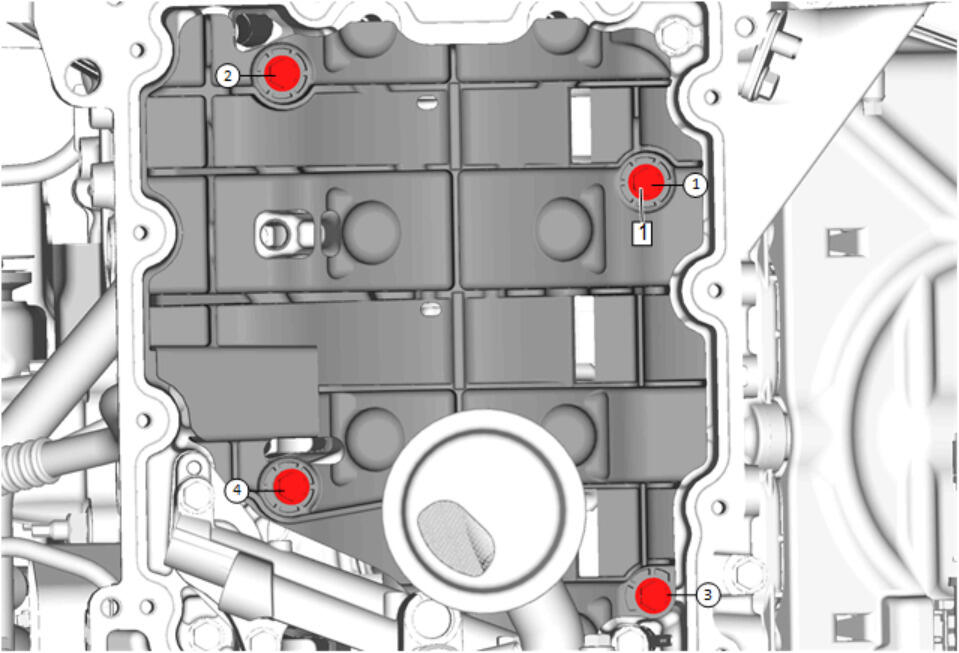

  3. Fig 1: Crankshaft Oil Deflector Bolt Tightening Sequence
    GM5356124Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Crankshaft Oil Deflector Bolt(1) - Tighten in sequence - Crankshaft Oil Deflector Installation

  4. Upper Oil Pan - Install - Upper Oil Pan Replacement
