Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

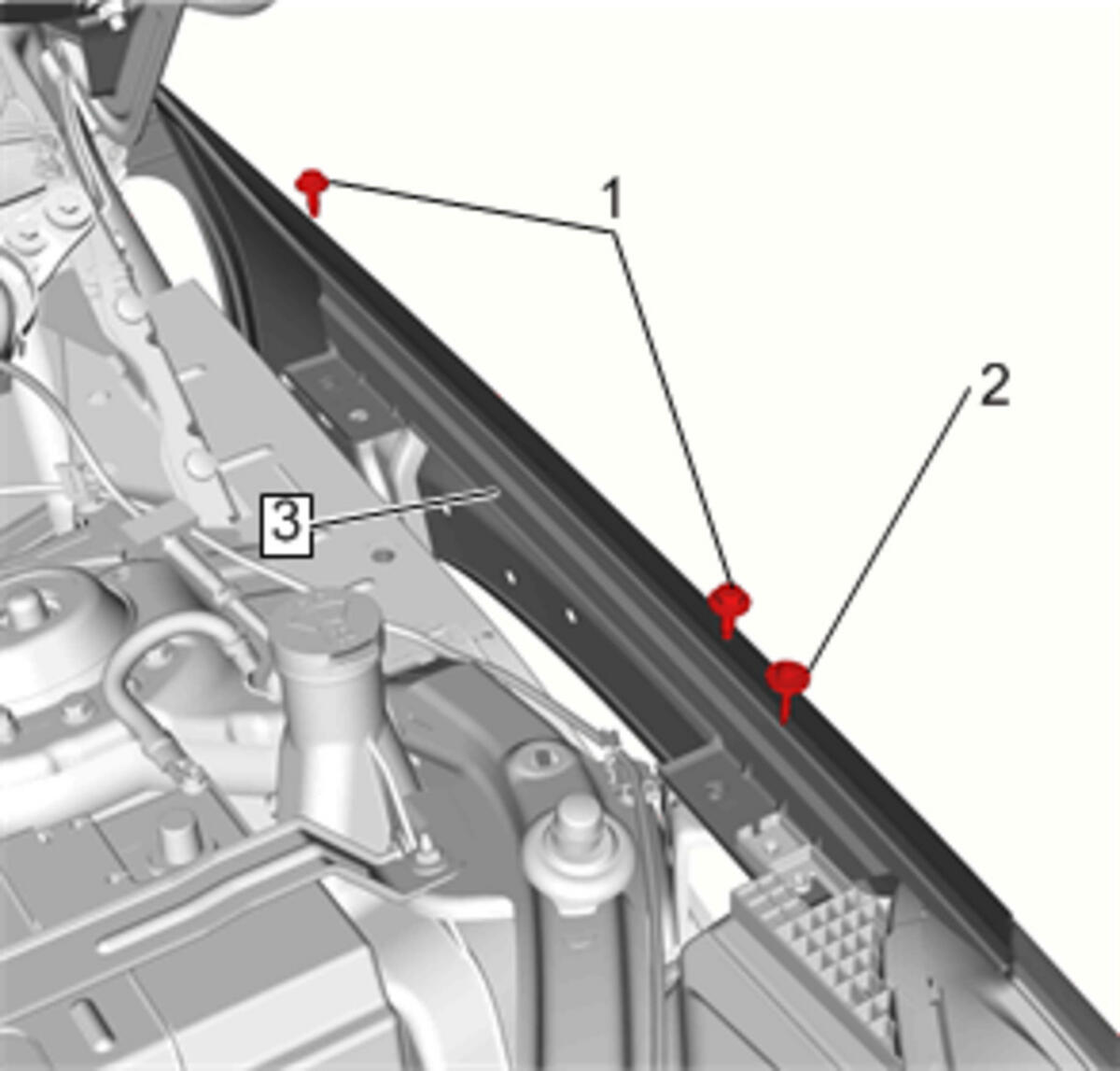

Front Fender (3) - Install
Headlamp Bolt (2) - Install and tighten 2.5 N.m (22 lb in)
Front Fender Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

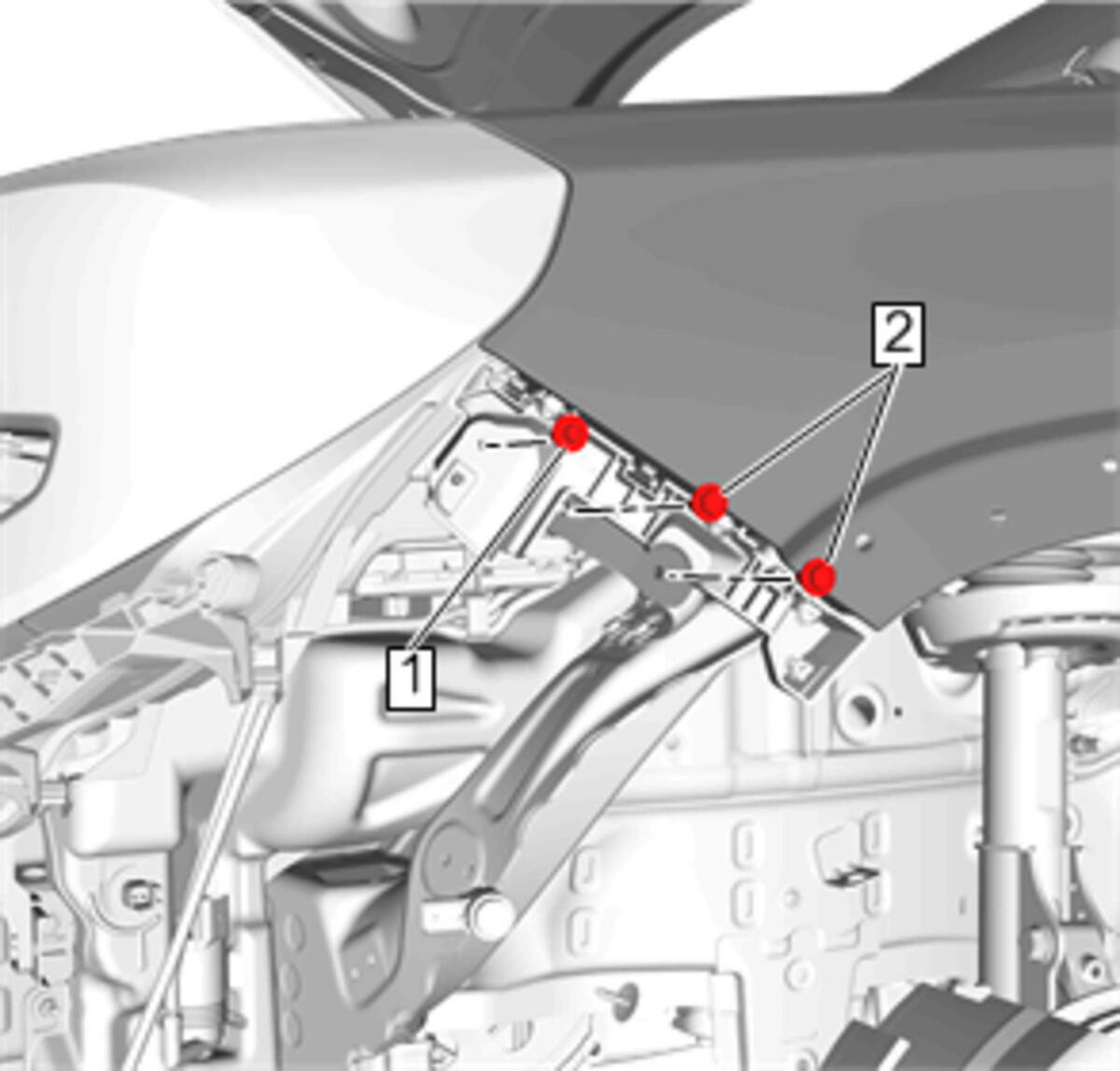

Headlamp Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Front Fender Bolt (2) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

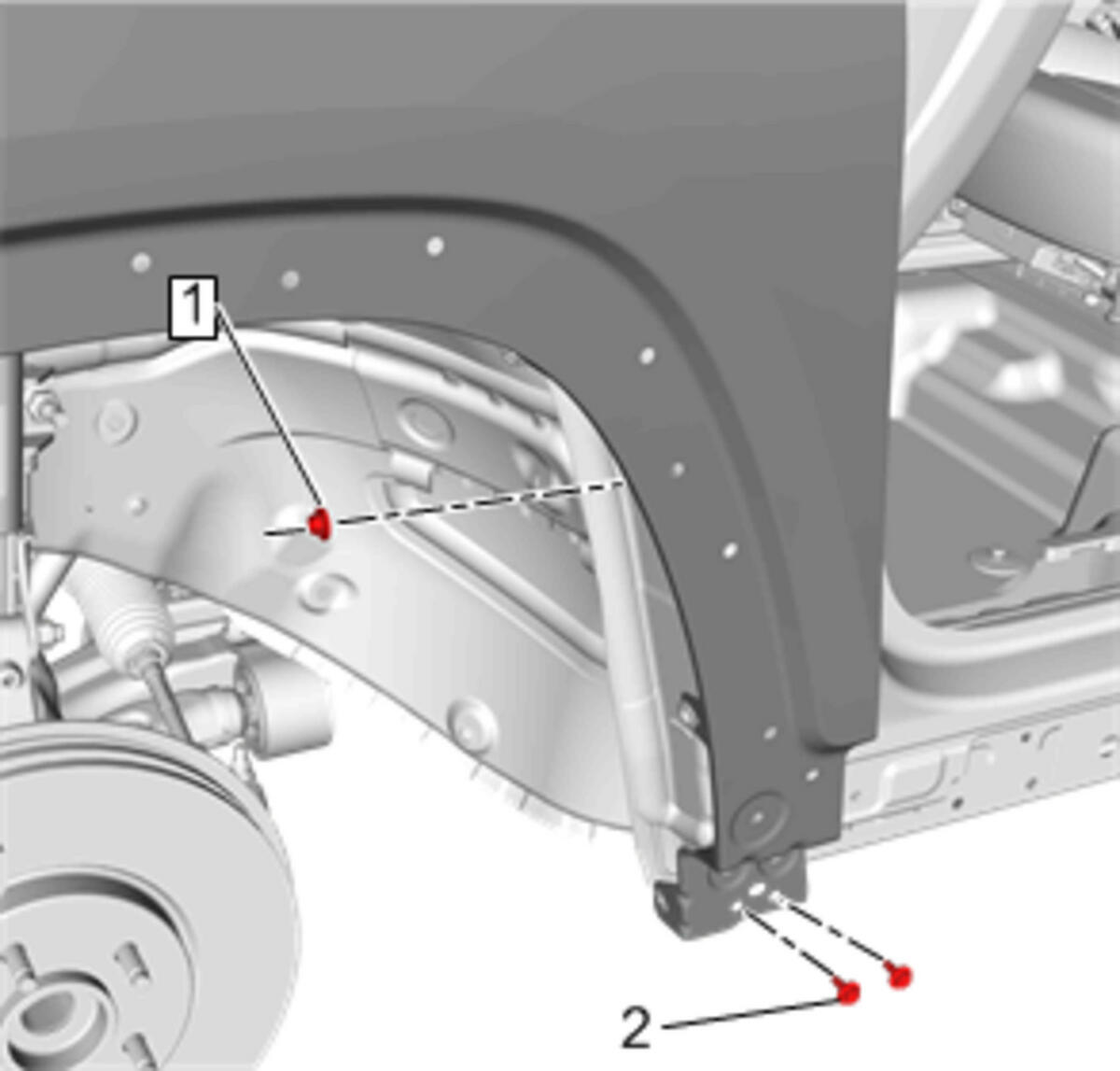

Front Fender Nut (1) - Install and tighten 9 N.m (80 lb in)
Front Fender Bolt (2) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

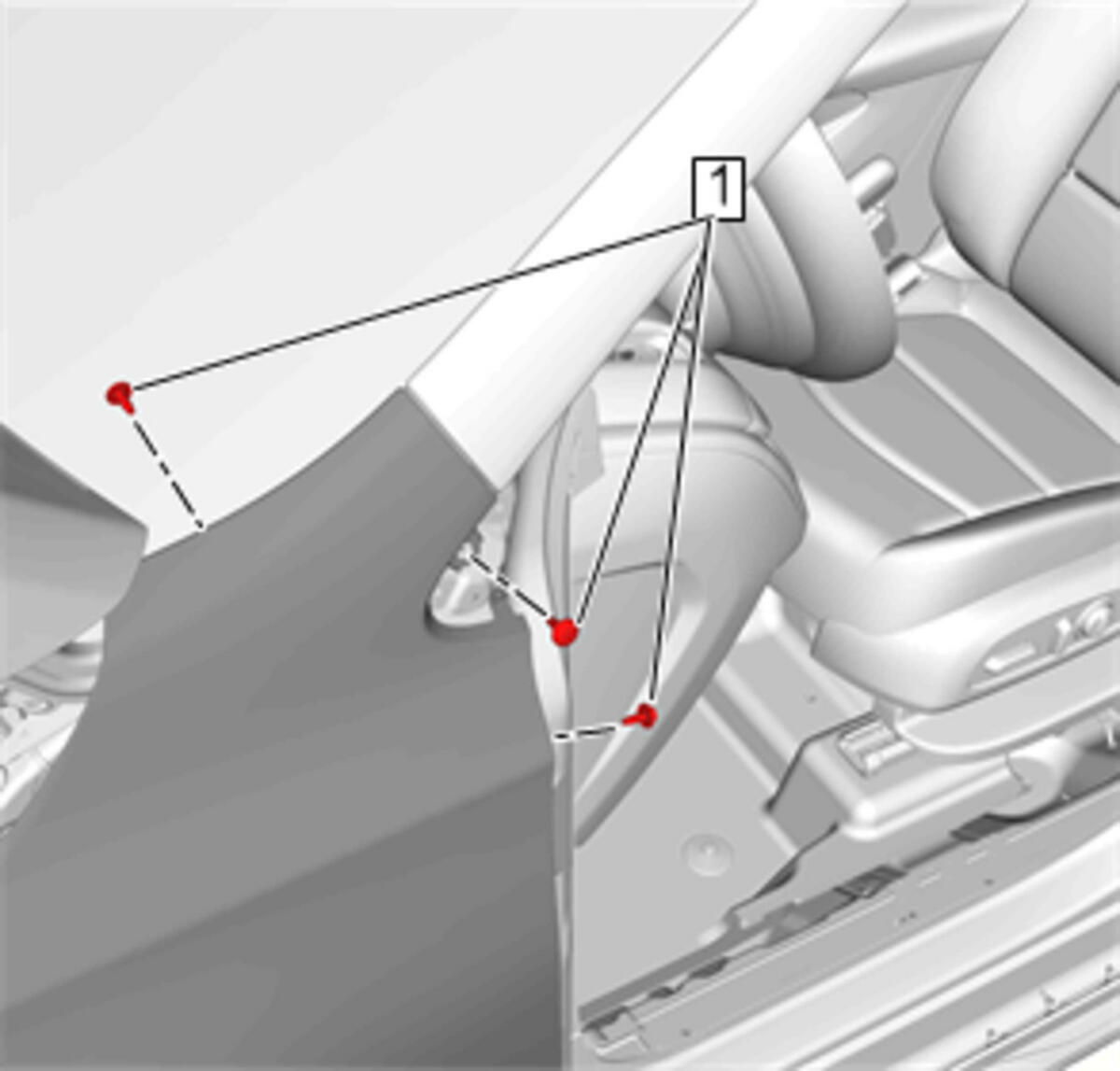

Front Fender Bolt (1) - Install and tighten[3x]9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

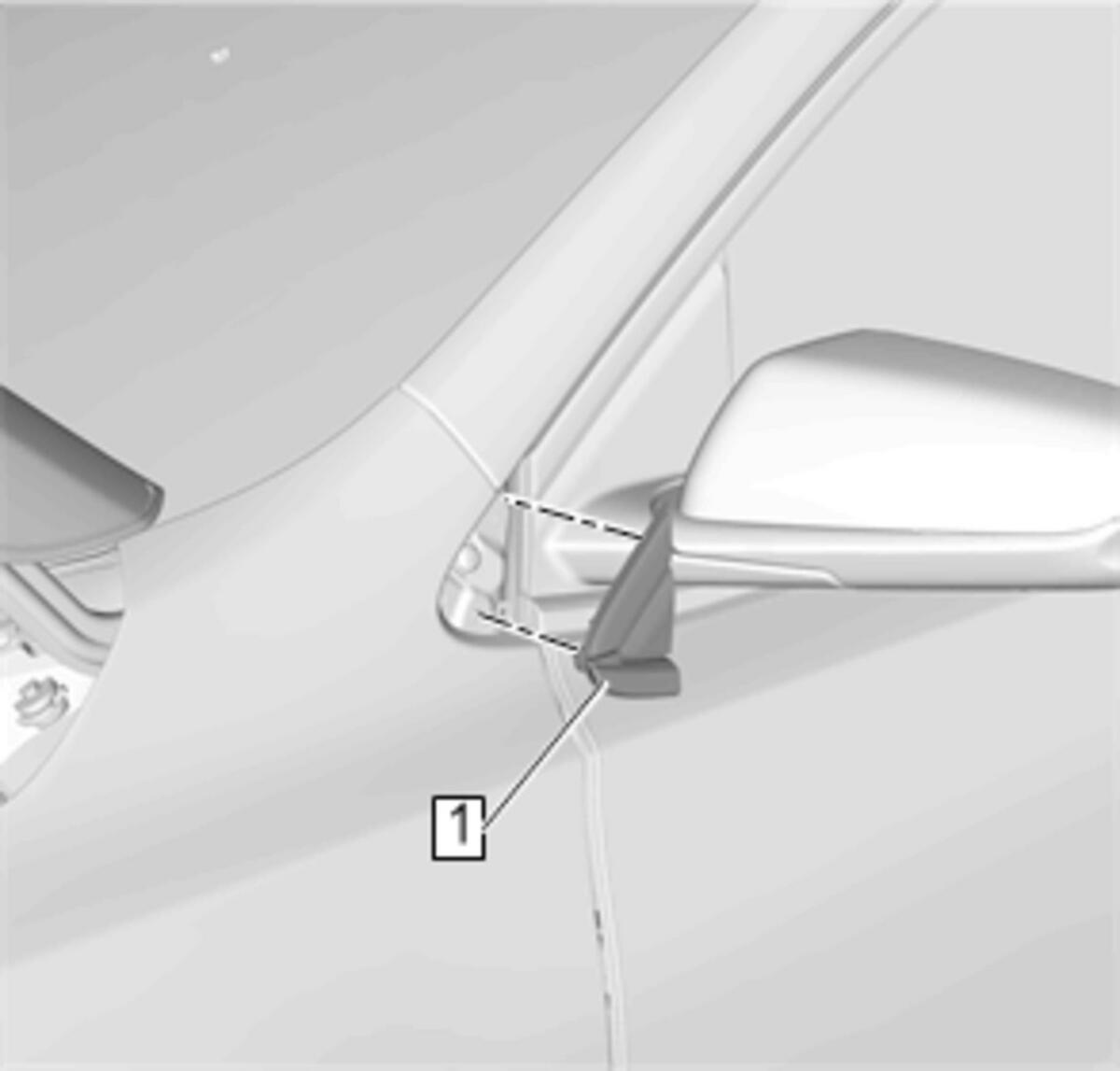

Front Fender Upper Rear Molding (1) - Install - Front Fender Upper Rear Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

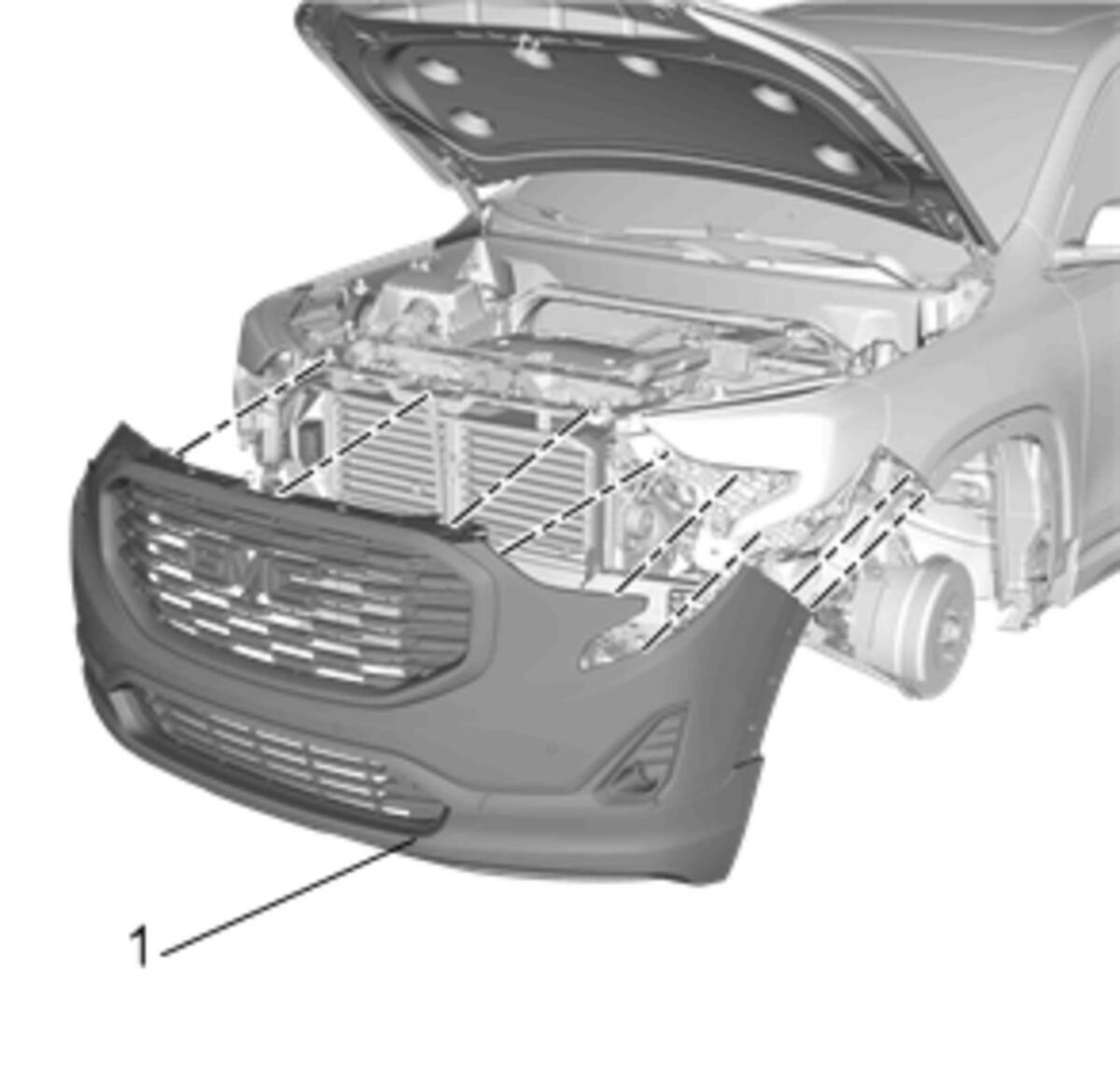

Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (Equinox) , or Front Bumper Fascia Removal and Installation (Terrain)
Courtesy of GENERAL MOTORS COMPANY

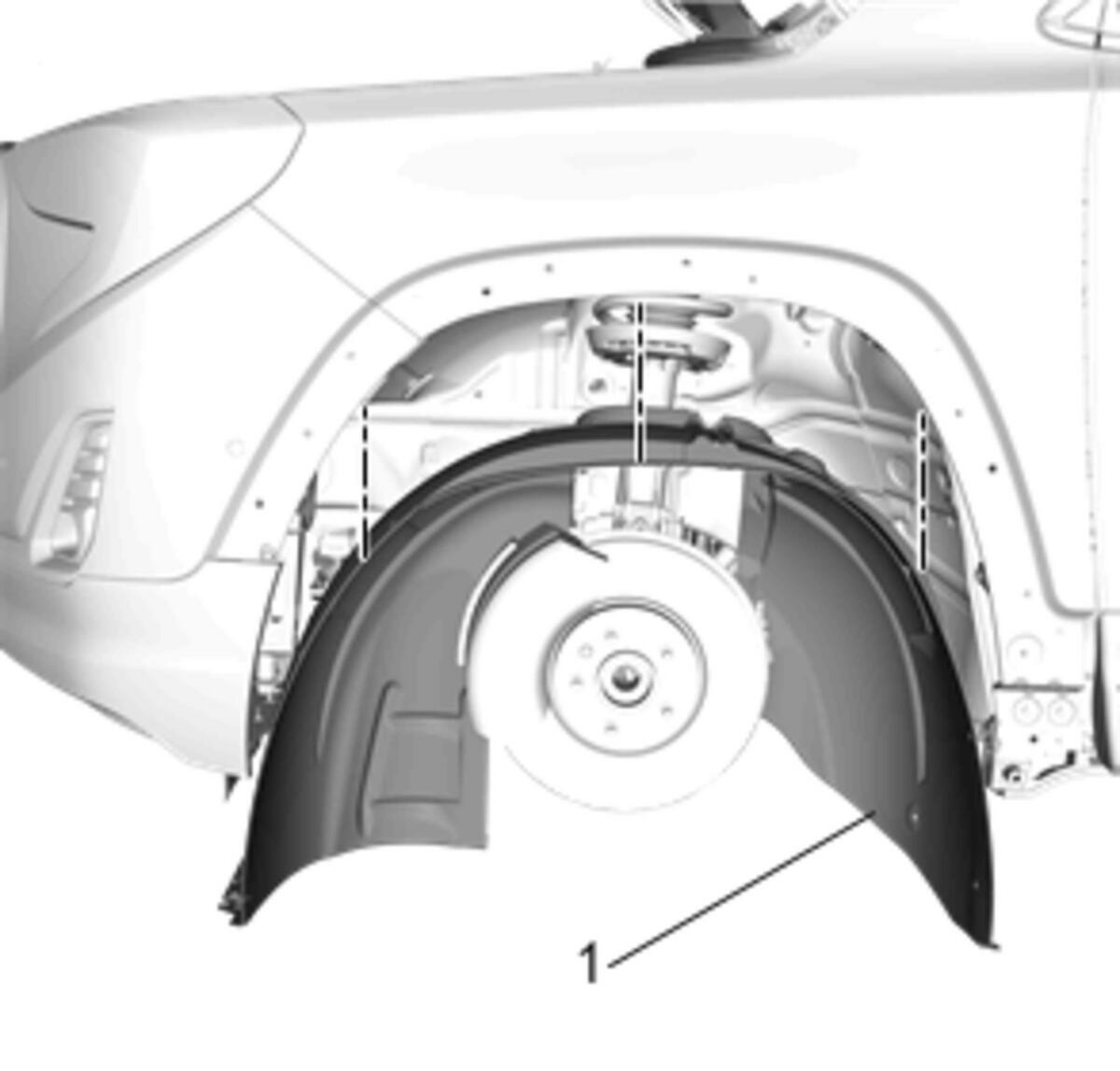

Front Wheelhouse Liner- Left Side (1) - Install - Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain)
Front Wheelhouse Liner- Right Side - Install Front Wheelhouse Liner Replacement - Right Side (Equinox) , or Front Wheelhouse Liner Replacement - Right Side (Terrain)
Courtesy of GENERAL MOTORS COMPANY

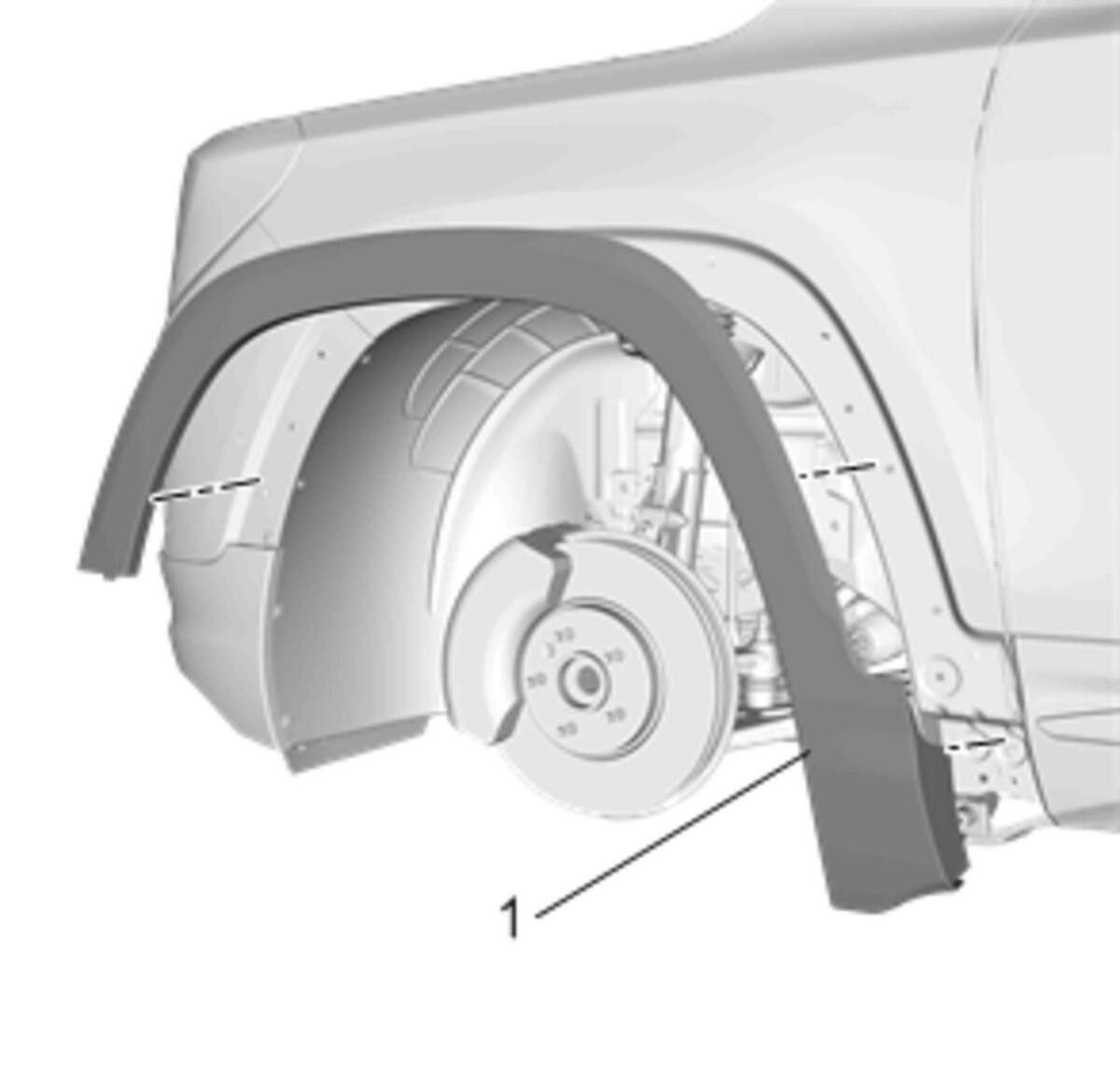

Front Wheel Opening Molding (1) - Install - Front Wheel Opening Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

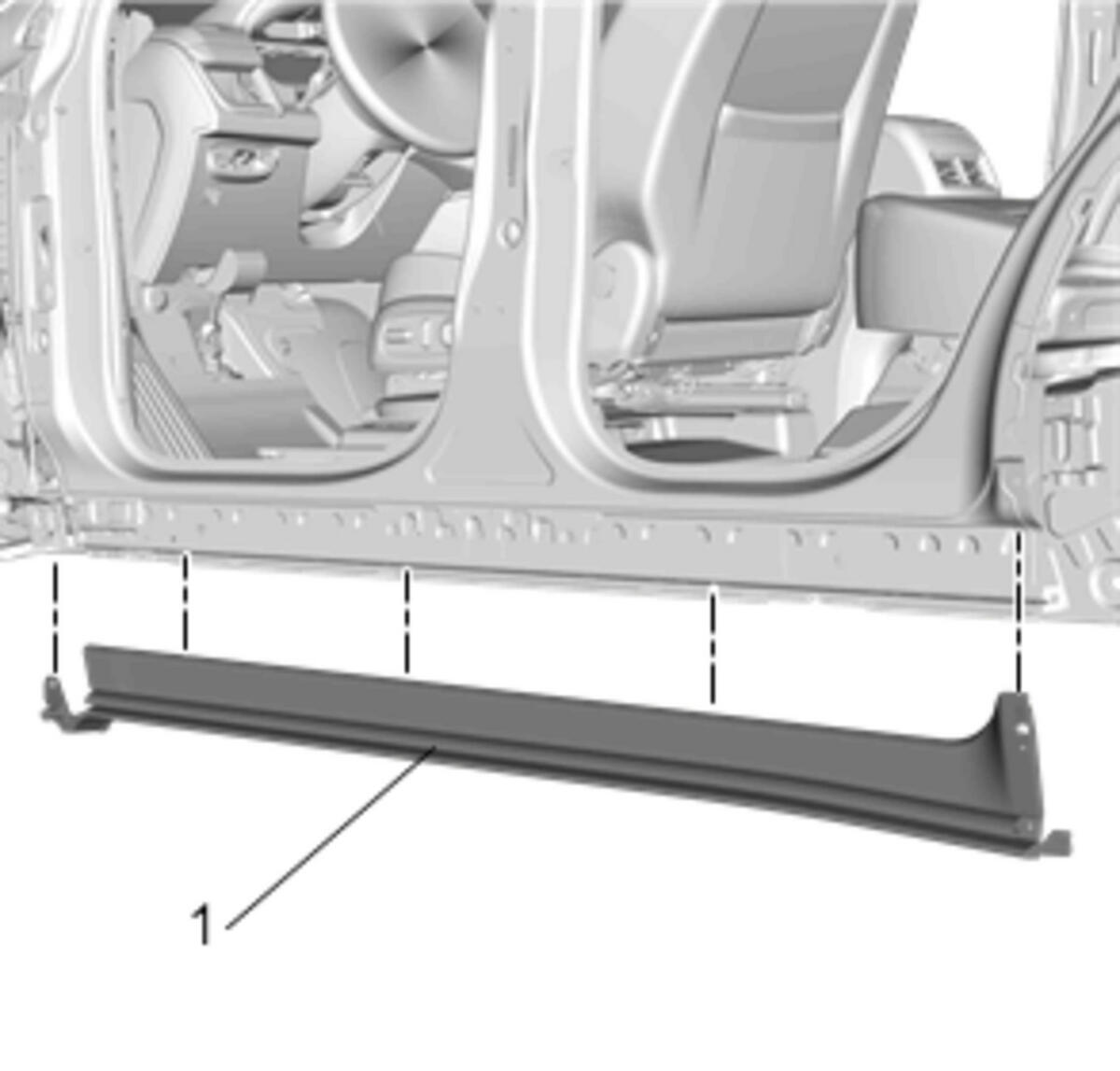

Rocker Panel Molding (1) - Install - Rocker Panel Molding Replacement (Equinox) , or Rocker Panel Molding Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

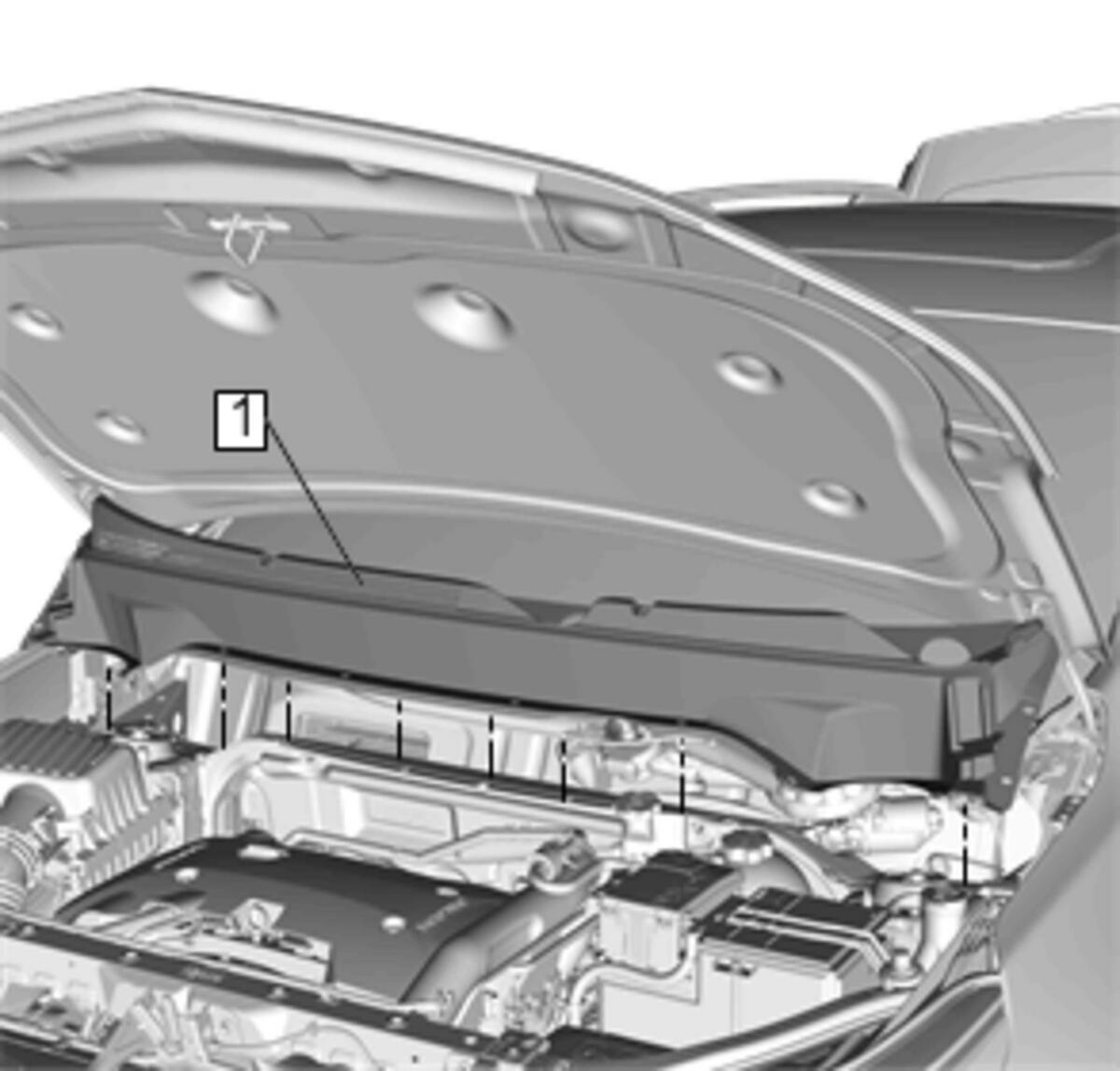

Air Inlet Grille Panel (1) - Install - Air Inlet Grille Panel Replacement
