Rocker Panel Molding Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

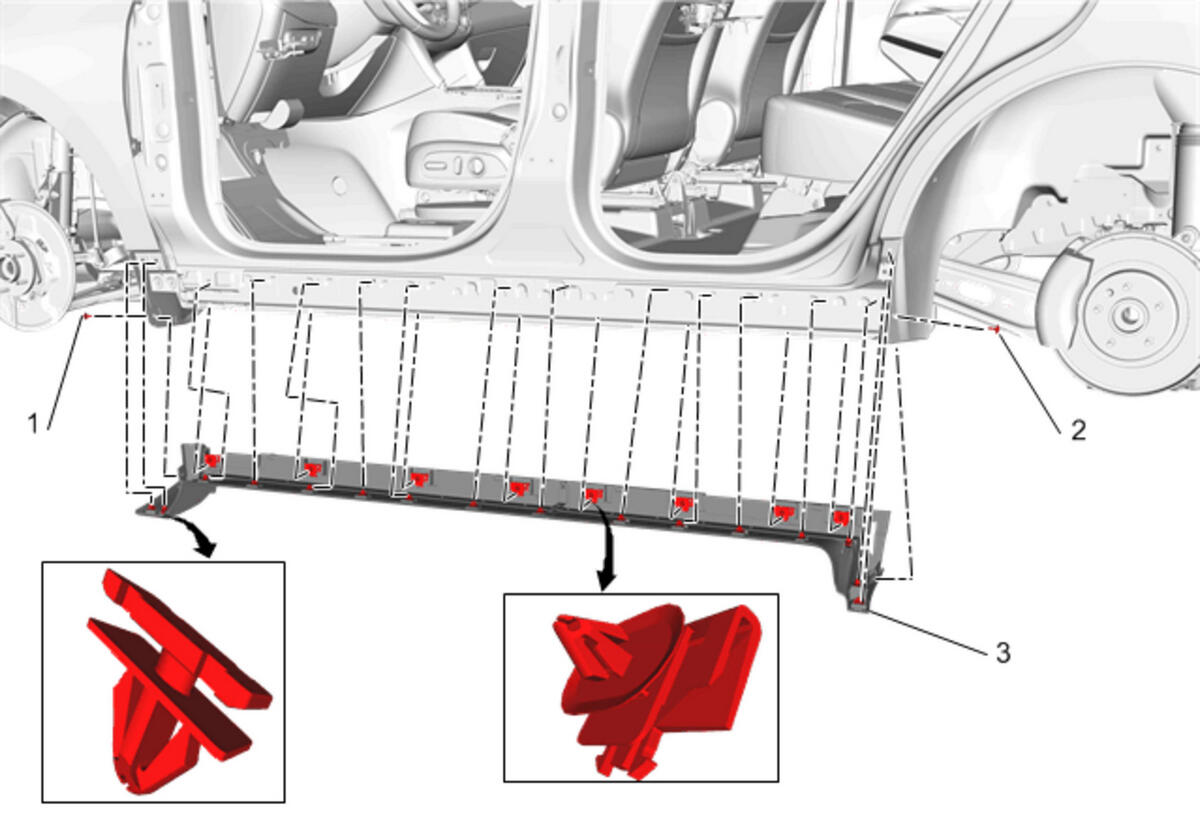

Callout	Component Name
Preliminary Procedures Rear Tire Front Air Deflector Replacement (Equinox) Open the front and rear side doors.
1	Front Wheelhouse Liner Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Wheelhouse Liner Bolt Tighten 2.5 N.m (22 lb in)
3	Rocker Panel Molding Procedure Using the appropriate tool, release the retainers from the bottom edge and pull down the rocker panel molding from the body side outer panel. Using the appropriate tool, release the retainers from the top edge, pull out the rocker panel molding from the body side outer panel and remove from the vehicle.
