Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Forward Collision Alert Display Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

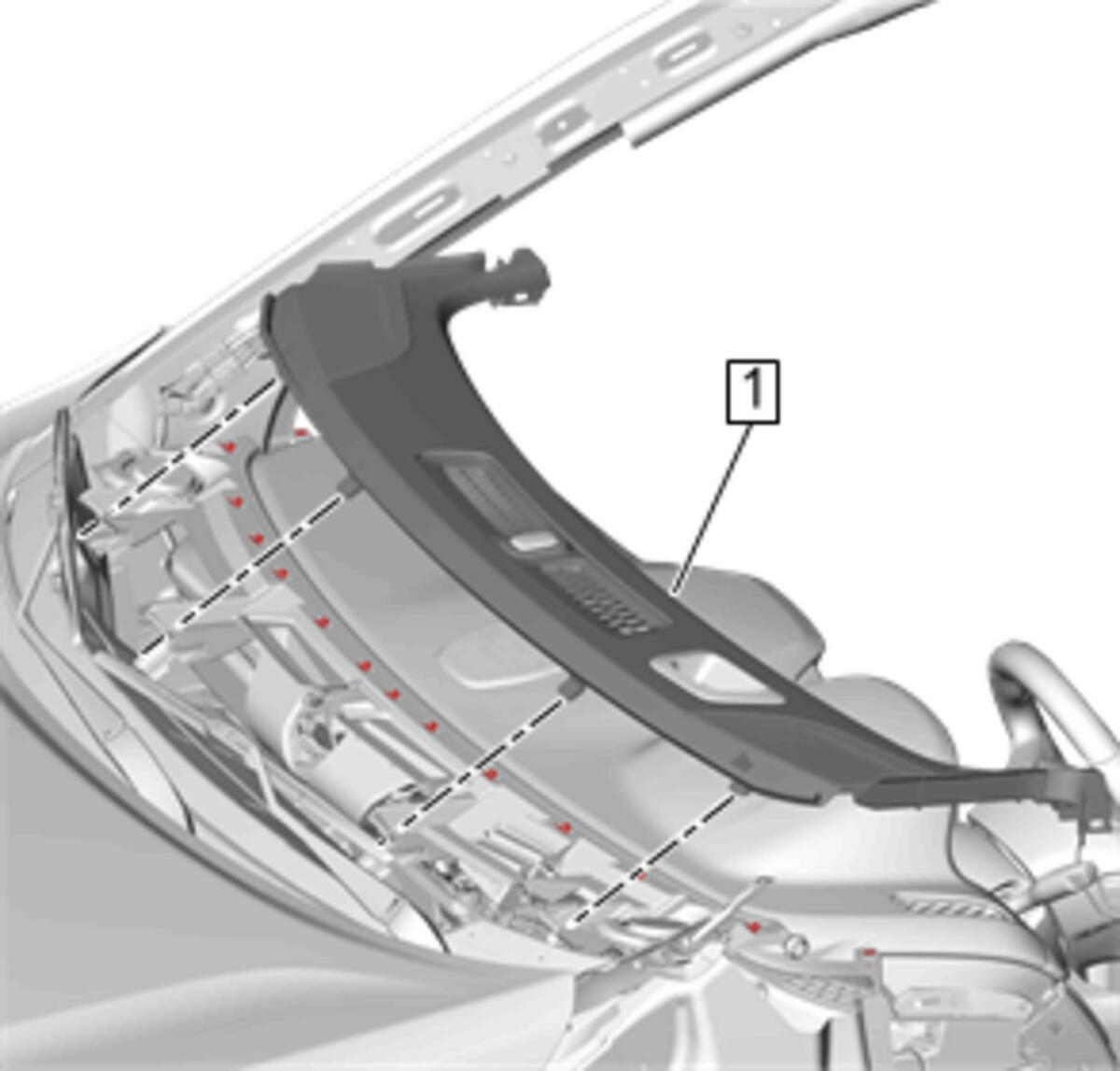

Instrument Panel Extension (1) - Install
Courtesy of GENERAL MOTORS COMPANY

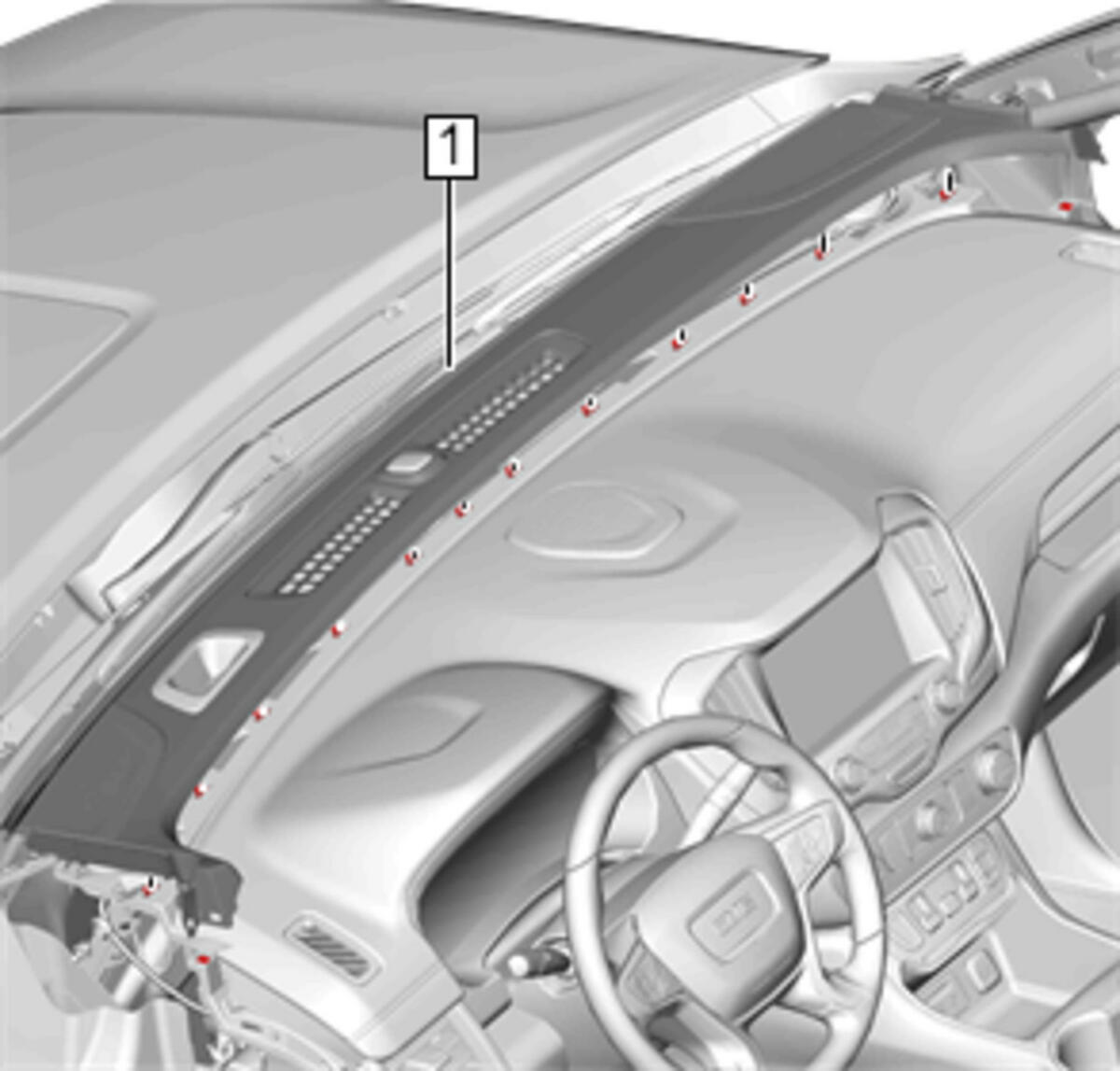

Engage the instrument panel extension retainers (1) to the instrument upper trim panel.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

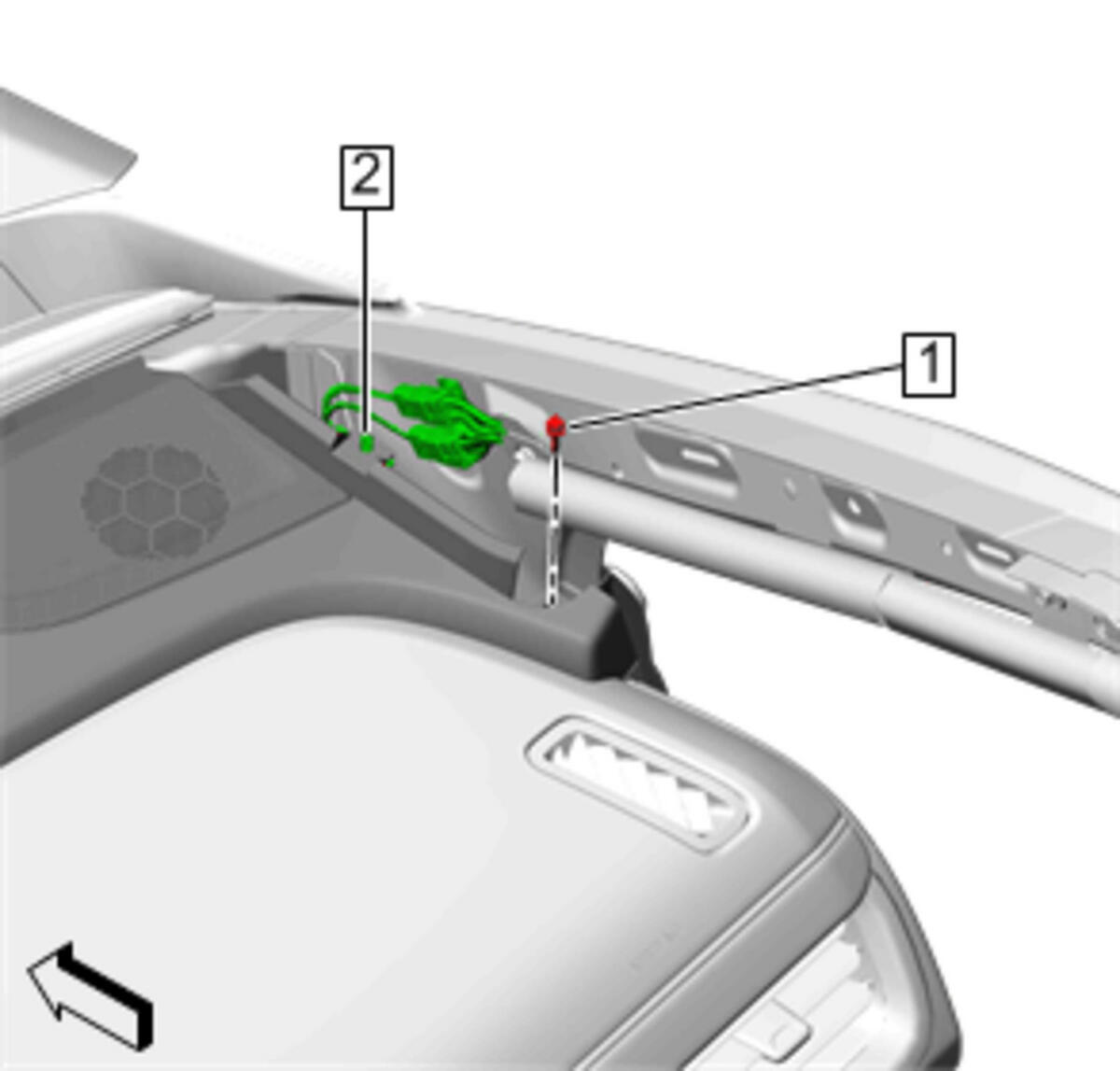

Instrument Panel Extension Bolt (1) - Install and tighten2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Connect the harness clip. (2)

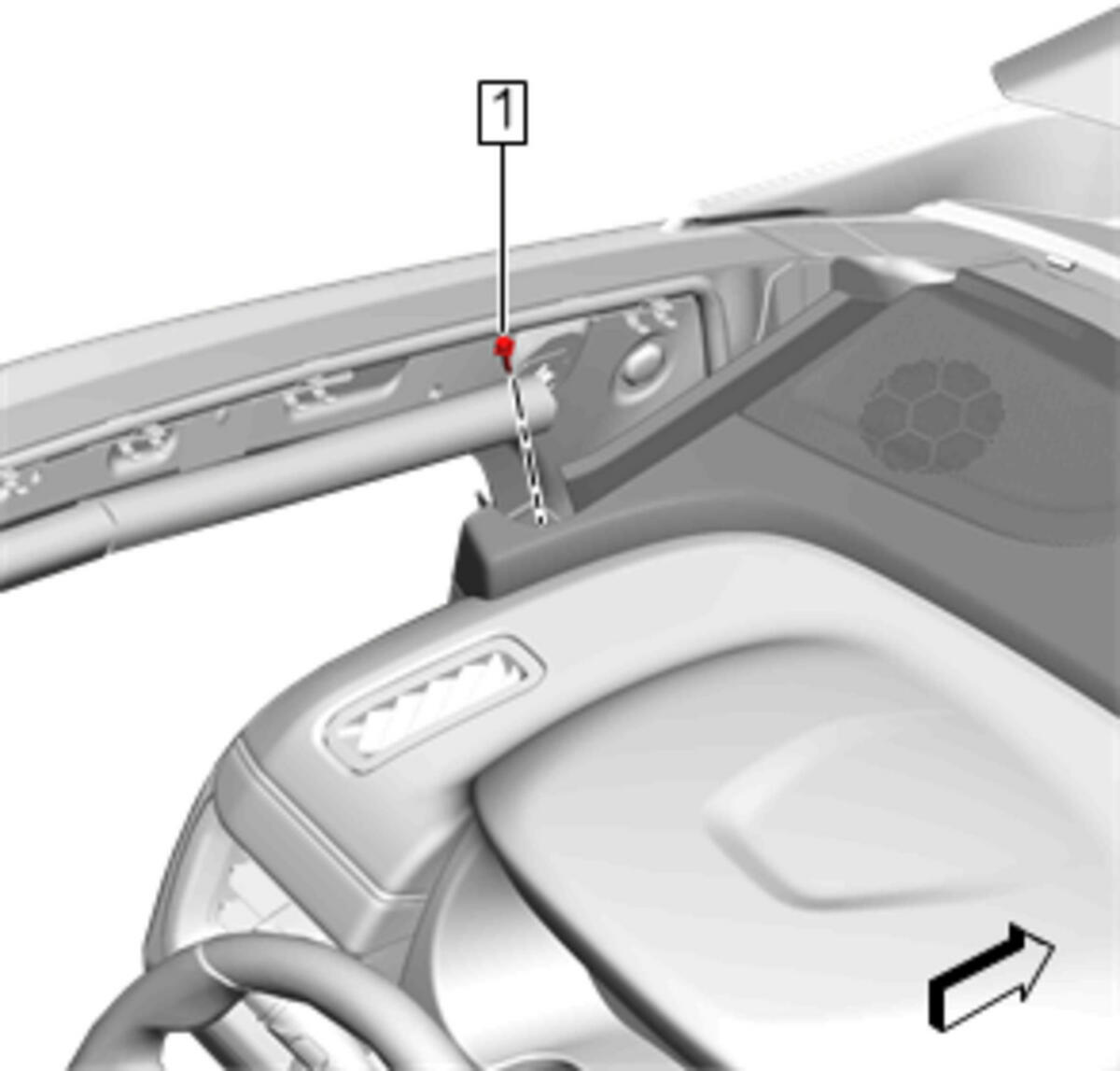

Instrument Panel Extension Bolt (1) - Install and tighten2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement (Equinox) , or Instrument Panel Outer Trim Cover Replacement (Terrain)
Windshield Garnish Molding - Install - Windshield Garnish Molding Replacement (Equinox) , or Windshield Garnish Molding Replacement (Terrain)
