Front Seat Belt Anchor Plate Tensioner Replacement (Extended Cab)

Courtesy of GENERAL MOTORS COMPANY

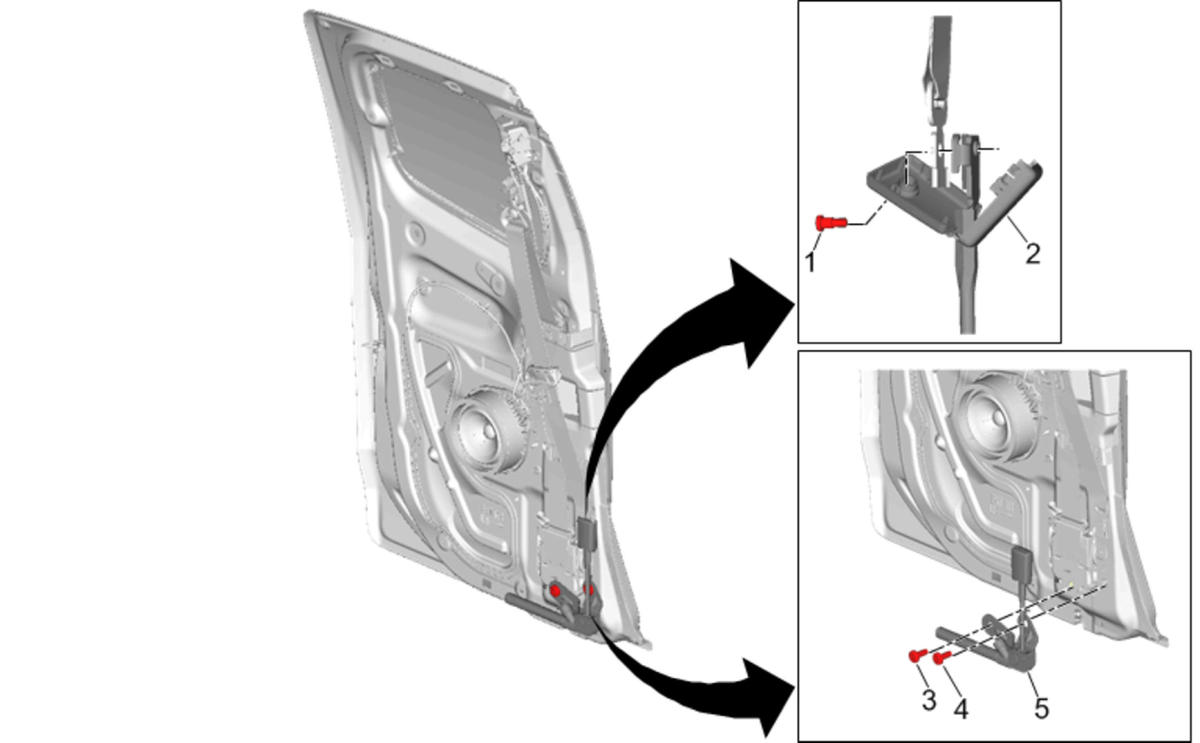

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of appropriate country, regional or local laws. Preliminary Procedures SIR Disabling and Enabling Rear Side Door Trim Replacement (Extended Cab) Pretensioner Handling and Scrapping (Europe) , or Pretensioner Handling and Scrapping (Except Europe)
1	Driver or Passenger Seat Belt Tensioner Cover Fastener CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Driver or Passenger Seat Belt Tensioner Cover
3	Driver or Passenger Seat Retractor Side Belt Fastener (Lower) Tighten 45 N.m (33 lb ft)
4	Front Seat Belt Anchor Plate Bolt Tighten 45 N.m (33 lb ft)
5	Front Seat Belt Anchor Plate Tensioner Assembly Procedure Disconnect the electrical connector.
