Rear Wheelhouse Liner Replacement (Except Bison)

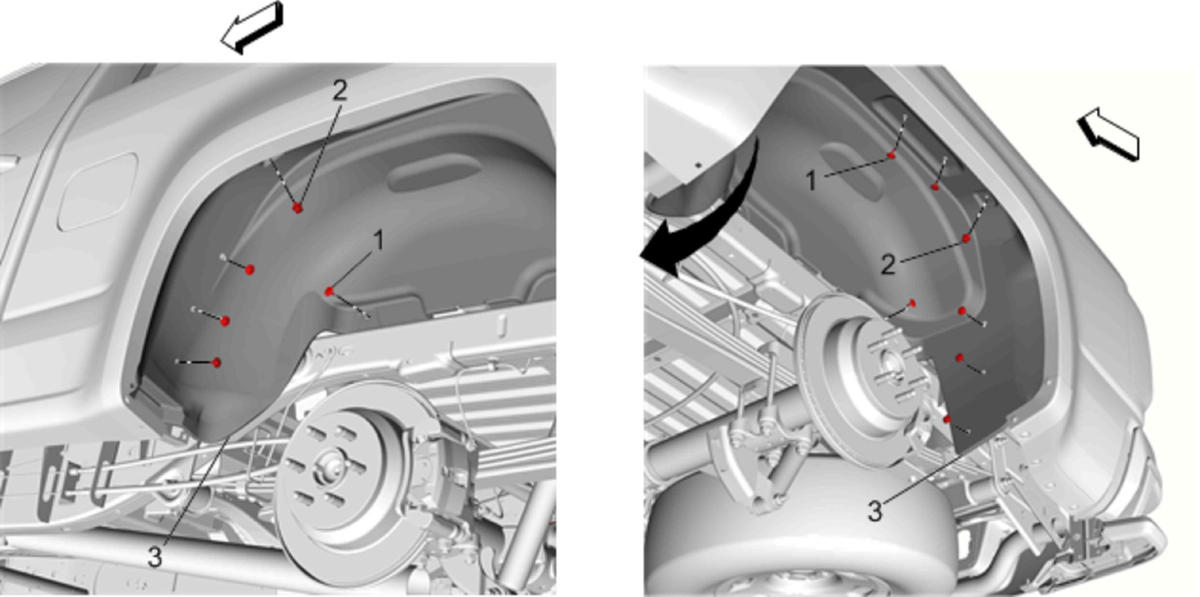

GM3781990Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear tire. Refer to Tire and Wheel Removal and Installation .
  3. Remove the rear pickup box paint protector. Refer to Rear Pickup Box Paint Protector Replacement .
1 Rear Wheelhouse Liner Fasteners (Qty: 11)
CAUTION:

Refer to Fastener Caution .


Tighten:
2.5 N.m (22 lb in)
2 Rear Wheelhouse Liner Plastic Retainers (Qty: 2)
3 Rear Wheelhouse Liner
