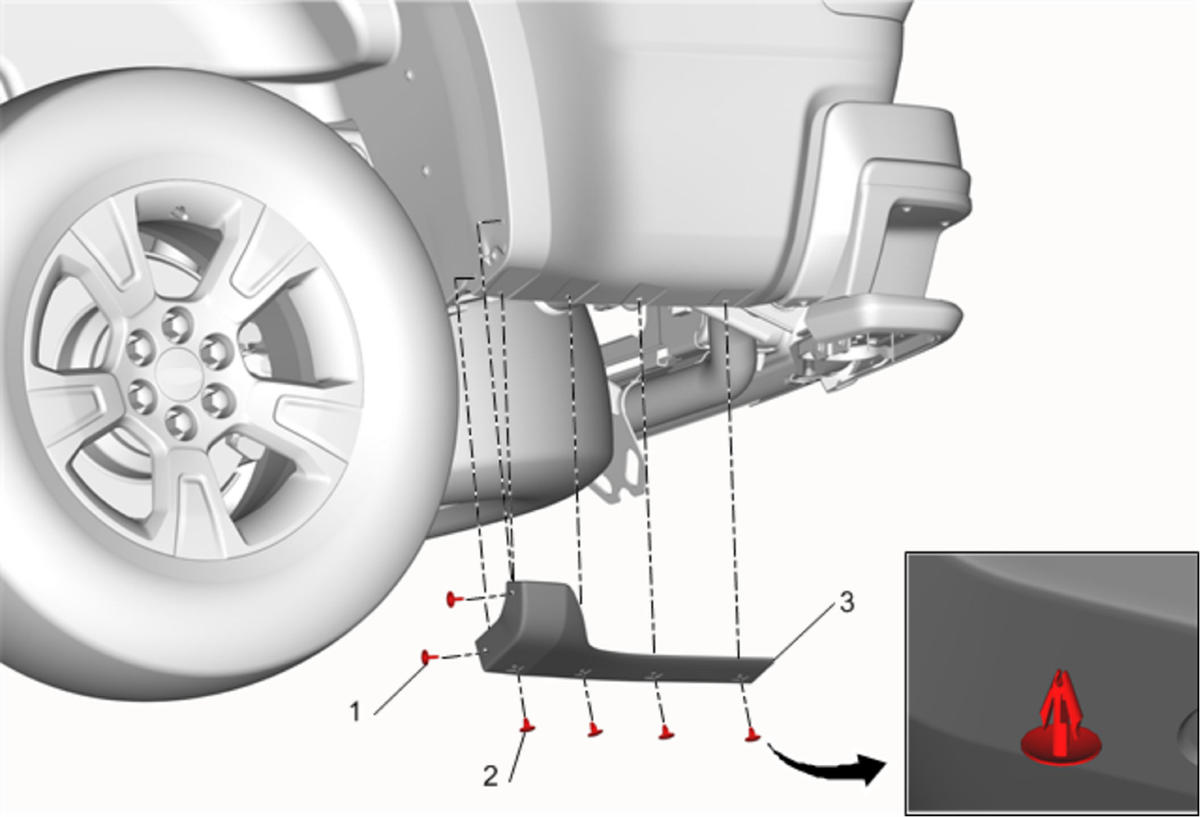

Rear Pickup Box Paint Protector Replacement
| Callout | Component Name |
|---|---|
| 1 | Rear Pickup Box Paint Protector Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Pickup Box Paint Protector Retainer (Qty 4) Procedure With a trim-type release tool disengage the 4 retainers. |
| 3 | Rear Pickup Box Paint Protector |
