Rear Side Door Upper Hinge and Lower Hinge Replacement (Crew Cab)

Courtesy of GENERAL MOTORS COMPANY

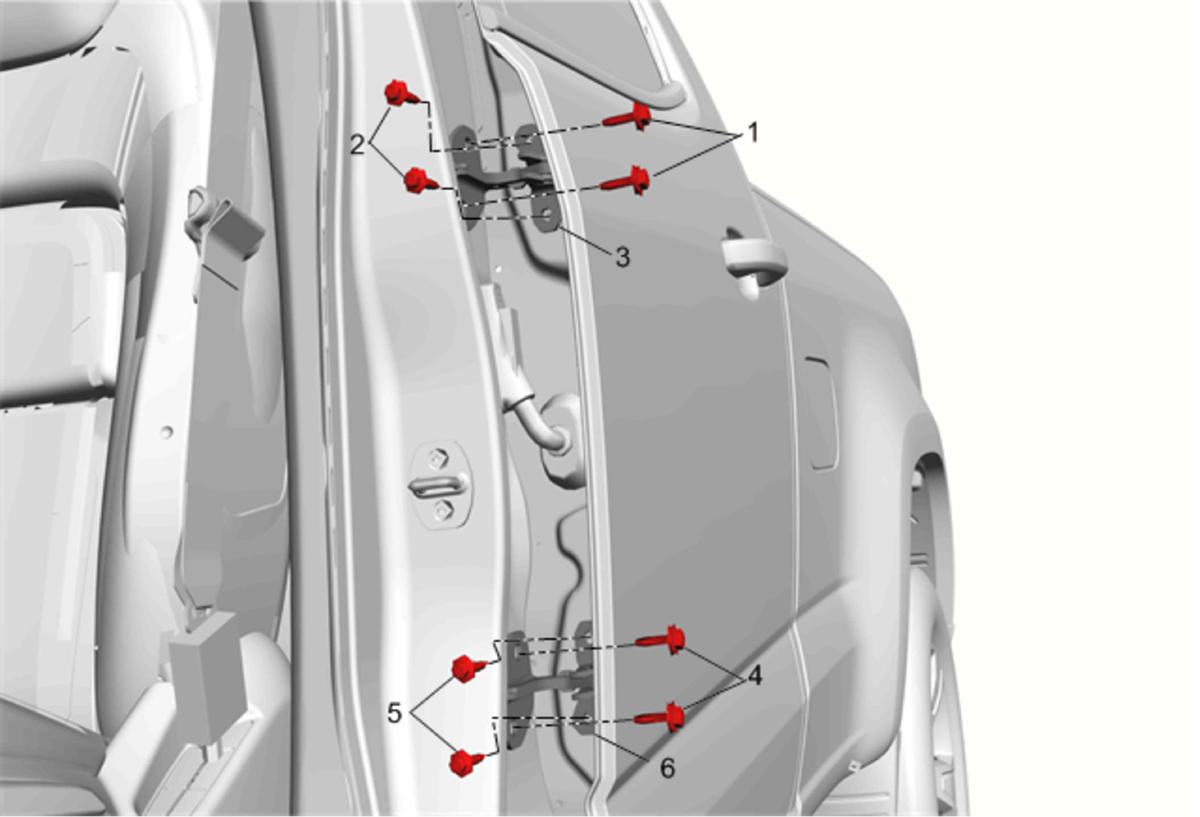

Callout	Component Name
Preliminary Procedures Apply a double layer of masking tape around the perimeter of the painted surfaces. Mark the location of the hinges before removing the fasteners with a grease pencil.
1	Rear Side Door Upper Hinge Fastener to Body (Qty: 2) CAUTION: Refer to Fastener Caution . Procedures Keep the door in the closed position. Replace one hinge at a time. Tighten 32 N.m (24 lb ft)
2	Rear Side Door Upper Hinge Fastener to Door (Qty: 2) Tighten 25 N.m (18 lb ft)
3	Rear Side Door Upper Hinge
4	Rear Side Door Lower Hinge Fastener to Body (Qty: 2) Tighten 32 N.m (24 lb ft)
5	Rear Side Door Lower Hinge Fastener to Door (Qty: 2) Tighten 25 N.m (18 lb ft)
6	Rear Side Door Lower Hinge Procedure Adjust the door, if needed. Refer to Rear Side Door Adjustment (Crew Cab) . NOTE: Inspect the door for proper operation.
