Rear Side Door Adjustment (Crew Cab)

Courtesy of GENERAL MOTORS COMPANY

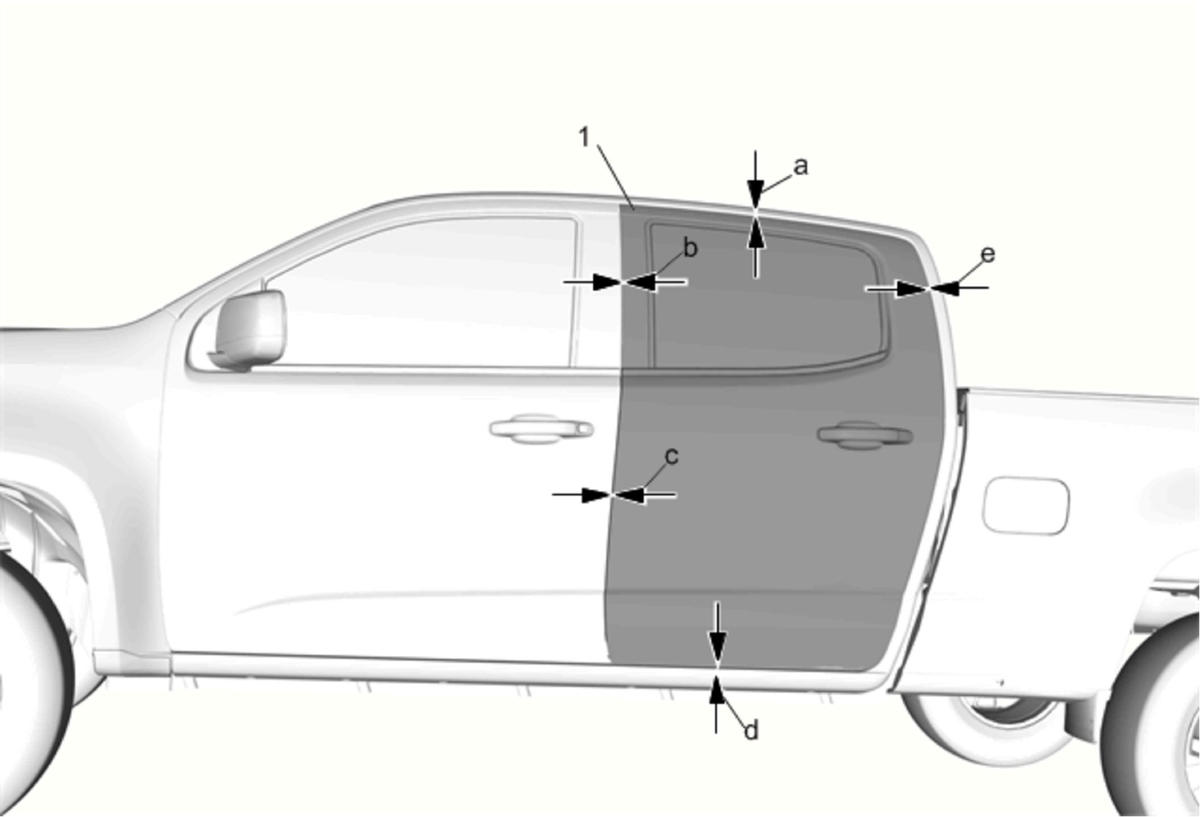

Callout	Component Name
1	Rear Side Door CAUTION: Refer to Fastener Caution . Procedure Loosen the rear door hinge bolts (Qty: 4) to adjust the rear door. Adjust the rear door in order to obtain an even gap around as follows: Adjustment Rear side door to roof (a) 4.7 mm ± 1.0 mm (0.19 in ± 0.05 in) Rear side door to edge of cab panel (b) 4.7 mm ± 1.0 mm (0.19 in ± 0.05 in) Lower edge of rear side door to rocker panel (c) 5.5 mm ± 1.0 mm (0.21 in ± 0.05 in) Rear side door to front side door (d) 4.7 mm ± 1.0 mm (0.19 in ± 0.05 in) Rear side door to body side outer (e) 4.0 mm ± 0.75 mm (0.16 in ± 0.05 in) Tighten 34 N.m (25 lb ft) NOTE: If door drags on the door lock striker or high closing effort is needed to fully engage the door lock, then adjustment of the door lock striker will be required. Rear Side Door Lock Striker Adjustment (Crew Cab)

Callout

Component Name

Rear Side Door

CAUTION:

Refer to Fastener Caution .

Procedure

Loosen the rear door hinge bolts (Qty: 4) to adjust the rear door.
Adjust the rear door in order to obtain an even gap around as follows:
Adjustment
- Rear side door to roof
  (a) 4.7 mm ± 1.0 mm (0.19 in ± 0.05 in)
- Rear side door to edge of cab panel
  (b) 4.7 mm ± 1.0 mm (0.19 in ± 0.05 in)
- Lower edge of rear side door to rocker panel
  (c) 5.5 mm ± 1.0 mm (0.21 in ± 0.05 in)
- Rear side door to front side door
  (d) 4.7 mm ± 1.0 mm (0.19 in ± 0.05 in)
- Rear side door to body side outer
  (e) 4.0 mm ± 0.75 mm (0.16 in ± 0.05 in)

Tighten
34 N.m (25 lb ft)

NOTE:

If door drags on the door lock striker or high closing effort is needed to fully engage the door lock, then adjustment of the door lock striker will be required.

Rear Side Door Lock Striker Adjustment (Crew Cab)
