Rear Side Door Check Link Replacement (Extended Cab)

Courtesy of GENERAL MOTORS COMPANY

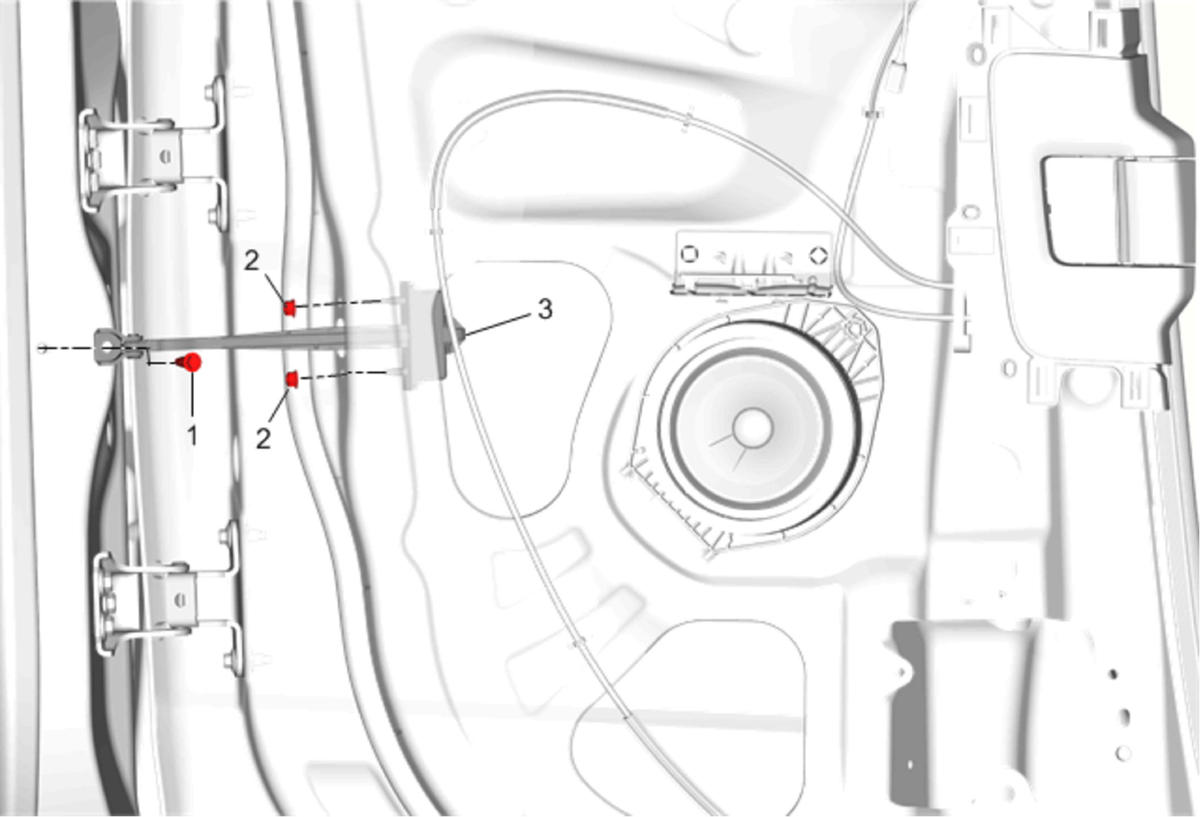

Callout	Component Name
Preliminary Procedure Place the door in the full open position. Remove the rear side door trim. Refer to Rear Side Door Trim Replacement (Extended Cab) Remove the water deflector.
1	Rear Side Door Check Link Fastener to Body CAUTION: Refer to Fastener Caution Tighten 22 N.m (16 lb ft)
2	Rear Side Door Check Link Fastener to Door (Qty: 2) Tighten 9 N.m (80 lb in)
3	Rear Side Door Check Link NOTE: Inspect the door for proper operation before installing the door trim.
