Pickup Box Endgate Body Side Hinge Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

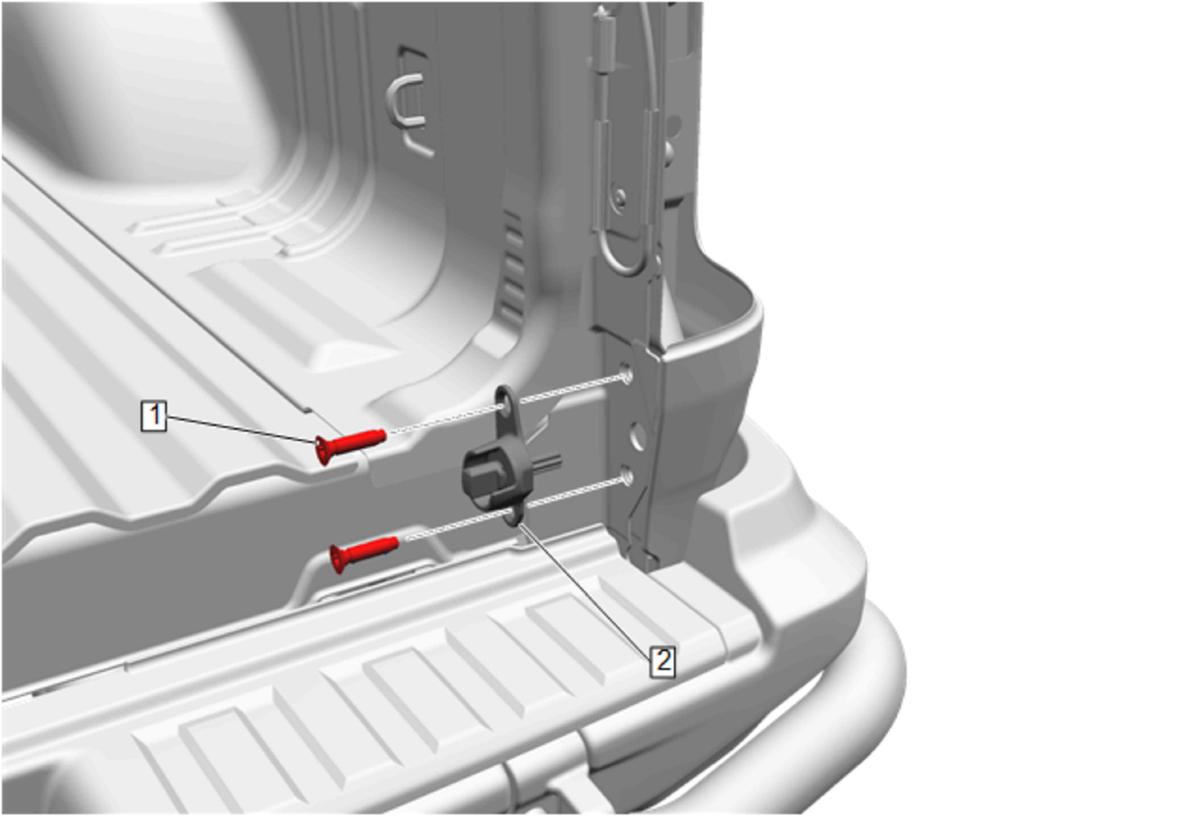

Callout	Component Name
Preliminary Procedures Pickup Box Endgate Replacement Pickup Box Endgate Dampener Replacement
1	Pickup Box Endgate Body Side Hinge Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 40 N.m (30 lb ft)
2	Pickup Box Endgate Body Side Hinge

Callout

Component Name

Preliminary Procedures

Pickup Box Endgate Body Side Hinge Bolt [2x]

CAUTION:

Tighten
40 N.m (30 lb ft)

Pickup Box Endgate Body Side Hinge
