Pickup Box Endgate Body Side Hinge Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY

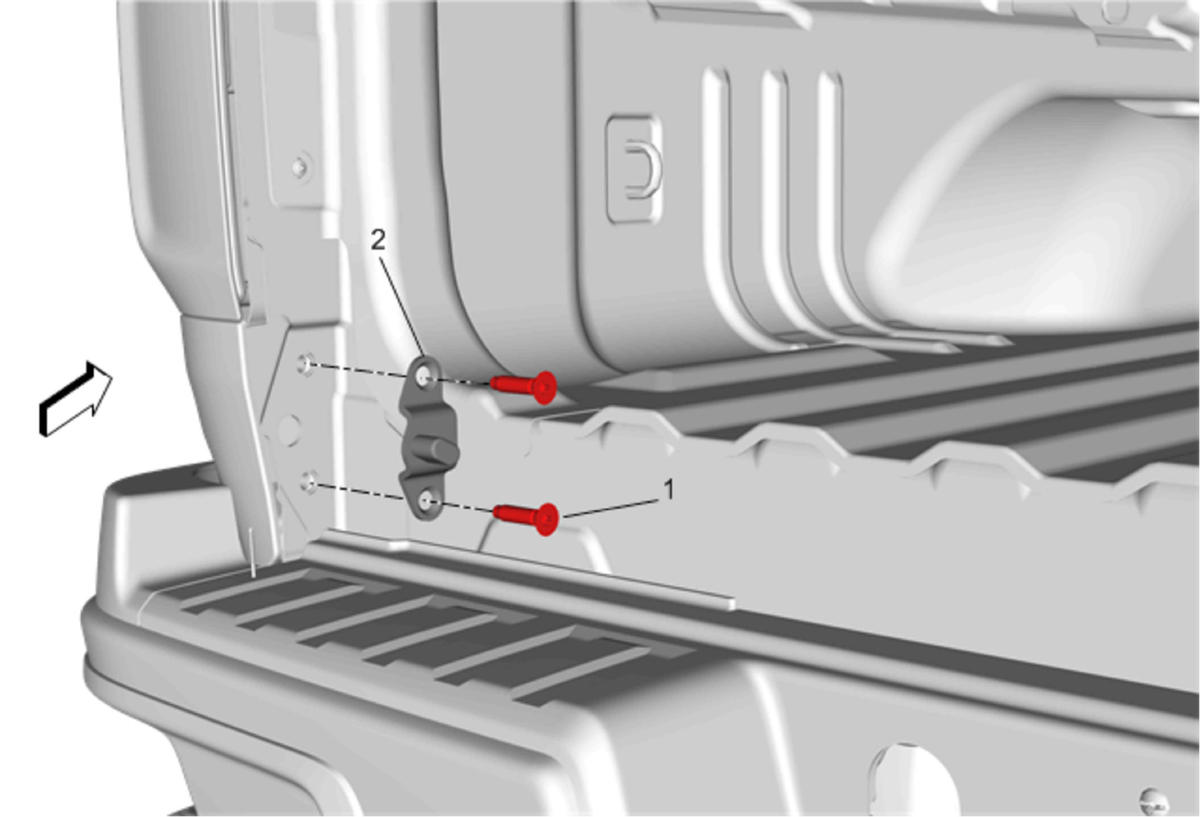

Callout	Component Name
Preliminary Procedure  Remove the pickup box endgate. Refer to Pickup Box Endgate Replacement .
1	Pickup Box Endgate Body Side Hinge Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  40 N.m (30 lb ft)
2	Pickup Box Endgate Body Side Hinge
