Hood Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

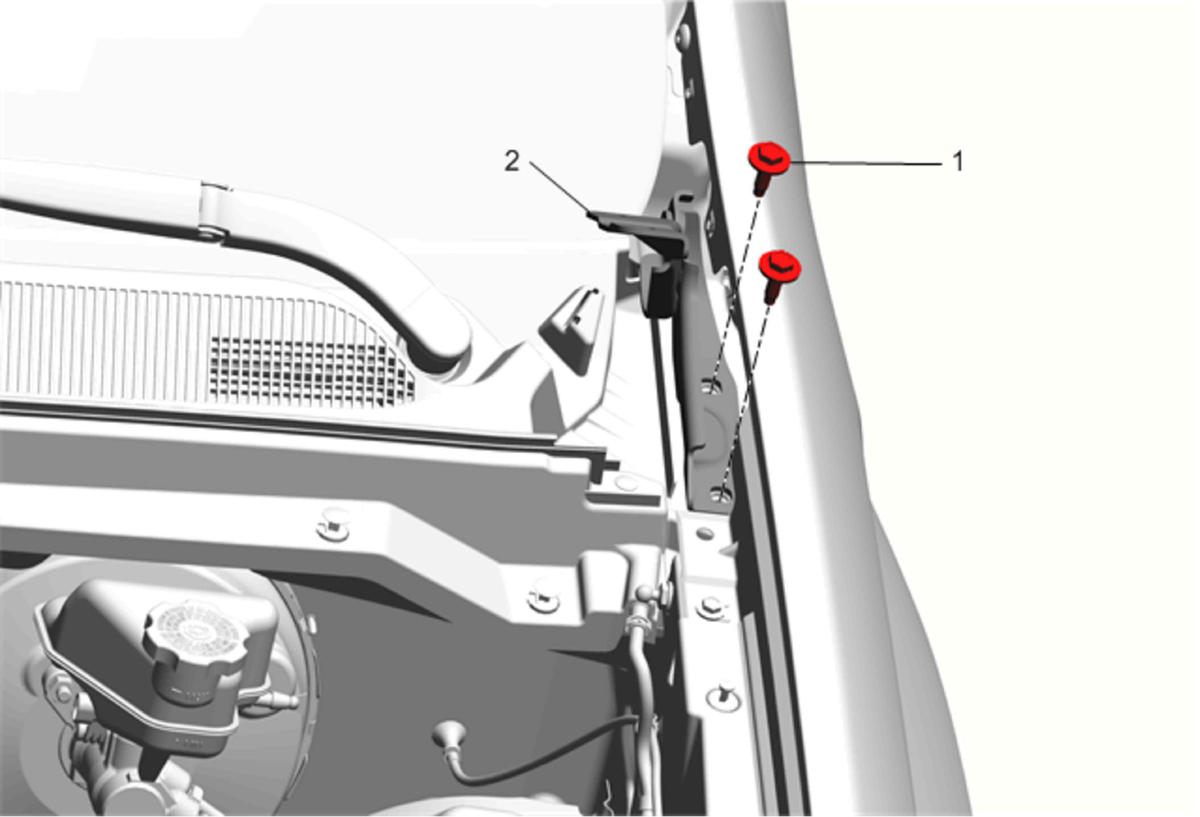

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedures Remove the hood. Refer to Hood Replacement . Remove the air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement .
1	Hood Hinge Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 32 ± 3 N.m (24 lb-ft ± 2 lb-ft)
2	Hood Hinge

Callout

Component Name

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedures

Remove the hood. Refer to Hood Replacement .
Remove the air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement .

Hood Hinge Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
32 ± 3 N.m (24 lb-ft ± 2 lb-ft)

Hood Hinge
