Liftgate Lower Trim Finish Panel Replacement

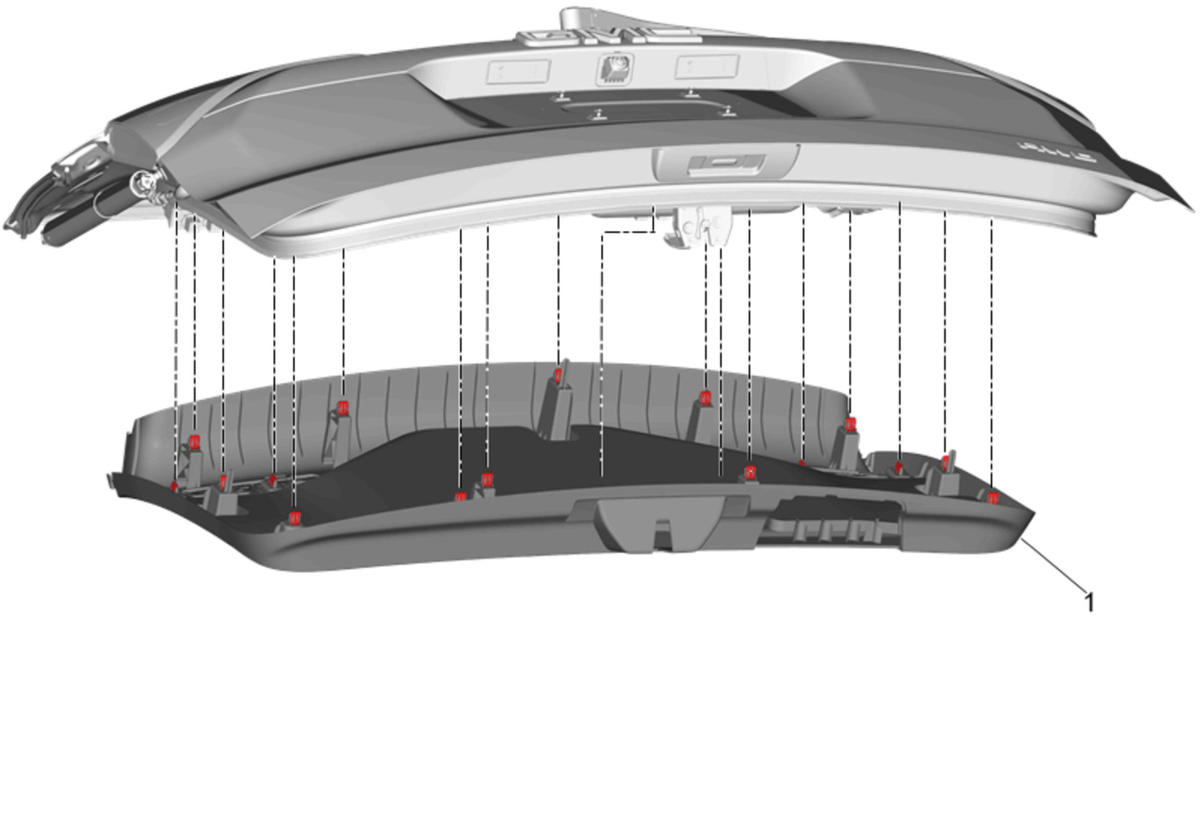

GM4375596Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Liftgate Upper Trim Finish Panel Replacement .
  2. Liftgate Trim Finish Panel Pull Cup Replacement .
1 Liftgate Lower Trim Finish Panel

Procedure

  1. Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly.
  2. Disconnect the electrical connector, if equipped.
