Liftgate Trim Finish Panel Pull Cup Replacement

Courtesy of GENERAL MOTORS COMPANY

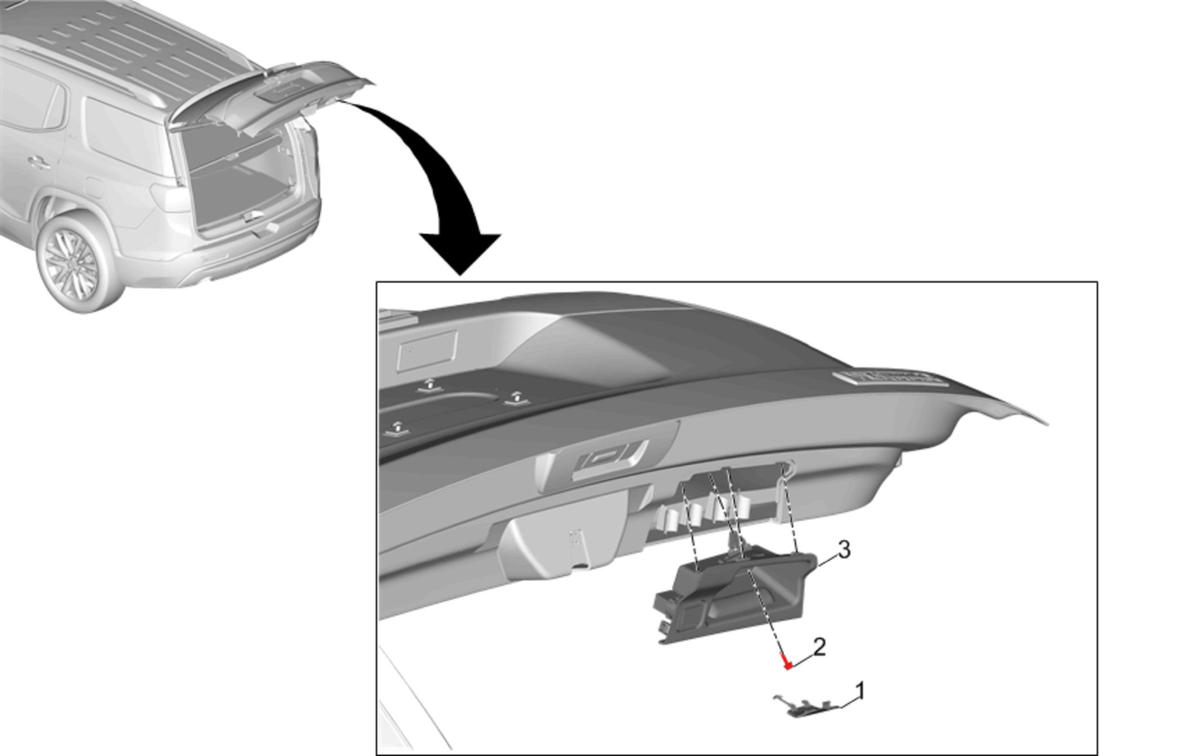

Callout	Component Name
1	Liftgate Pull Cup Cap
2	Liftgate Lower Trim Finish Panel Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Liftgate Trim Finish Panel Pull Cup Procedure Use a flat bladed plastic trim tool. Disconnect the electrical connector.

Callout

Component Name

Liftgate Pull Cup Cap

Liftgate Lower Trim Finish Panel Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Liftgate Trim Finish Panel Pull Cup

Procedure
