Front Side Door Check Link Replacement

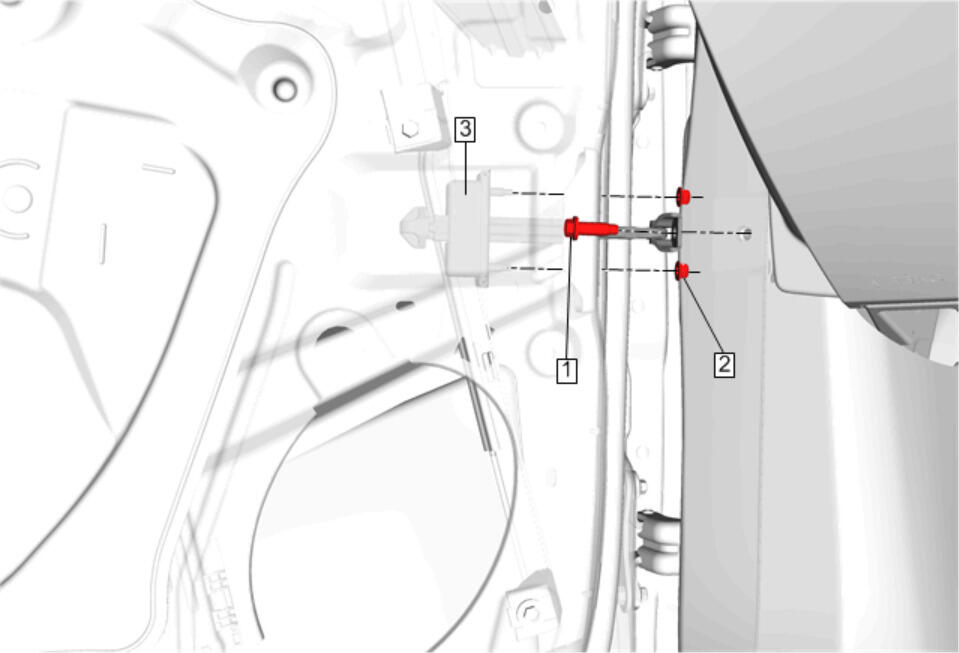

GM4278926Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Place the door in the full open position.
  2. Place the window in the full up position.
  3. Radio Front Side Door Speaker Replacement
1 Front Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Front Side Door Check Link Nut [2x]
Tighten
10 N.m (89 lb in)
3 Front Side Door Check Link
