Radio Front Side Door Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

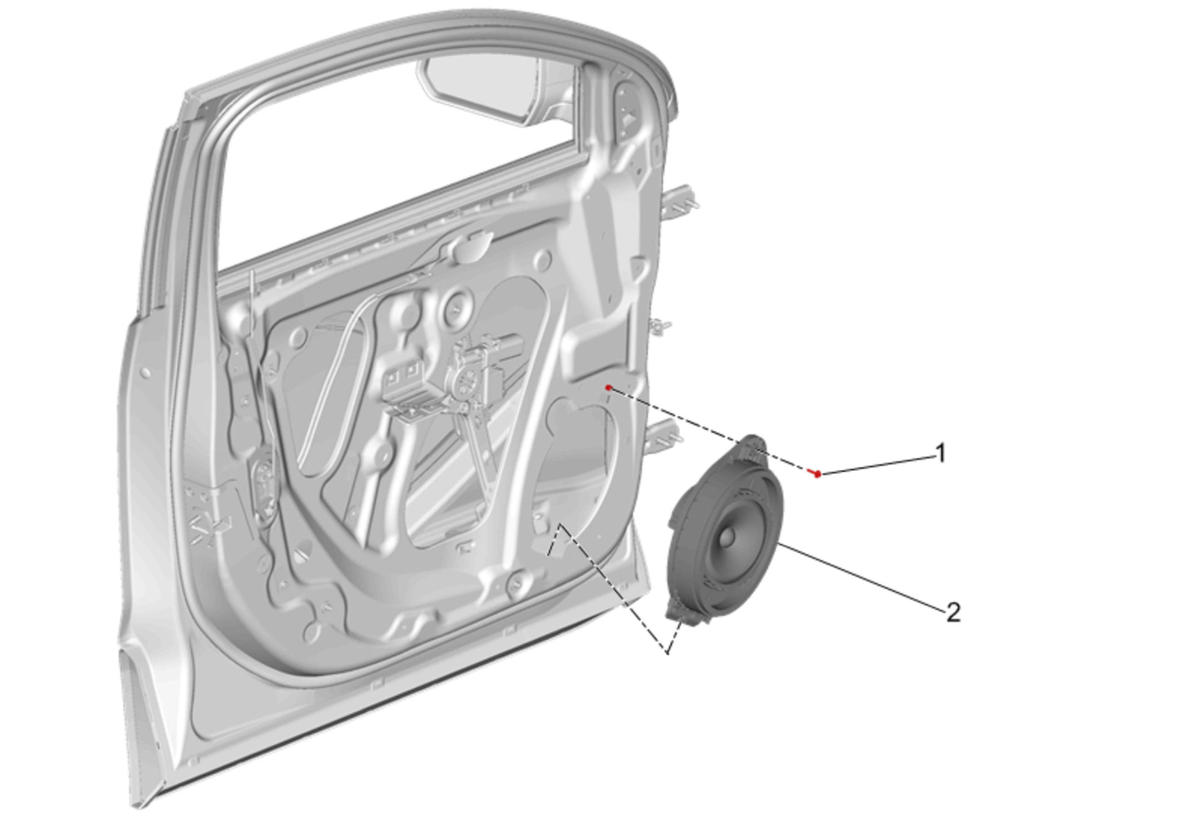

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Radio Front Side Door Speaker Fastener CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Front Side Door Speaker Procedure Disconnect the electrical connector. Release the wiring harness.

Callout

Component Name

Radio Front Side Door Speaker Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Front Side Door Speaker

Procedure
