Floor Console Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

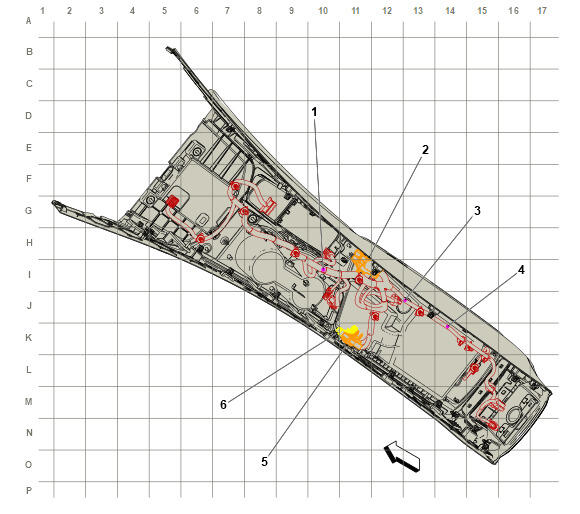

GM5844032Courtesy of GENERAL MOTORS COMPANY
Floor Console Harness Routing

Harness Name Callout
J305 Front Floor Console Wiring Harness 1
X206 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness X206 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness 2
J363 Floor Console Harness 3
J305 Front Floor Console Wiring Harness 4
X200 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness X200 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness 5
X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness 6
