Engine Harness Routing - Right Rear (LF4)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

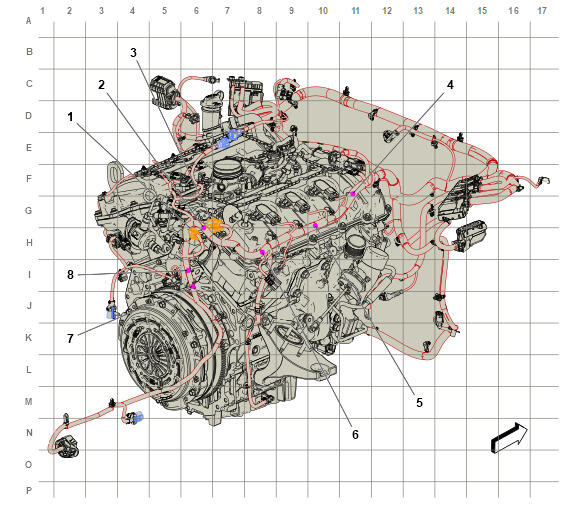

Engine Harness Routing - Right Rear (LF4)
| Harness Name | Callout |
|---|---|
| X161 Engine Wiring Harness to Fuel Injector Wiring Harness (LF4) X161 Engine Wiring Harness to Fuel Injector Wiring Harness (LF4) | 1 |
| J102 Engine Wiring Harness | 2 |
| X160 Engine Wiring Harness to Fuel Injector Wiring Harness X160 Engine Wiring Harness to Fuel Injector Wiring Harness (L3B)X160 Engine Wiring Harness to Fuel Injector Wiring Harness (LF4)X160 Engine Wiring Harness to Fuel Injector Wiring Harness (LSY) | 3 |
| J120 Engine Wiring Harness | 4 |
| J112 Engine Wiring Harness | 5 |
| J117 Engine Wiring Harness | 6 |
| J133 Engine Wiring Harness (LF4) | 7 |
| J101 Engine Wiring Harness | 8 |
