X160 Engine Wiring Harness to Fuel Injector Wiring Harness (L3B)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

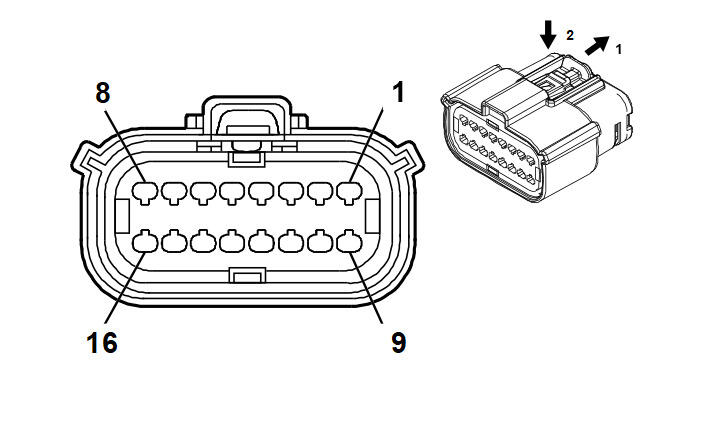

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 33386201
- Service Connector: 13584788
- Description: 16-Way F 1.5 MX Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Fuel Injector Wiring Harness
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19368973 |
J-35616-2A (GY) |
J-38125-217 |
| II |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT / GY |
496 |
I |
- |
Knock Sensor 1 Signal |
1 |
0.5 |
VT / GY |
496 |
II |
- |
| 2 |
0.75 |
BN |
4801 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 1 |
2 |
0.75 |
BN |
4801 |
II |
- |
| 3 |
0.5 |
WH / RD |
480 |
I |
- |
Engine Control Vehicle Sensors 5 Volt Reference 1 |
3 |
0.5 |
WH / RD |
480 |
II |
- |
| 4 |
0.75 |
GY / BU |
4804 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 4 |
4 |
0.75 |
GY / BU |
4804 |
II |
- |
| 5 |
- |
- |
- |
- |
- |
Not Occupied |
5 |
- |
- |
- |
- |
- |
| 6 |
0.75 |
GN |
4803 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 3 |
6 |
0.75 |
GN |
4803 |
II |
- |
| 7 |
0.75 |
BU |
4802 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 2 |
7 |
0.75 |
BU |
4802 |
II |
- |
| 8 |
0.5 |
WH / GY |
1876 |
I |
- |
Knock Sensor 2 Signal |
8 |
0.5 |
WH / GY |
1876 |
II |
- |
| 9 |
0.5 |
BK / YE |
1716 |
I |
- |
Knock Sensor Low Reference 1 |
9 |
0.5 |
BK / YE |
1716 |
II |
- |
| 10 |
0.75 |
BN / WH |
4901 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 1 |
10 |
0.75 |
BN / WH |
4901 |
II |
- |
| 11 |
0.5 |
BU / WH |
2918 |
I |
- |
Fuel Rail Pressure Sensor Signal |
11 |
0.5 |
BU / WH |
2918 |
II |
- |
| 12 |
0.5 |
BK / GN |
580 |
I |
- |
Engine Control Sensors Low Reference 2 |
12 |
0.5 |
BK / GN |
580 |
II |
- |
| 13 |
0.75 |
BU / WH |
4904 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 4 |
13 |
0.75 |
BU / WH |
4904 |
II |
- |
| 14 |
0.75 |
GN / GY |
4903 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 3 |
14 |
0.75 |
GN / GY |
4903 |
II |
- |
| 15 |
0.75 |
BU / GY |
4902 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 2 |
15 |
0.75 |
BU / GY |
4902 |
II |
- |
| 16 |
0.5 |
BK / GY |
2303 |
I |
- |
Knock Sensor Low Reference 2 |
16 |
0.5 |
BK / GY |
2303 |
II |
- |
