Engine Harness Routing - Left Front (LSY+F46)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

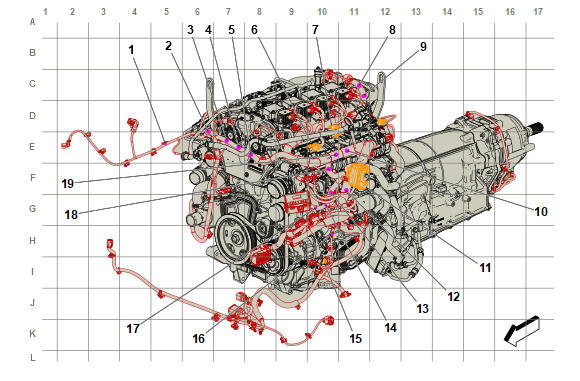

Engine Harness Routing - Left Front (LSY+F46)
| Harness Name | Callout |
|---|---|
| J107 Engine Wiring Harness | 1 |
| J108 Engine Wiring Harness | 2 |
| J113 Engine Wiring Harness | 3 |
| J143 Engine Extension Wiring Harness (LSY) | 4 |
| J101 Engine Wiring Harness | 5 |
| X160 Engine Wiring Harness to Fuel Injector Wiring Harness X160 Engine Wiring Harness to Fuel Injector Wiring Harness (L3B)X160 Engine Wiring Harness to Fuel Injector Wiring Harness (LF4)X160 Engine Wiring Harness to Fuel Injector Wiring Harness (LSY) | 6 |
| X132 Engine Wiring Harness to Engine Extension Wiring Harness X132 Engine Wiring Harness to Engine Extension Wiring Harness | 7 |
| J102 Engine Wiring Harness | 8 |
| J114 Engine Wiring Harness | 9 |
| J122 Engine Wiring Harness | 10 |
| X180 Engine Wiring Harness to Forward Lamp Wiring Harness X180 Engine Wiring Harness to Forward Lamp Wiring Harness | 11 |
| J104 Engine Wiring Harness | 12 |
| J120 Engine Wiring Harness | 13 |
| J105 Engine Wiring Harness | 14 |
| X121 Engine Wiring Harness to Engine Oil Level Indicator Control Module Wiring Harness X121 Engine Wiring Harness to Engine Oil Level Indicator Control Module Wiring Harness | 15 |
| J117 Engine Wiring Harness | 16 |
| J123 Engine Wiring Harness | 17 |
| J109 Engine Wiring Harness | 18 |
| J112 Engine Wiring Harness | 19 |
