Top of Engine Components (L3B)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

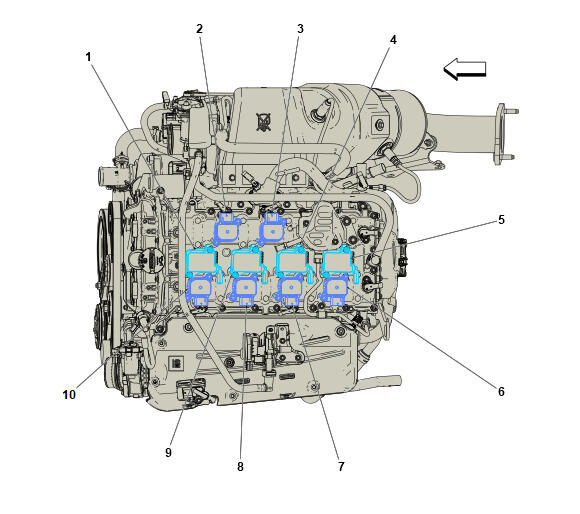

Top of Engine Components (L3B)
| Component Name | Callout |
|---|---|
| T8A Ignition Coil 1 T8A Ignition Coil 1 (L3B)T8A Ignition Coil 1 (LF4)T8A Ignition Coil 1 (LSY) | 1 |
| M130B Exhaust Camshaft Profile Actuator 2 M130B Exhaust Camshaft Profile Actuator 2 | 2 |
| M130C Exhaust Camshaft Profile Actuator 3 M130C Exhaust Camshaft Profile Actuator 3 | 3 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 (L3B)T8C Ignition Coil 3 (LF4)T8C Ignition Coil 3 (LSY) | 4 |
| T8D Ignition Coil 4 T8D Ignition Coil 4 (L3B)T8D Ignition Coil 4 (LF4)T8D Ignition Coil 4 (LSY) | 5 |
| M129D Intake Camshaft Profile Actuator 4 M129D Intake Camshaft Profile Actuator 4 | 6 |
| M129C Intake Camshaft Profile Actuator 3 M129C Intake Camshaft Profile Actuator 3 | 7 |
| M129B Intake Camshaft Profile Actuator 2 M129B Intake Camshaft Profile Actuator 2 | 8 |
| T8B Ignition Coil 2 T8B Ignition Coil 2 (L3B)T8B Ignition Coil 2 (LF4)T8B Ignition Coil 2 (LSY) | 9 |
