Passenger Compartment - Left Rear
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

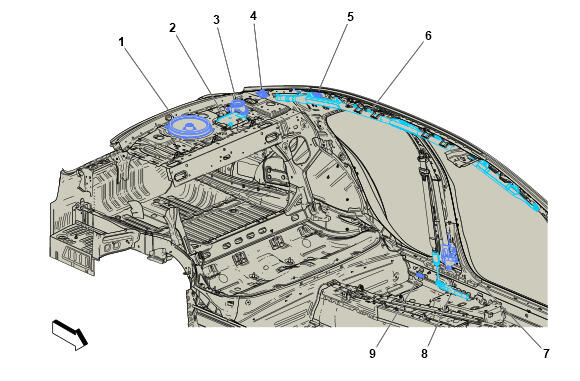

Passenger Compartment - Left Rear
| Harness Name | Callout |
|---|---|
| P19AC Radio Rear Speaker P19AC Radio Rear Speaker (UQG)P19AC Radio Rear Speaker (UQS) | 1 |
| K124 Image Processing Module (UGN) K124 Image Processing Module X1 (-UKL)K124 Image Processing Module X1 (UKL)K124 Image Processing Module X2 (-UKL)K124 Image Processing Module X2 (UKL) | 2 |
| P19AN Radio Rear Surround Speaker - Left (UQS) P19AN Radio Rear Surround Speaker - Left | 3 |
| R14L Radio Antenna Ground Coil - Left R14L Radio Antenna Ground Coil - Left X1R14L Radio Antenna Ground Coil - Left X2 | 4 |
| T35AF Radio Antenna Amplifier - AM/FM T35AF Radio Antenna Amplifier - AM/FM | 5 |
| F105LR Front and Rear Row Roof Rail Airbag - Left Rear F105LR Front and Rear Row Roof Rail Airbag - Left Rear | 6 |
| F112D Front Seat Belt Retractor - Driver F112D Front Seat Belt Retractor - Driver | 7 |
| F113D Front Seat Belt Anchor Plate Tensioner - Driver F113D Front Seat Belt Anchor Plate Tensioner - Driver | 8 |
| B63LRB Airbag Side Impact Rear Sensor - Left Sill B63LRB Airbag Side Impact Rear Sensor - Left Sill | 9 |
