P19AC Radio Rear Speaker (UQS)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

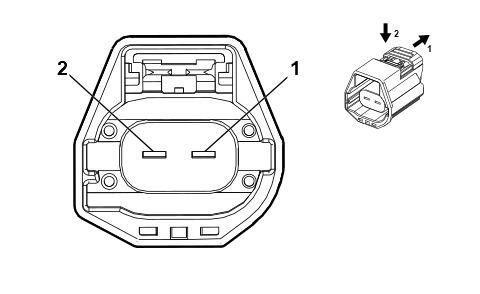

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 35049058
- Service Connector: 84847257
- Description: 2-Way F 2.8 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
GN / BK |
1794 |
Left/Rear Subwoofer [-] Control |
I |
- |
| 2 |
1 |
BU / GY |
346 |
Left/Rear Subwoofer [+] Control |
I |
- |
