Headliner and Roof Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

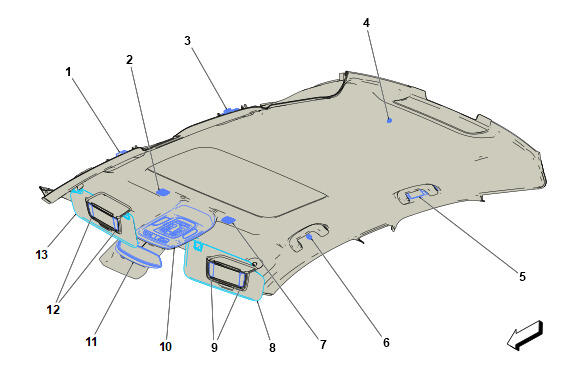

Headliner and Roof Components
| Component Name | Callout |
|---|---|
| B312LF Active Noise Cancellation Microphone - Left Front B312LF Active Noise Cancellation Microphone - Left Front | 1 |
| B24LF Mobile Telephone Microphone - Left Front B24LF Mobile Telephone Microphone - Left Front | 2 |
| E37H Roof Rail Rear Seat Position Reading and Courtesy Lamp - Left E37H Roof Rail Rear Seat Position Reading and Courtesy Lamp - Left | 3 |
| B312R Active Noise Cancellation Microphone - Rear B312R Active Noise Cancellation Microphone - Rear | 4 |
| E37J Roof Rail Rear Seat Position Reading and Courtesy Lamp - Right E37J Roof Rail Rear Seat Position Reading and Courtesy Lamp - Right | 5 |
| B312RF Active Noise Cancellation Microphone - Right Front B312RF Active Noise Cancellation Microphone - Right Front | 6 |
| B24RF Mobile Telephone Microphone - Right Front B24RF Mobile Telephone Microphone - Right Front | 7 |
| A3R Sunshade - Right A3R Sunshade - Right | 8 |
| E31R Sunshade Mirror Lamp - Right | 9 |
| A103 Roof Console A103 Roof Console X1A103 Roof Console X2 | 10 |
| A10 Inside Rearview Mirror A10 Inside Rearview Mirror | 11 |
| E31L Sunshade Mirror Lamp - Left | 12 |
| A3L Sunshade - Left A3L Sunshade - Left | 13 |
