E37H Roof Rail Rear Seat Position Reading and Courtesy Lamp - Left
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

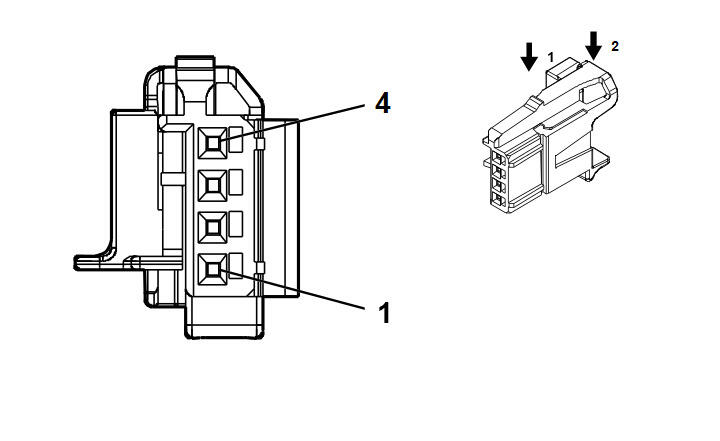

Connector Part Information
- Harness Type: Roof Wiring Harness
- OEM Connector: 35159691
- Service Connector: 84766302
- Description: 4-Way F 0.64 MQS Series
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN / VT |
4786 |
Dome/Reading Lamp Enable Signal |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK |
2350 |
Ground |
I |
- |
| 4 |
0.35 |
GY |
157 |
Interior Lamp Control |
I |
- |
