Headliner Harness Routing (Extended Cab)

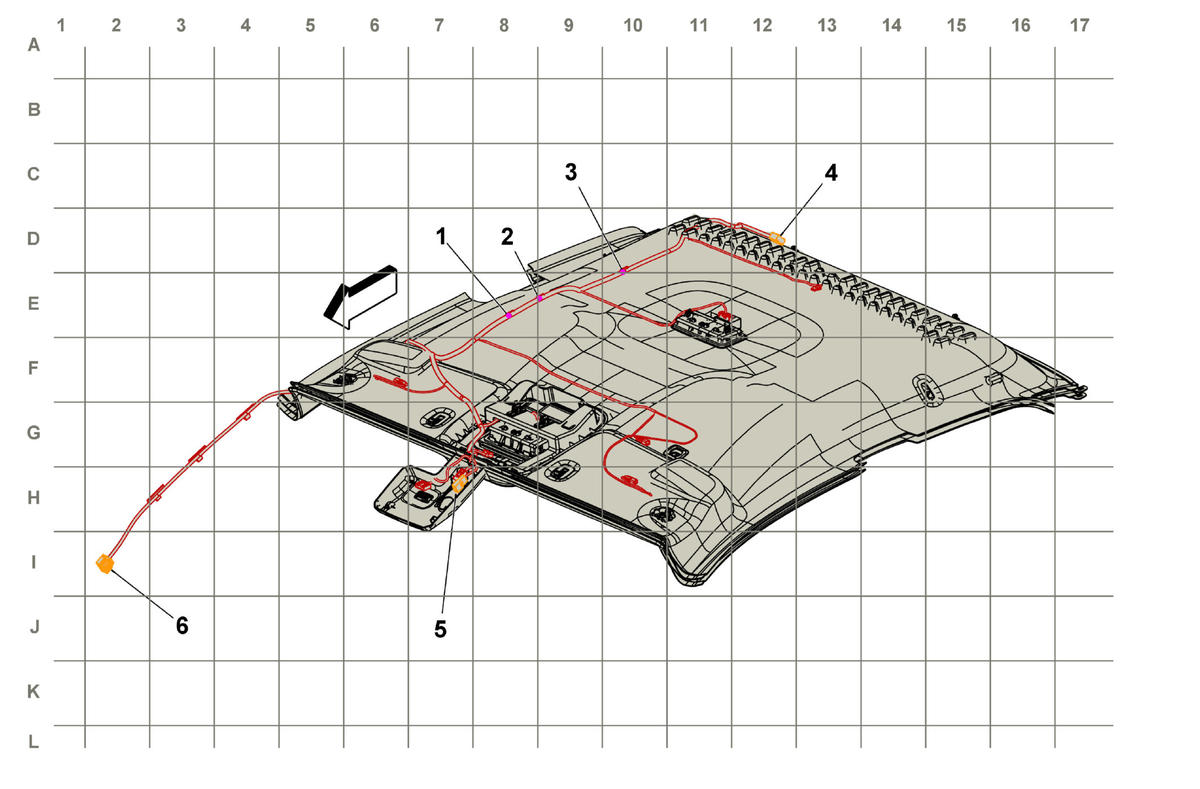

GM3926888Courtesy of GENERAL MOTORS COMPANY
Items
J307 Headliner Harness
J306 Headliner Harness
J308 Headliner Harness
X301 Headliner Harness to Body Harness (22 cavities) X301 Headliner Harness to Body Harness
X304 Body Harness to Antenna Harness (C68) X304 Body Harness to Antenna Harness (-U2K)X304 Body Harness to Antenna Harness (U2K)
X300 Headliner Harness to Body Harness (16 cavities) X300 Headliner Harness to Body Harness (IOR)
