Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

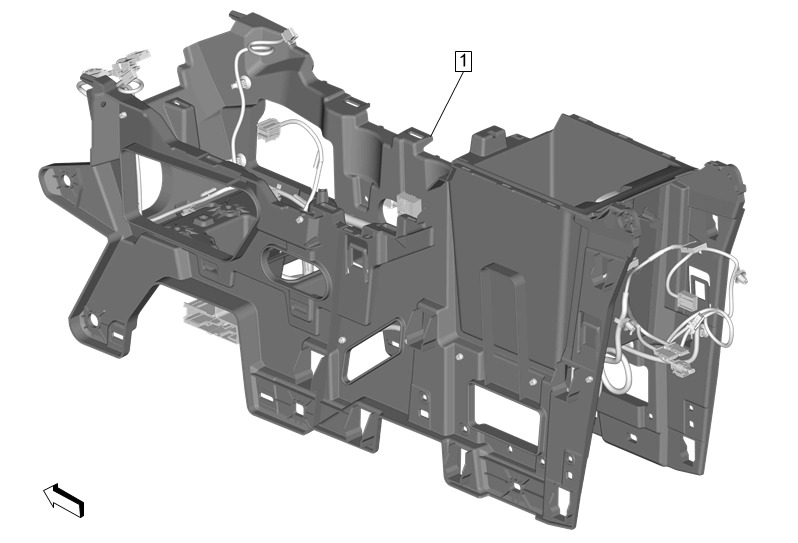

Front Floor Lower Console (1)

Courtesy of GENERAL MOTORS COMPANY

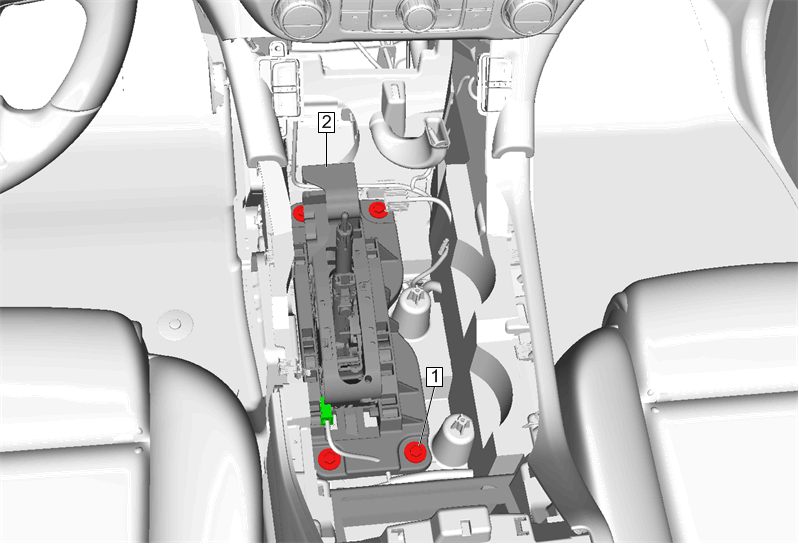

Transmission Control Assembly (2) - Install - Transmission Control Replacement (With Base) , or Transmission Control Replacement (Without Base)

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cup Holder Guide - Right Side (2) - Install - Front Floor Console Rear Cup Holder Guide Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cup Holder Guide - Left Side (2) - Install - Front Floor Console Rear Cup Holder Guide Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (1) - Install - Front Floor Console Armrest Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel - Right Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel - Left Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Assembly (1) - Install - Front Floor Console Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

Transmission Control Lever Knob (3) - Install - Transmission Control Lever Knob Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (3) - Install - Front Floor Console Extension Panel Replacement - Left Side
