Front Floor Console Rear Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

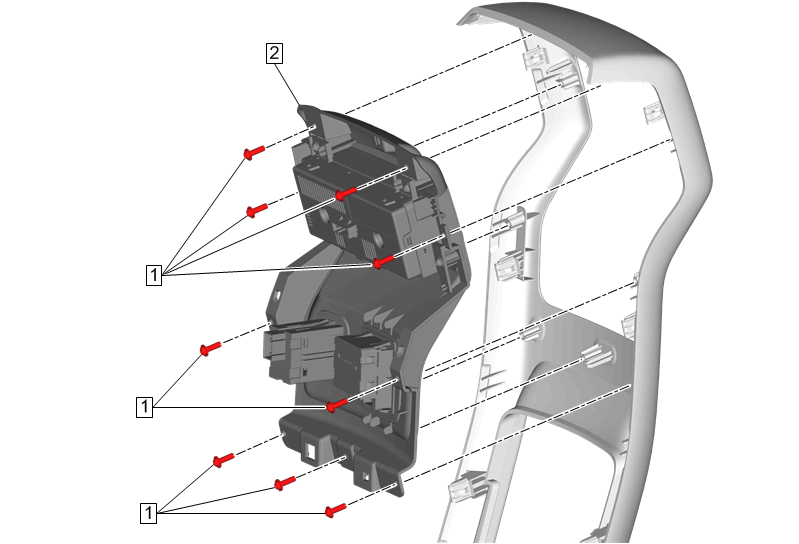

Callout	Component Name
Preliminary Procedure  Low Frequency Console Antenna Replacement (All Terrain) , or Low Frequency Console Antenna Replacement (Except All Terrain)
1	Front Floor Console Bolt [9x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Front Floor Console Rear Trim Plate Procedure  Transfer components as necessary.
