Low Frequency Console Antenna Replacement (Except All Terrain)

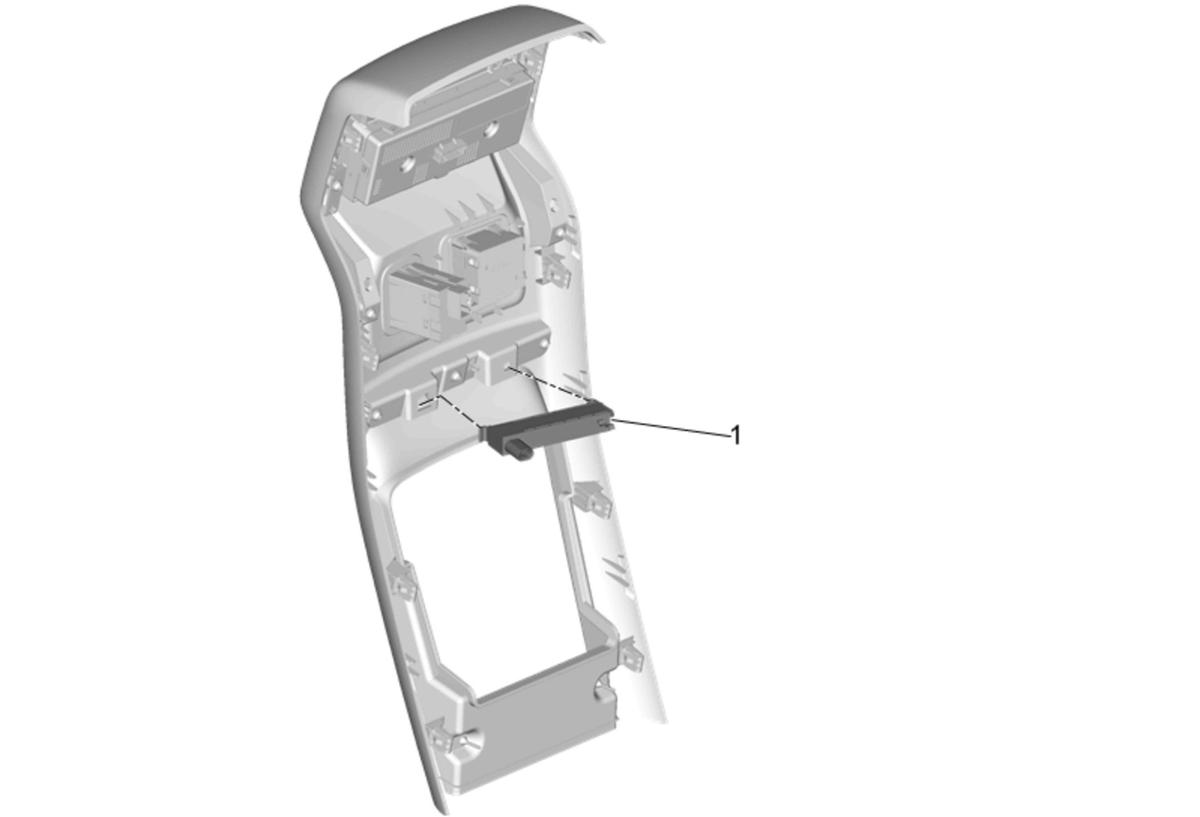

GM4422630Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement
1 Low Frequency Console Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tab.
