Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine front cover. Engine Front Cover Replacement
  2. Reset the tensioner plunger and inspect for proper operation. Camshaft Timing Chain and Sprocket Cleaning and Inspection

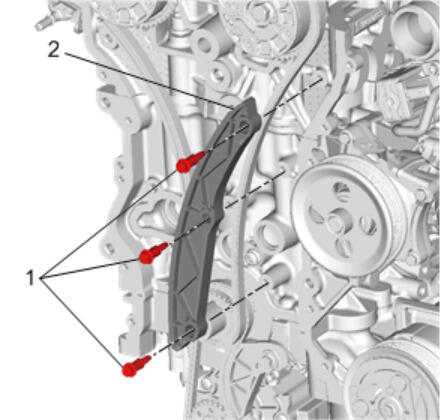

    3. Fig 1: Timing Chain Guide And Fasteners
    GM3977673Courtesy of GENERAL MOTORS COMPANY
  3. Remove the timing chain guide fasteners (1) then remove the timing chain guide (2). Timing Chain Upper Guide Replacement

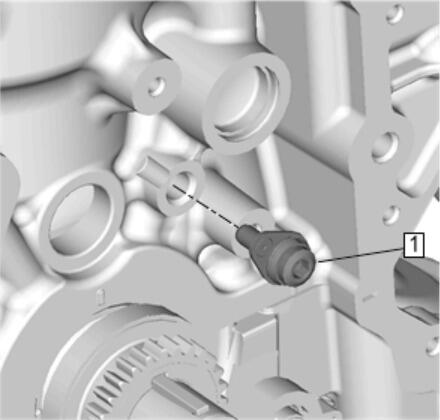

    4. Fig 2: Timing Chain Oil Nozzle
    GM3978605Courtesy of GENERAL MOTORS COMPANY
  4. Remove the timing chain oil nozzle (1).
  5. For camshaft timing chain, oil nozzle, sprocket and tensioner cleaning and inspection, refer to Camshaft Timing Chain and Sprocket Cleaning and Inspection .
