Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Intake Manifold Cover -Intake Manifold Cover Replacement
  2. Reposition away Fuel Feed Front Pipe -Fuel Feed Front Pipe Replacement
  3. Remove Evaporative Emission Canister Purge Solenoid Valve -Evaporative Emission Canister Purge Solenoid Valve Replacement

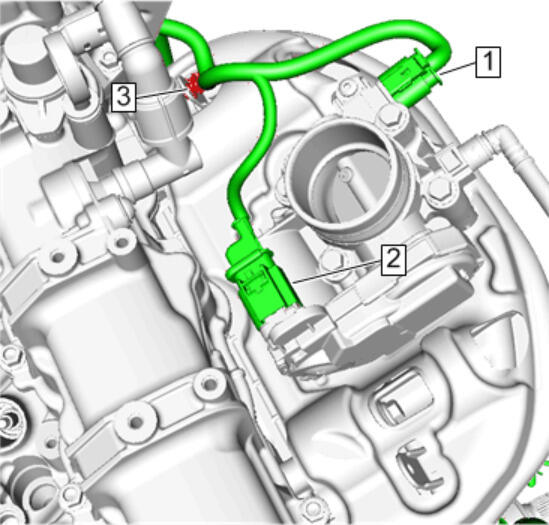

    4. Fig 1: Electrical Connectors
    GM4594063Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the electrical connectors (1, 2)
  5. Remove Wiring Harness Retainer (3)
  6. Remove Throttle Body Assembly - Throttle Body Assembly Replacement

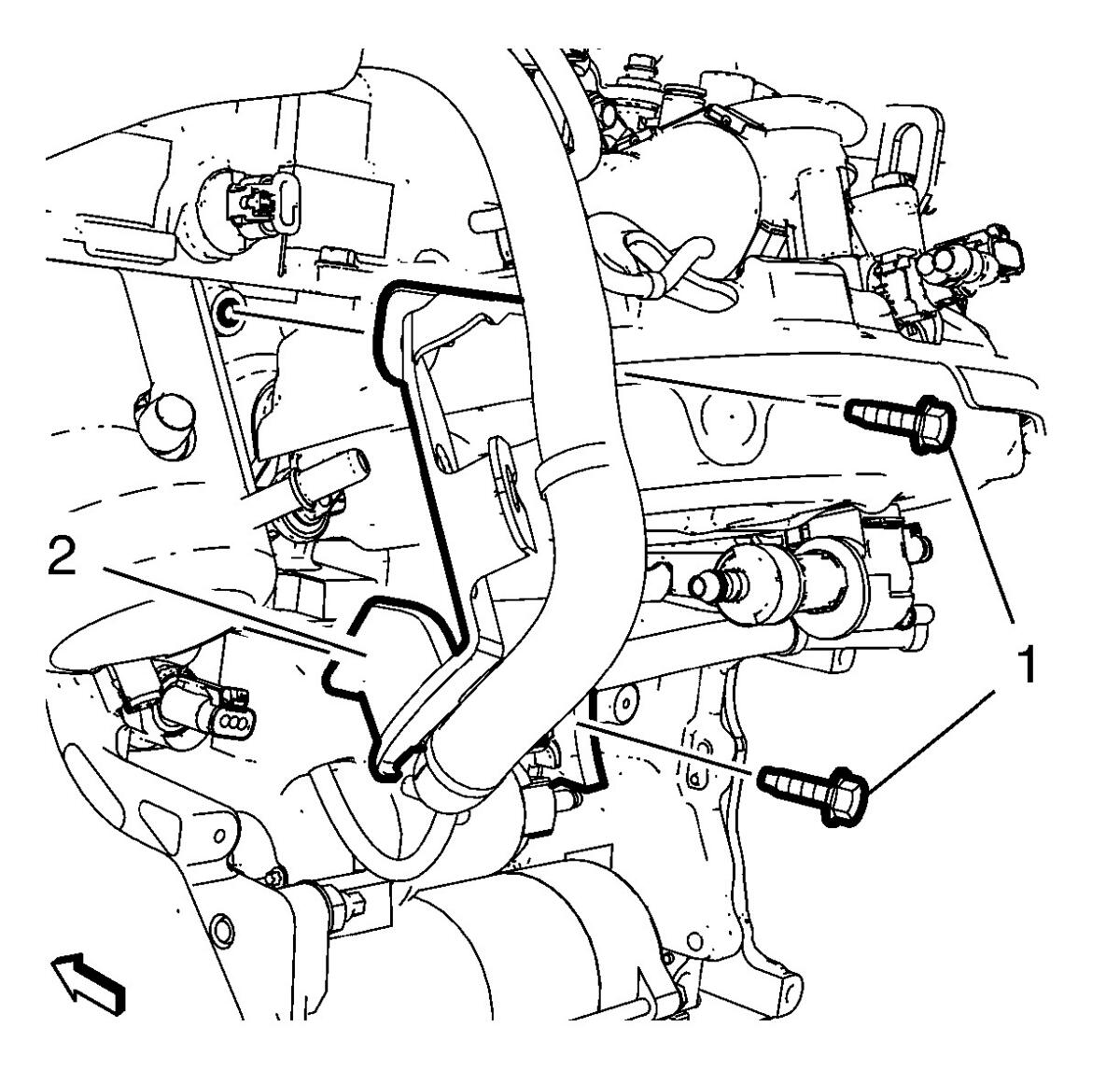

    7. Fig 2: Engine Wiring Harness Bracket
    GM3682523Courtesy of GENERAL MOTORS COMPANY
  7. Remove Engine Wiring Harness Bracket Bolt (1)
  8. Reposition away Engine Wiring Harness Bracket (2)

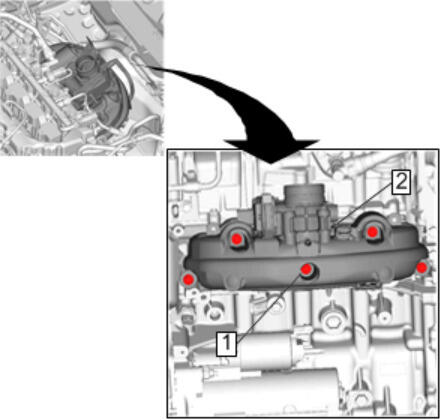

    9. Fig 3: Intake Manifold And Fasteners
    GM3974138Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Bolt retainers keep the bolts in position on the assembly. If the bolts are removed from the assembly, the 2 shorter bolts go to the outside lower locations.

  9. Fully loosen the intake manifold fasteners (1) then remove the intake manifold (2).
    10. Fig 4: Intake Manifold Gasket
    GM3974149Courtesy of GENERAL MOTORS COMPANY
  10. Remove Intake Manifold Gasket (2) and DISCARD
  11. Clean and inspect the intake manifold. Intake Manifold Cleaning and Inspection
  12. If replacing the intake manifold, transfer all necessary parts.
