Intake Manifold Cleaning And Inspection

WARNING: This page is about a different variant/trim than selected.

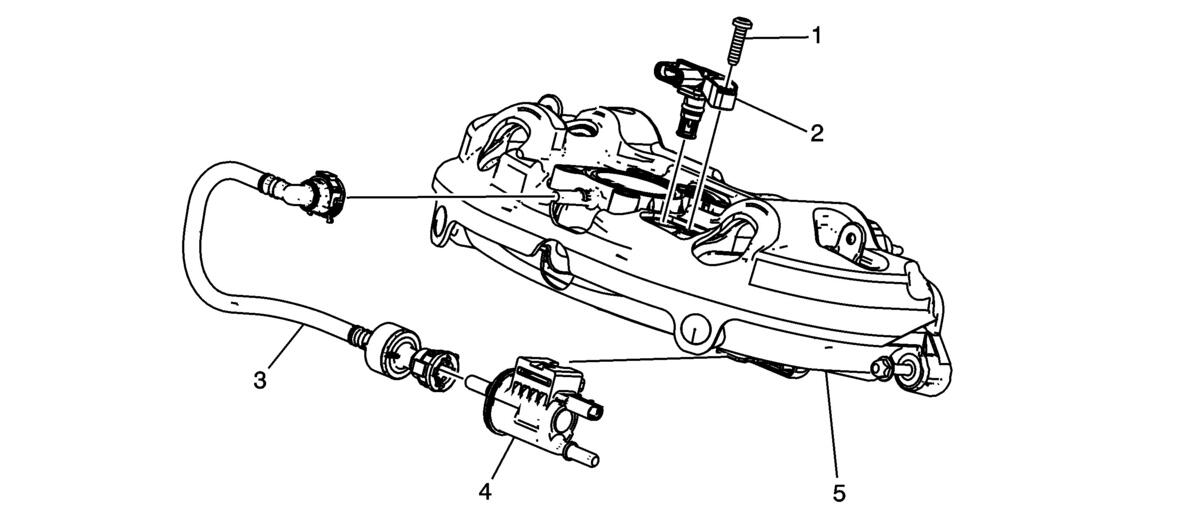

Fig 1: Intake Manifold Cleaning and Inspection

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove all components prior to cleaning and inspection. Inspect each component.
1	Intake Air Pressure and Temperature Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Intake Air Pressure and Temperature Sensor
3	Evaporative Emission Canister Purge Tube Assembly
4	Evaporative Emission Canister Purge Valve
5	Intake Manifold
