Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Camshaft Cover Replacement
  2. Remove Engine Mount Bracket Replacement
  3. Remove Crankshaft Balancer Replacement
  4. Remove Drive Belt Tensioner Replacement
  5. Remove Generator Replacement (LYX)
  6. Drain the engine oil. Engine Oil and Oil Filter Replacement
  7. Remove Upper Oil Pan Replacement

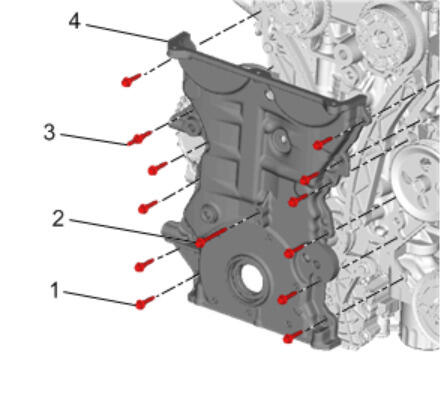

    8. Fig 1: Identifying Fasteners
    GM3974769Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the location of the long fastener (2), short fasteners (1) and stud fastener (3) for correct installation.

  8. Remove Engine Front Cover (4)Engine Front Cover Removal
  9. Transfer parts as needed.
  10. Install a NEW seal. Crankshaft Front Oil Seal Replacement
