Engine Front Cover Removal

WARNING: This page is about a different variant/trim than selected.

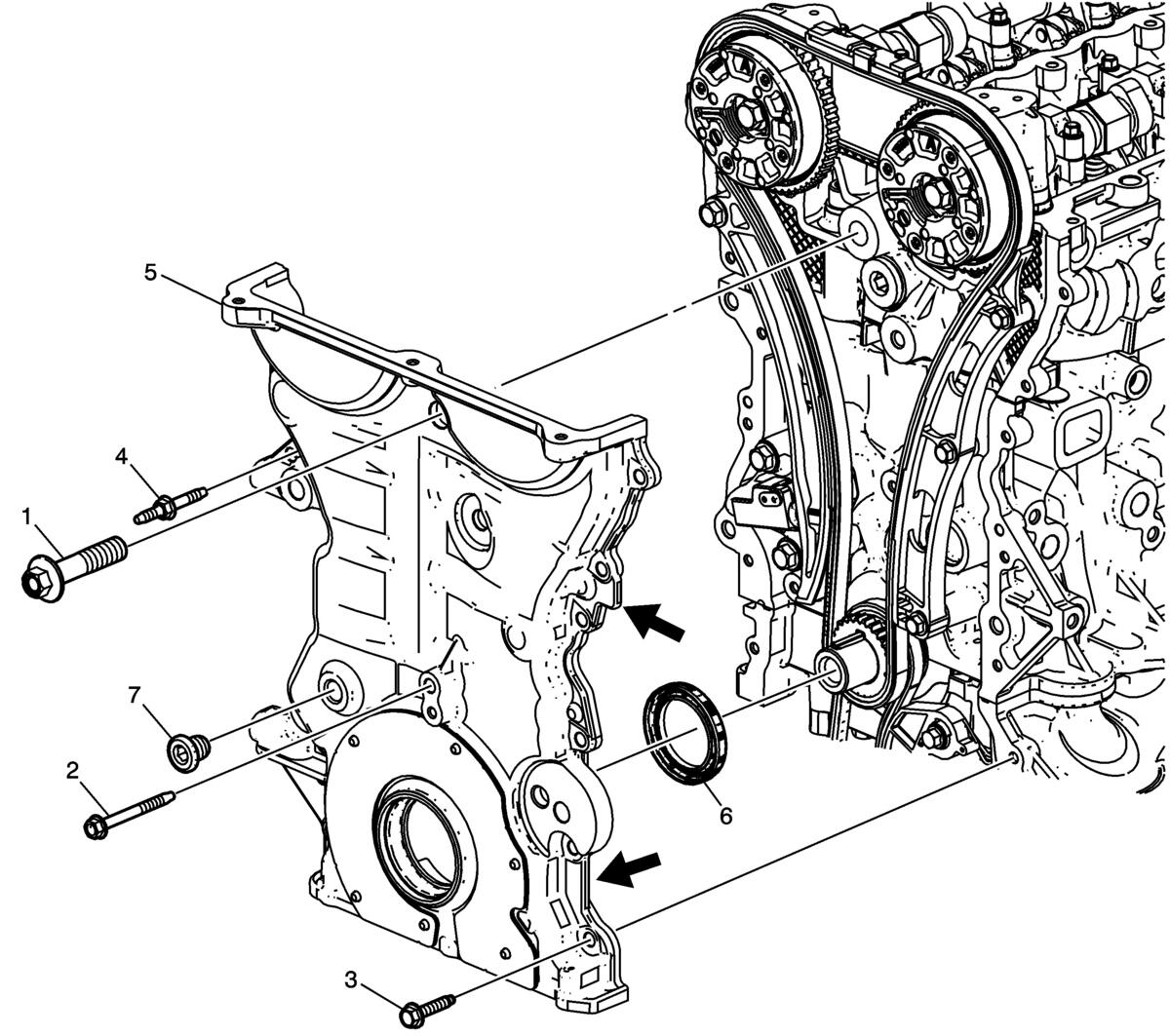

Fig 1: Engine Front Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Engine Front Cover Bolt (Qty: 1)
2	Engine Front Cover Bolt (Qty: 1)
3	Engine Front Cover Bolt (Qty: 11)
4	Engine Front Cover Stud (Qty: 1)
5	Engine Front Cover Procedure Locate pry-points on the engine front cover to loosen the cover from the engine block. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Clean and inspect the engine front cover mating surface.
6	Crankshaft Front Oil Seal Procedure Discard the seal. Special Tools EN-51096 Crankshaft Seal Remover For equivalent regional tools, refer to Special Tools .
7	Engine Front Cover Hole Plug
