Turbocharger Wastegate Regulator Solenoid Valve Hose Replacement (Compressor Outlet To Solenoid)

WARNING: This page is about a different variant/trim than selected.

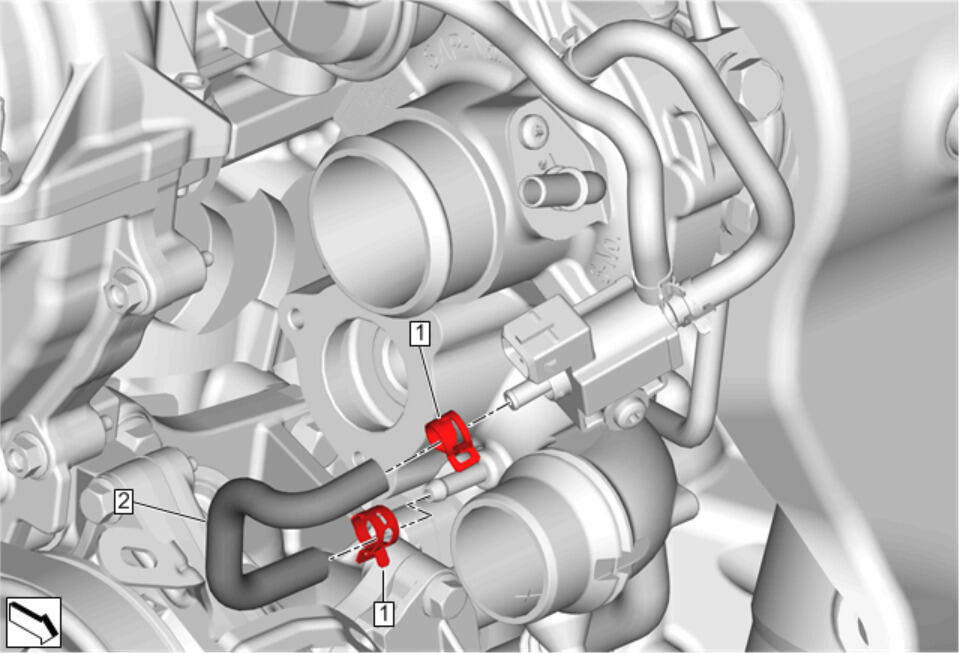

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve Hose (Compressor Outlet to Solenoid Valve)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Turbocharger Bypass Valve Solenoid Replacement
1	Turbocharger Wastegate Regulator Solenoid Valve Hose Clamp
2	Turbocharger Wastegate Regulator Solenoid Valve Hose
