Turbocharger Bypass Valve Solenoid Replacement

WARNING: This page is about a different variant/trim than selected.

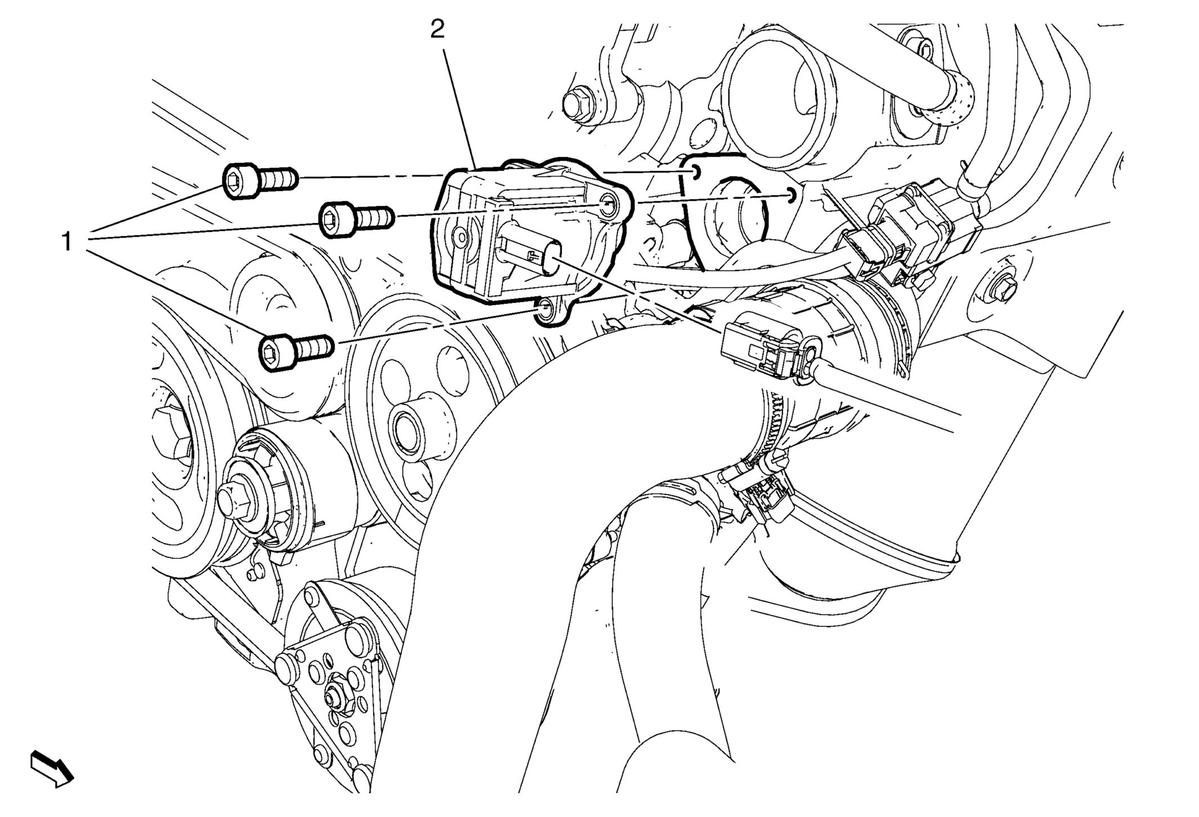

Fig 1: Turbocharger Bypass Valve Solenoid

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement
1	Turbocharger Bypass Valve Solenoid Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Turbocharger Bypass Valve Solenoid Procedure Disconnect the electrical connector. Perform the intake system learned values reset. Intake System Learned Values Reset

Callout

Component Name

Turbocharger Bypass Valve Solenoid Bolt [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Turbocharger Bypass Valve Solenoid

Procedure

Disconnect the electrical connector.
Perform the intake system learned values reset. Intake System Learned Values Reset
