Installation Procedure

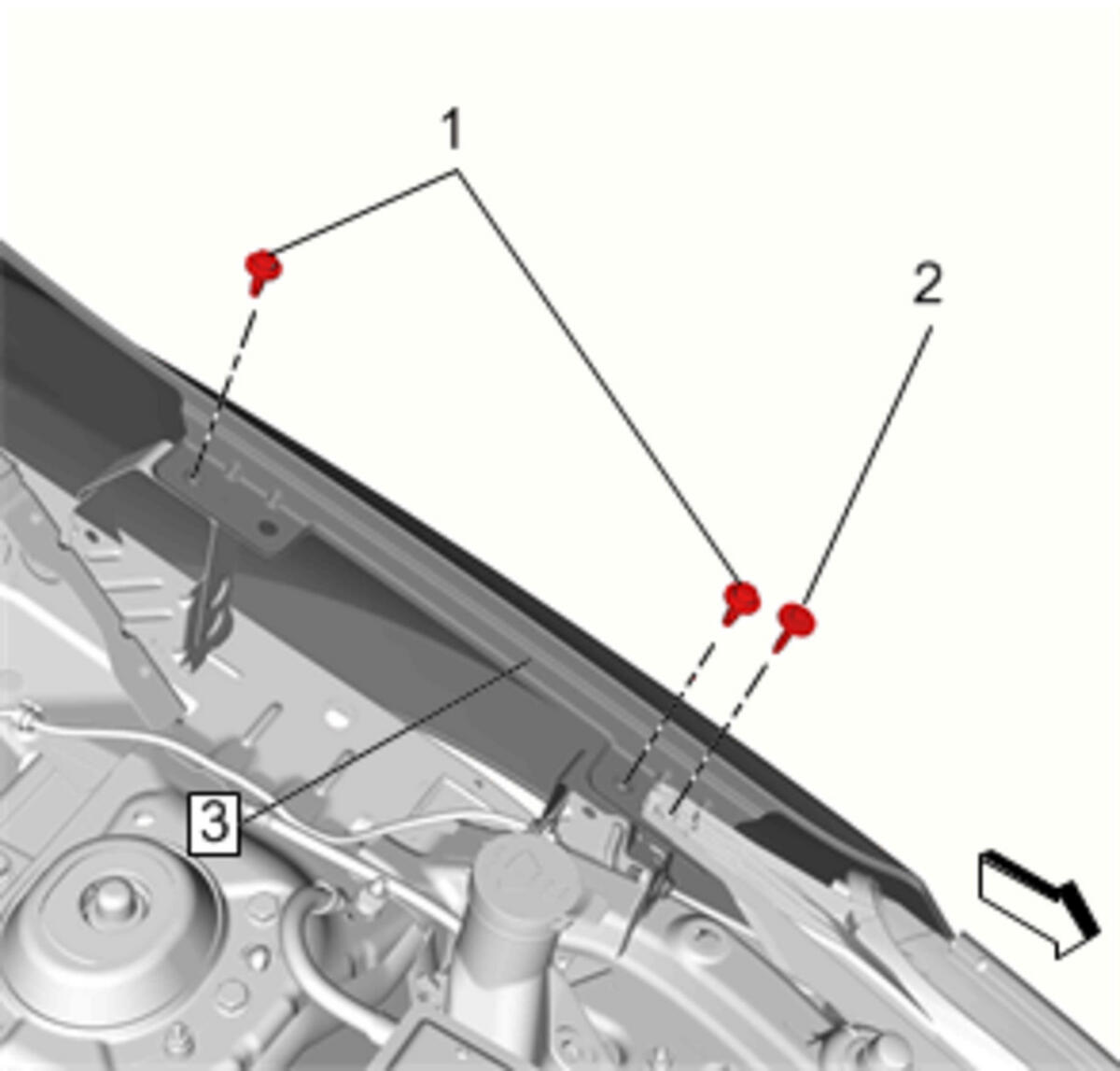

Fig 1: Front Fender And Headlamp Bolt
GM4570208Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Fender (3).
  2. Install Headlamp Bolt (2) - Headlamp Replacement (Chevrolet)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install Front Fender Bolt (1) and tighten [2x] 9 N.m (80 lb in)

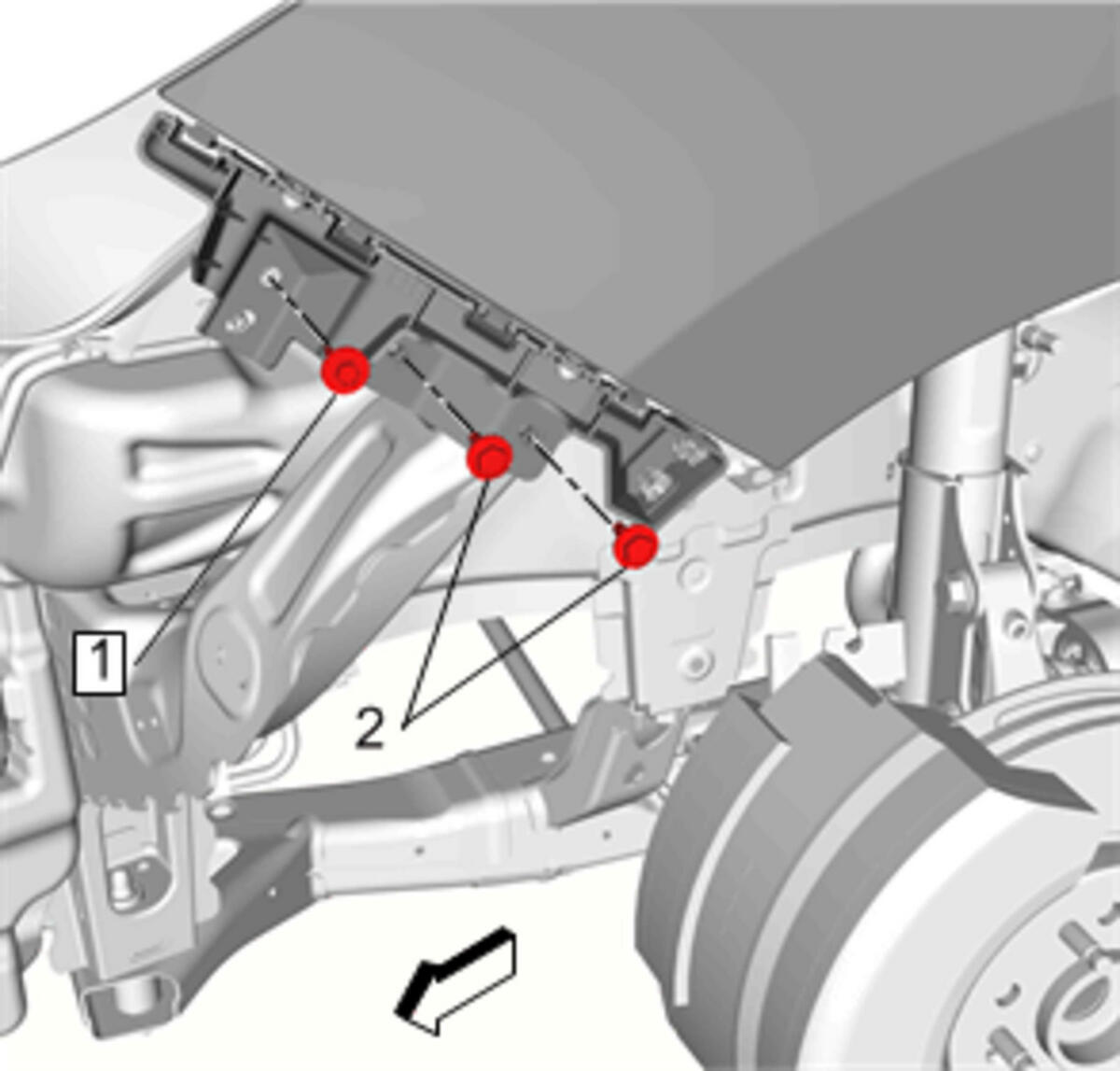

    4. Fig 2: Headlamp Bolt And Front Fender Bolt
    GM4570203Courtesy of GENERAL MOTORS COMPANY
  4. Install Headlamp Bolt (1) - Headlamp Replacement (Chevrolet)
  5. Install Front Fender Bolt (2) and tighten [2x] 9 N.m (80 lb in)

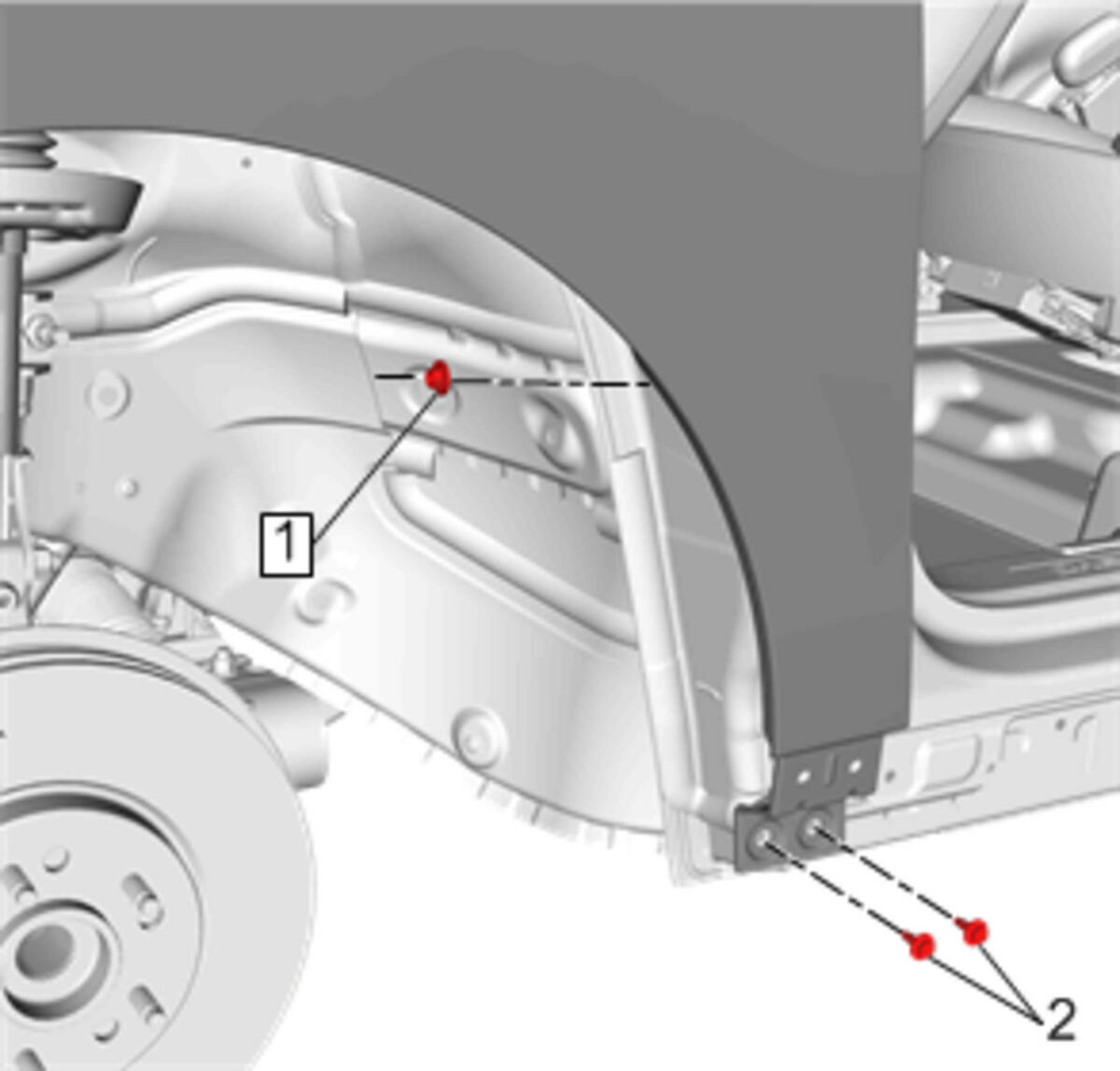

    6. Fig 3: Front Fender Bolt And Nut
    GM4570200Courtesy of GENERAL MOTORS COMPANY
  6. Install Front Fender Nut (1) and tighten 9 N.m (80 lb in)
  7. Install Front Fender Bolt (2) and tighten [2x] 9 N.m (80 lb in)

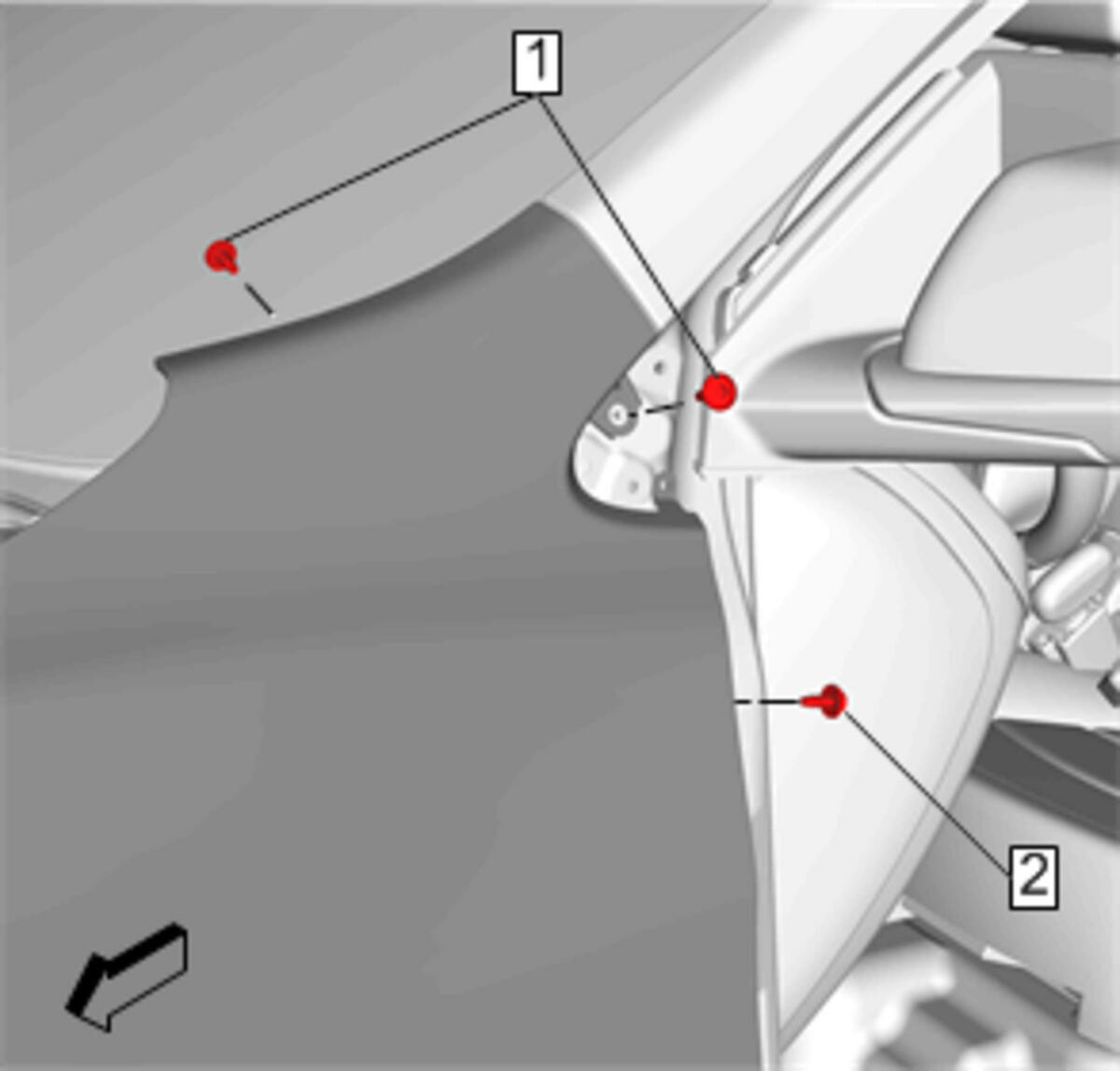

    8. Fig 4: Front Fender Bolt
    GM4570197Courtesy of GENERAL MOTORS COMPANY
  8. Install Front Fender Bolt (1) and tighten [2x] 9 N.m (80 lb in)
  9. Install Front Fender Bolt (2) and tighten 9 N.m (80 lb in)

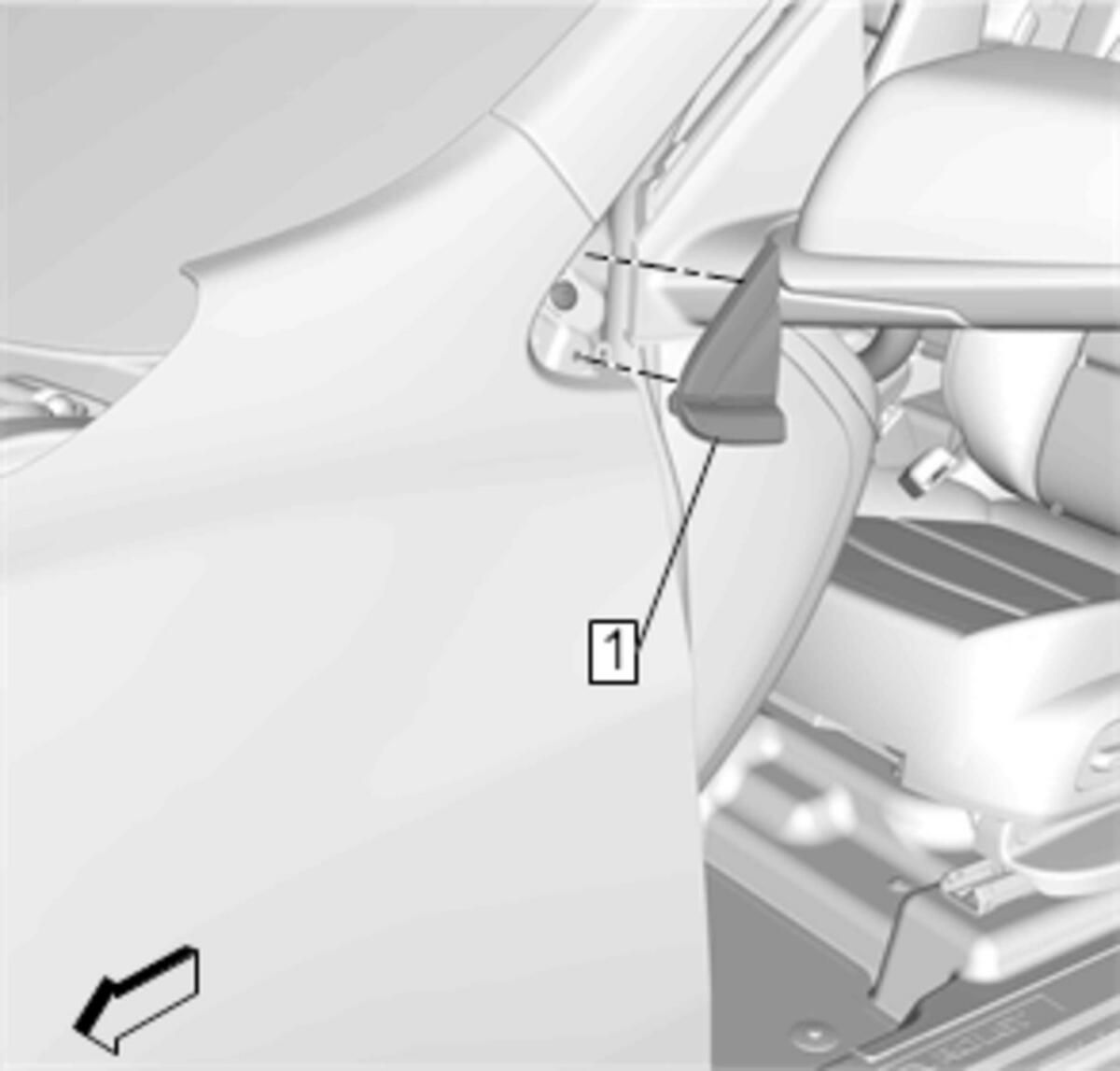

    10. Fig 5: Front Fender Upper Rear Molding
    GM4570192Courtesy of GENERAL MOTORS COMPANY
  10. Install Front Fender Upper Rear Molding (1) - Front Fender Upper Rear Molding Replacement

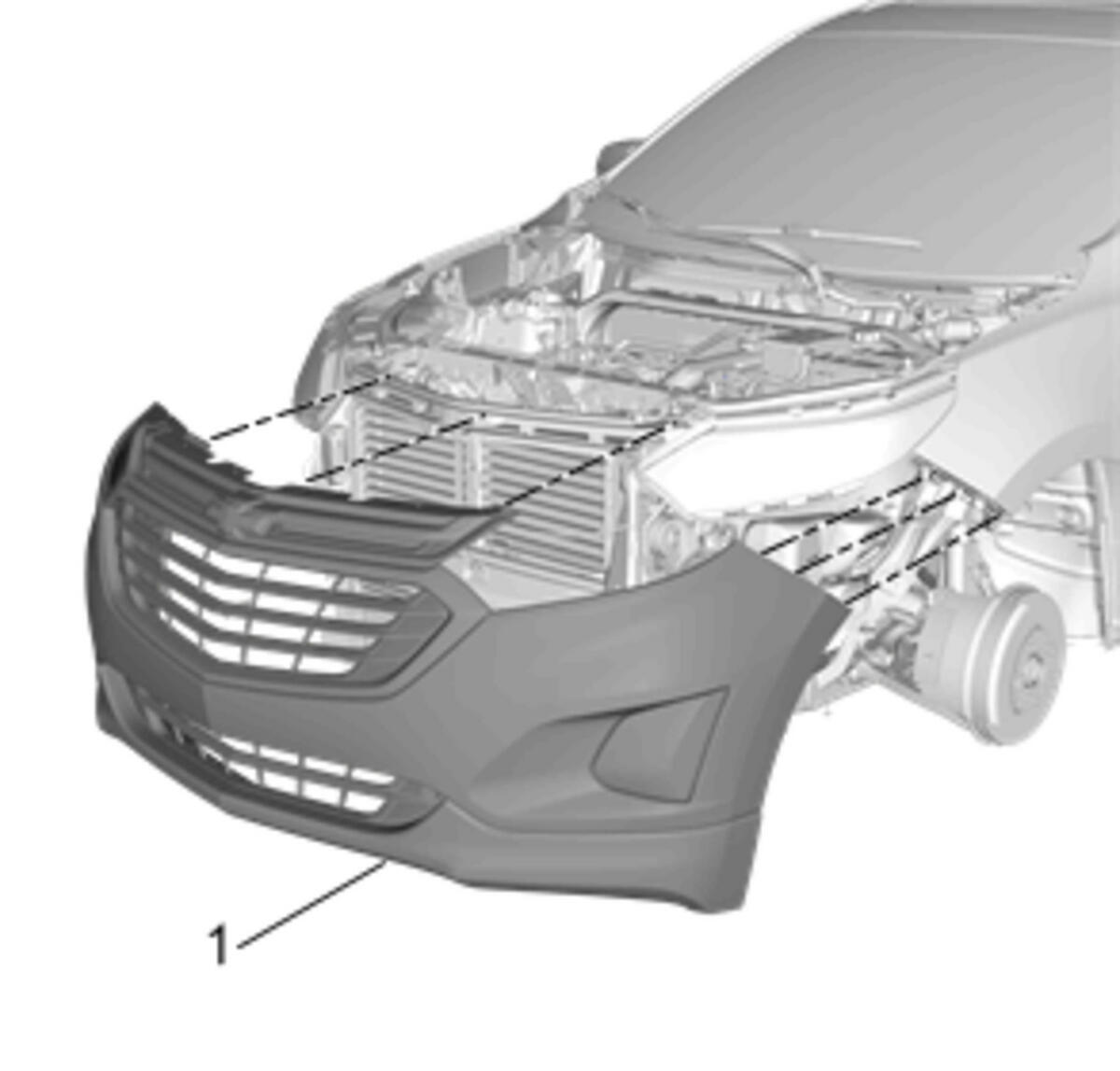

    11. Fig 6: Front Bumper Fascia
    GM4570188Courtesy of GENERAL MOTORS COMPANY
  11. Install Front Bumper Fascia (1) - Front Bumper Fascia Replacement (Equinox)
    12. Fig 7: Front Wheelhouse Liner
    GM4570186Courtesy of GENERAL MOTORS COMPANY
  12. Install Front Wheelhouse Liner - Left Side (1) - Front Wheelhouse Liner Replacement - Left Side (Equinox)
  13. Install Front Wheelhouse Liner- Right Side - Front Wheelhouse Liner Replacement - Right Side (Equinox)
  14. Install Install the right or left front fender insulator - Front Fender Insulator Replacement (Left Side Equinox) Front Fender Insulator Replacement (Right Side Equinox)

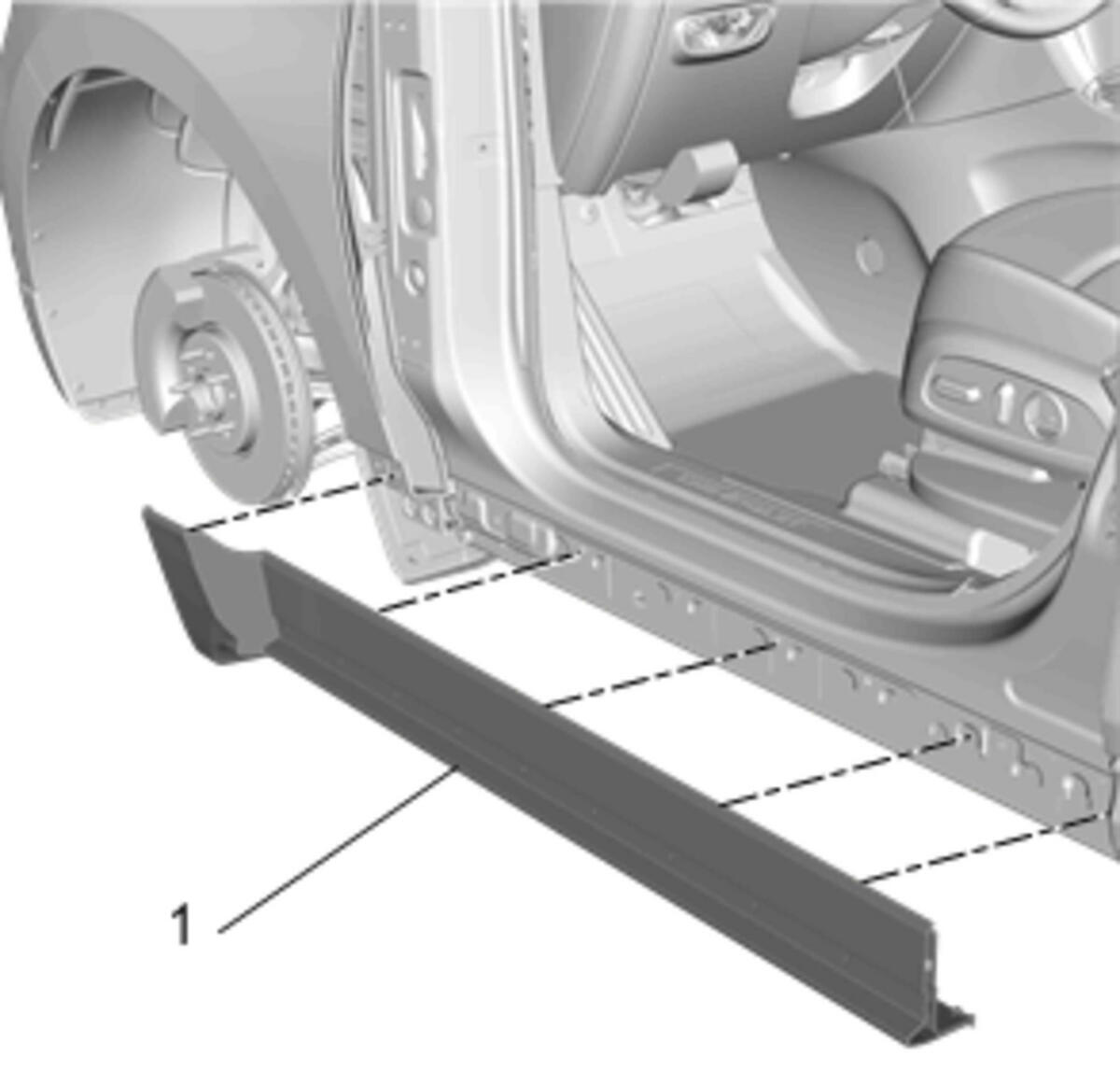

    15. Fig 8: Rocker Panel Molding
    GM4570182Courtesy of GENERAL MOTORS COMPANY
  15. Install Rocker Panel Molding (1) -Rocker Panel Molding Replacement (Equinox)
    16. Fig 9: Air Inlet Grille Panel
    GM4570178Courtesy of GENERAL MOTORS COMPANY
  16. Install Air Inlet Grille Panel (1) - Air Inlet Grille Panel Replacement
