Front Fender Insulator Replacement (Left Side Equinox)

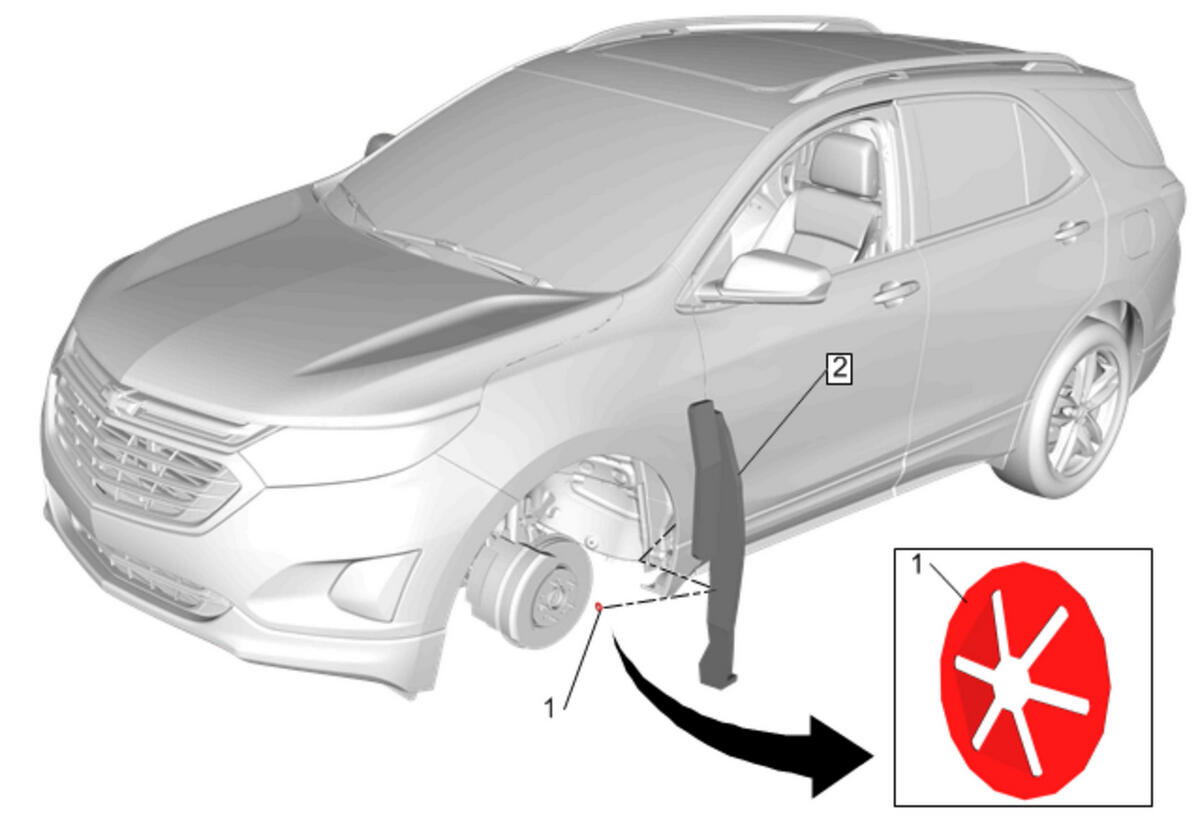

Fig 1: Front Fender Insulator (Left Side Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement - Left Side (Equinox)
1	Front Fender Insulator Retainer
2	Front Fender Insulator-Left Side Procedure Grasp the front fender insulator and pull out and down from the rear of the fender. Firmly press the fender insulator into the rear of the fender until fully seated.

Callout

Component Name

Front Fender Insulator Retainer

Front Fender Insulator-Left Side

Procedure

Grasp the front fender insulator and pull out and down from the rear of the fender.
Firmly press the fender insulator into the rear of the fender until fully seated.
